Maintenance—Every
10
Hours
or
Daily
OUT1739,0000223
–19–05AUG02–1/1

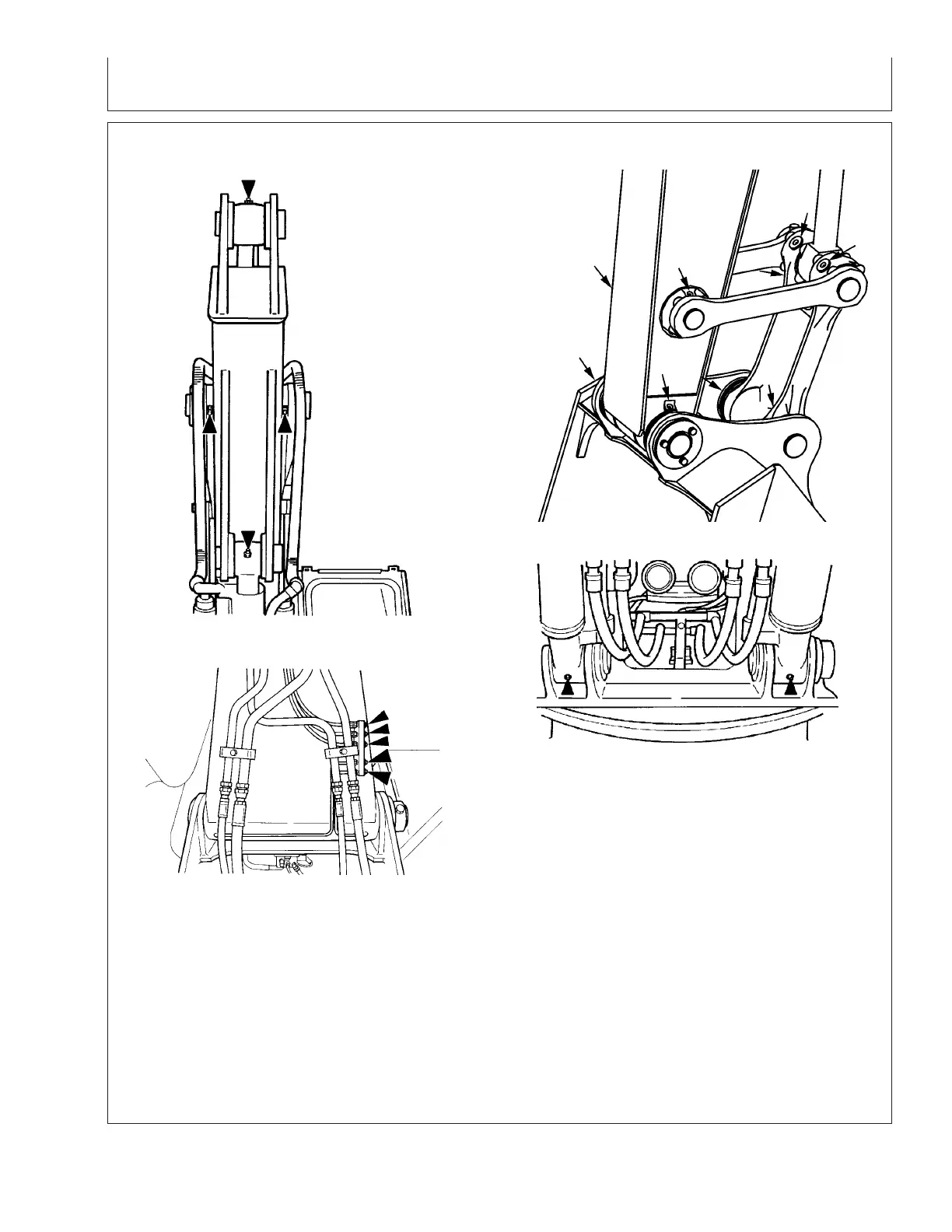

Grease
Working
Tool
Pivots
T134954
–UN–01NOV00
Four
Points
T136448
–UN–18DEC00
Nine
Points
T134956
–UN–01NOV00
Five
Points
T134957
–UN–01NOV00
Two
Points
Grease
working
tool
pivots
(20
points)
until
grease
escapes
from
joints.
Grease
every
4
hours
for
first
20
hours.
Grease
every
10
hours
during
first
30—100
hours
and
when
working
in
mud
and
water.
(See
Section
3-1.)
3-4-5
081407
PN=121
124
126
