Operation—Operating The Machine
OUT1739,00001FE –19–08AUG02–1/2

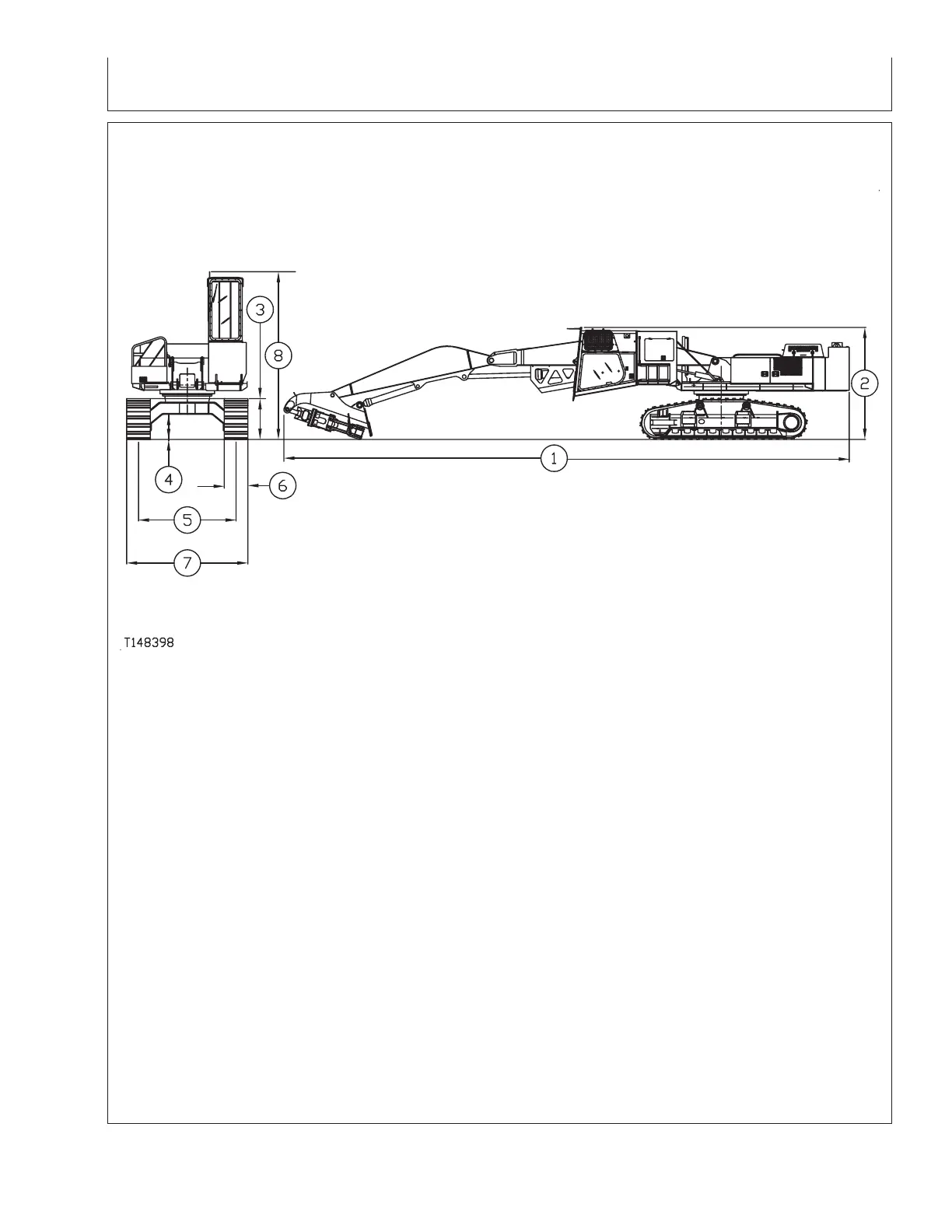

Shipping Dimensions—Zaxis 200LC Forester Live Heel Grapple With 2.92 m (9 ft 7 in.)
Track Width, Rear Entry Cab
T148398 –UN–21NOV01
Zaxis 200LC Forester Live Heel Grapple
1—Overall Length 3—Track Height 5—Sprocket Center To 7—Undercarriage Width
2—Cab Height With Cab Tilted 4—Minimum Ground Sprocket Center Width 8—Cab Height Operating
For Transport Clearance 6—Track Shoe Width Position
Item Measurement Specification
1—Machine (with counterweight fuel Overall Length 1372 mm (45 ft)
tank)
2—Cab Height With Cab Tilted For Transport Height 3307 mm (10 ft 10 in.)
Transport
3—Track Height 1079 mm (3 ft 6 in.)
4—Minimum Ground Clearance Height 750 mm (2 ft 5 1/2 in.)
5—Sprocket Center To Sprocket Width 2920 mm (9 ft 7 in.)
Center
6—Track Shoe Width 700 mm (28 in.)
2-2-26 081407
PN=79
Continued on next page
