Miscellaneous—Specifications
OUT1739,000025F –19–07AUG02–1/2

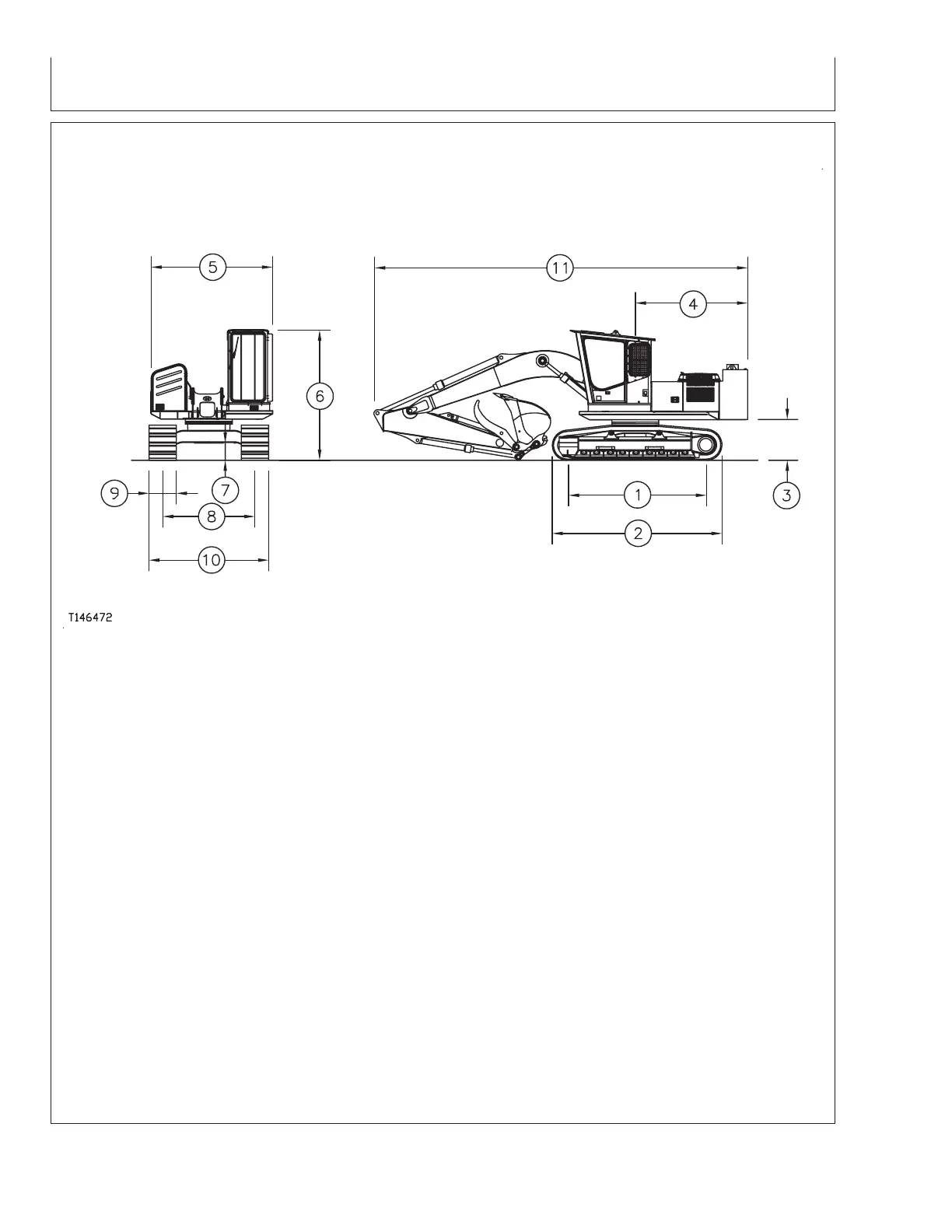

Zaxis 200LC Forester Road Builder—Machine Specifications
T146472 –UN–21NOV01
1—Sprocket Center To Idler 4—Rear End Swing Radius 8—Center of Sprocket To 10—Undercarriage Width
Center 5—Overall Width Center Of Sprocket 11—Overall Length
2—Undercarriage Length 6—Cab Height 9—Track Shoe Width
3—Counterweight Clearance 7—Minimum Ground
Clearance
NOTE: Specifications and design subject to change
without notice. Wherever applicable,
specifications are in accordance with PCSA
and SAE standards. Except where otherwise
noted these specifications are based on a
machine equipped with 700 mm (28 in.) shoes,
full counterweight fuel tank, with standard
undercarriage, 2.91 m (9 ft 7 in.) arm, 79 kg
(175 lb) operator and standard equipment.
Item Measurement Specification
1—Sprocket Center To Idler Center Distance 3660 mm (12 ft 0 in.)
2—Undercarriage Length 4460 mm (14 ft 8 in.)
3—Counterweight Clearance Distance 1056 mm (3 ft 6 in.)
4—Rear End Swing Radius Distance 2910 mm (9 ft 6 in.)
5—Overall Width (excluding back Distance 3209 mm (10 ft 6 in.)
mirrors)
4-6-5 081407
PN=204
Continued on next page
