Operation—Operating The Machine
OUT1739,0000202 –19–07AUG02–1/1

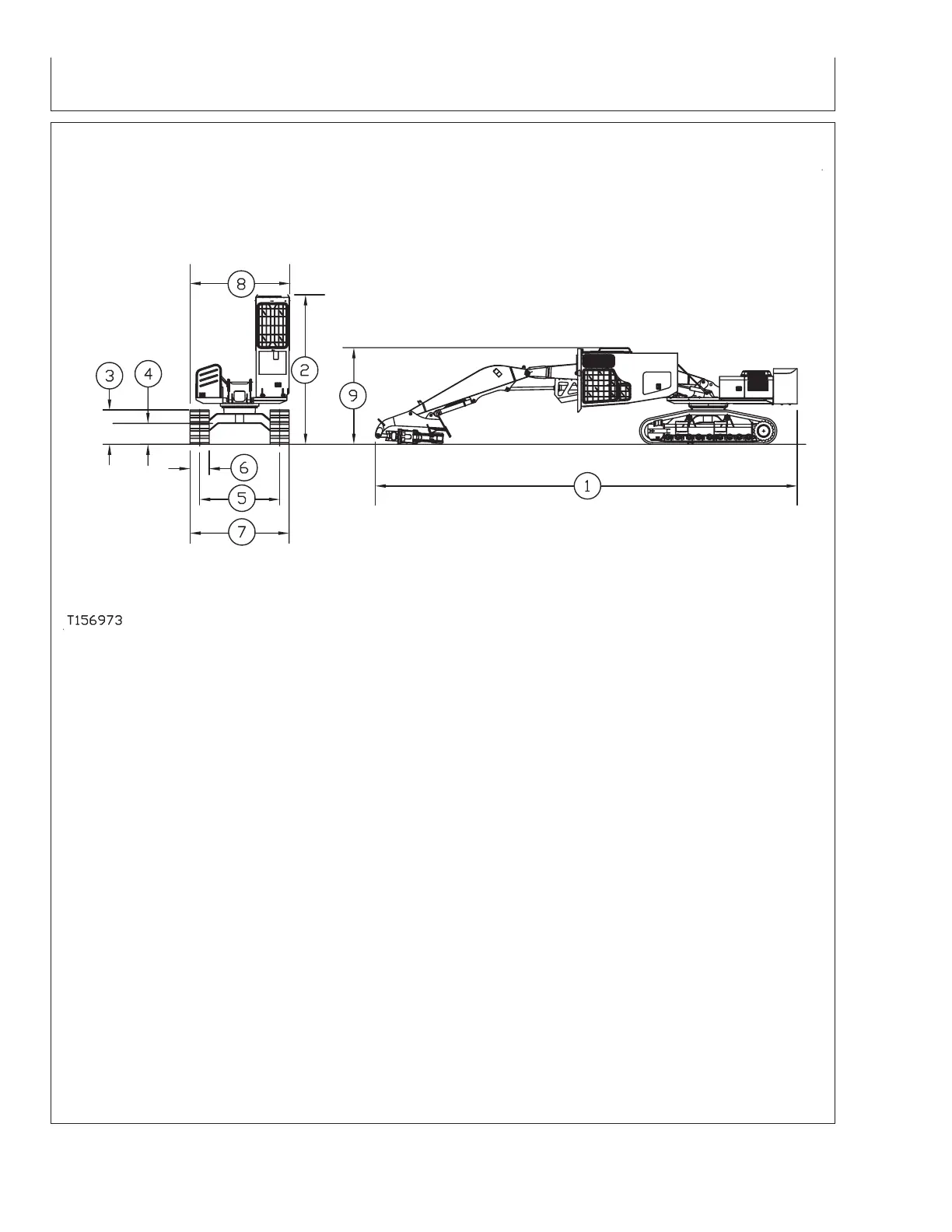

Shipping Dimensions—Zaxis 250 Forester Live Heel Grapple, Rear Entry Cab
T156973 –UN–02AUG02
Zaxis 250 Forester Live Heel Grapple
Item Measurement Specification
1—Overall Length Overall Length 15409 mm (50 ft 7 in.)
2—Maximum Cab Height (48 in. Riser) 4955 mm (16 ft 3 in.)
(72 in. Riser) 5455 mm (17 ft 11 in.)
3—Track Height Height 1250 mm (4 ft 1 in.)
4—Minimum Ground Clearance Height 737 mm (29 in.)
5—Sprocket Center To Sprocket Width 2924 mm (9 ft 7 in.)
Center Width
6—Track Shoe Width Width 700 mm (28 in.)
7—Undercarriage Width Width 3624 mm (11 ft 11 in.)
8—Overall Machine Width Width 3650 mm (12 ft.)
9—Cab Transport Height Height 3524 mm (11 ft 7 in.)
2-2-33 081407
