Miscellaneous—Specifications
OUT1739,0000262 –19–07AUG02–1/2

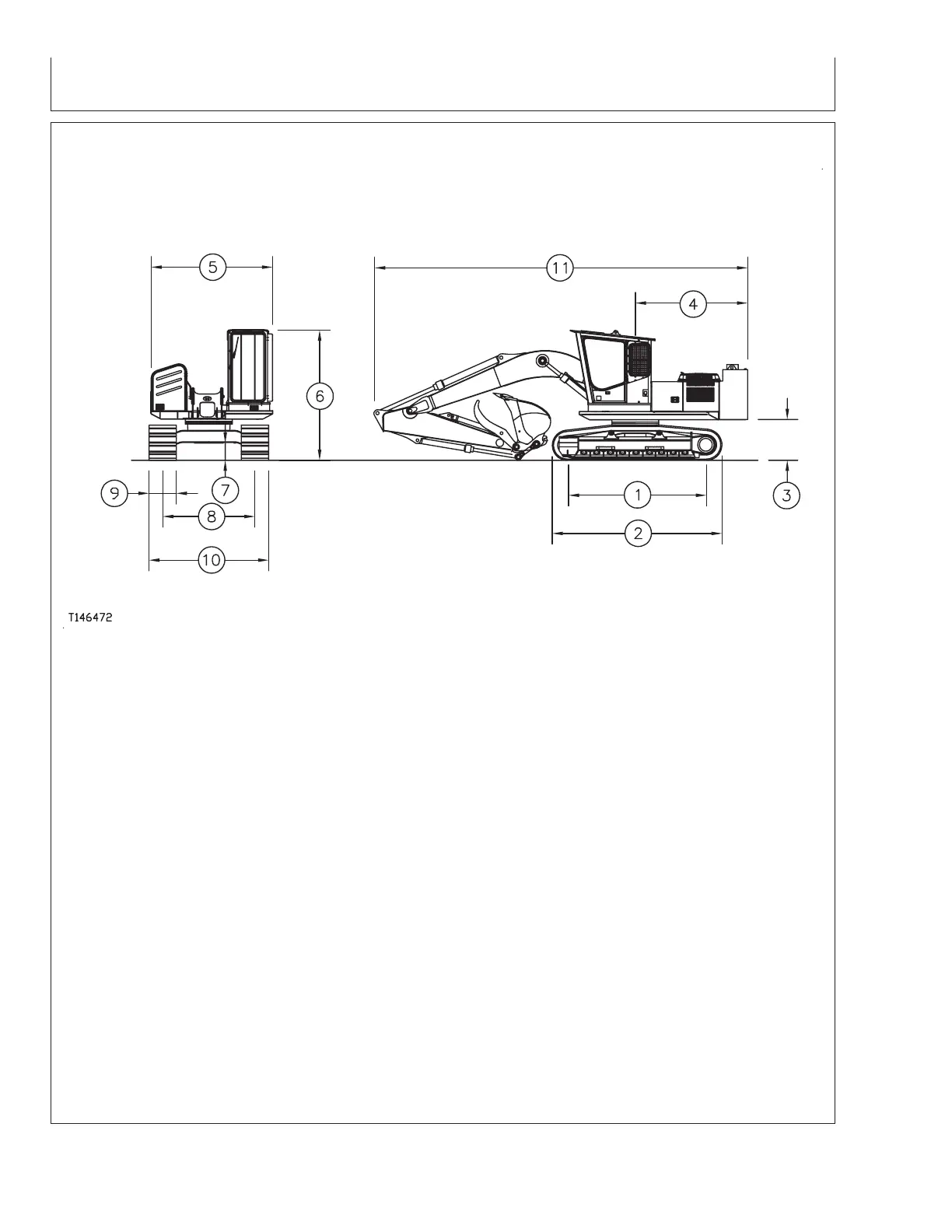

Zaxis 250 Forester Road Builder—Machine Specifications
T146472 –UN–21NOV01
1—Sprocket Center To Idler 4—Rear End Swing Radius 8—Center of Sprocket To 10—Undercarriage Width
Center 5—Overall Width Center Of Sprocket 11—Overall Length
2—Undercarriage Length 6—Cab Height 9—Track Shoe Width
3—Counterweight Clearance 7—Minimum Ground
Clearance
Item Measurement Specification
1—Sprocket Center To Idler Center Distance 3840 mm (12 ft 7 in.)
4050 mm (13 ft 3 in.) High Drawbar
2—Undercarriage Length 4645 mm (15 ft 5 in.)
5018 mm (16 ft 6 in.) High Drawbar
3—Counterweight Clearance Distance 1090 mm (3 ft 7 in.)
1448 mm (4 ft 9 in.) High Drawbar
4—Rear End Swing Radius Distance 3165 mm (10 ft 5 in.)
3165 mm (10 ft 5 in.) High Drawbar
5—Overall Width (excluding back Distance 3429 mm (11 ft 3 in.)
mirrors) 3429 mm (11 ft 3 in.) High Drawbar
