Miscellaneous—Machine
TX14740,0001FA4 –19–10DEC02–5/5
T158169B –UN–30JUL02

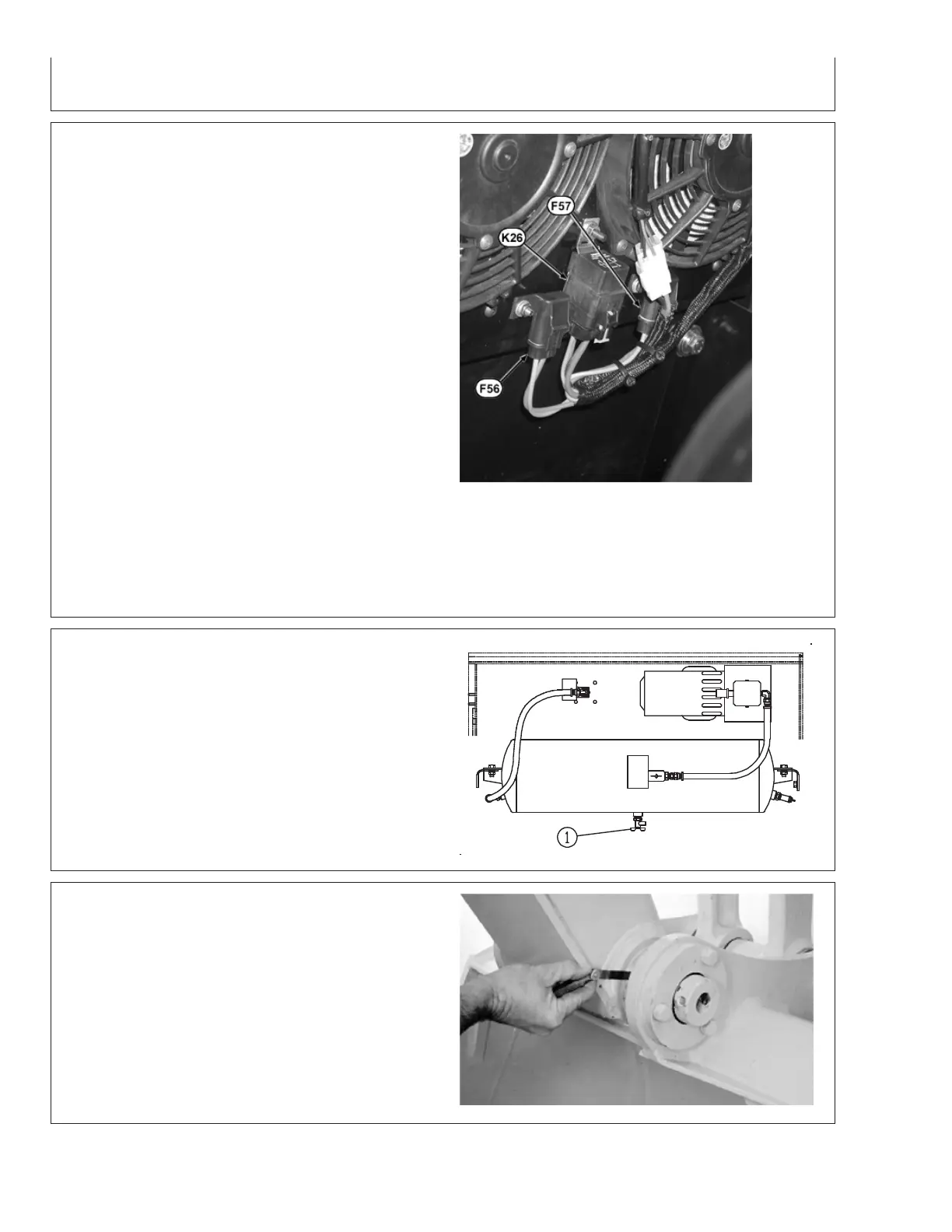

Power Condenser
K26—Condenser Relay
F56—Power Condenser 10 Amp Fuse
F57—Power Condenser 10 Amp Fuse
Fuses F56 and F57 are located on the power condenser
panel. The power condenser panel is located behind the
cab
TX14740,000001A –19–03FEB03–1/1
Drain Air Compressor Accumulator
T164840 –UN–31JAN03
1—Drain Valve
Approximately once a week, open drain valve (1) to drain
condensation from accumulator.
Close drain valve.
OUT1739,000024E –19–16JUN06–1/3
Adjusting Bucket to Arm Joint
T95775 –UN–10NOV88
Your machine has a bucket adjustment system to take up
play. When play increases, remove shims as follows:
1. Slide O-ring out of way.
4-1-12 081407
PN=168
Continued on next page
