BATTERY METER
Main: 25.12V 98%
4.18 4.18 4.18V
4.18 4.18 4.19V
H: 4.192 L: 4.183V

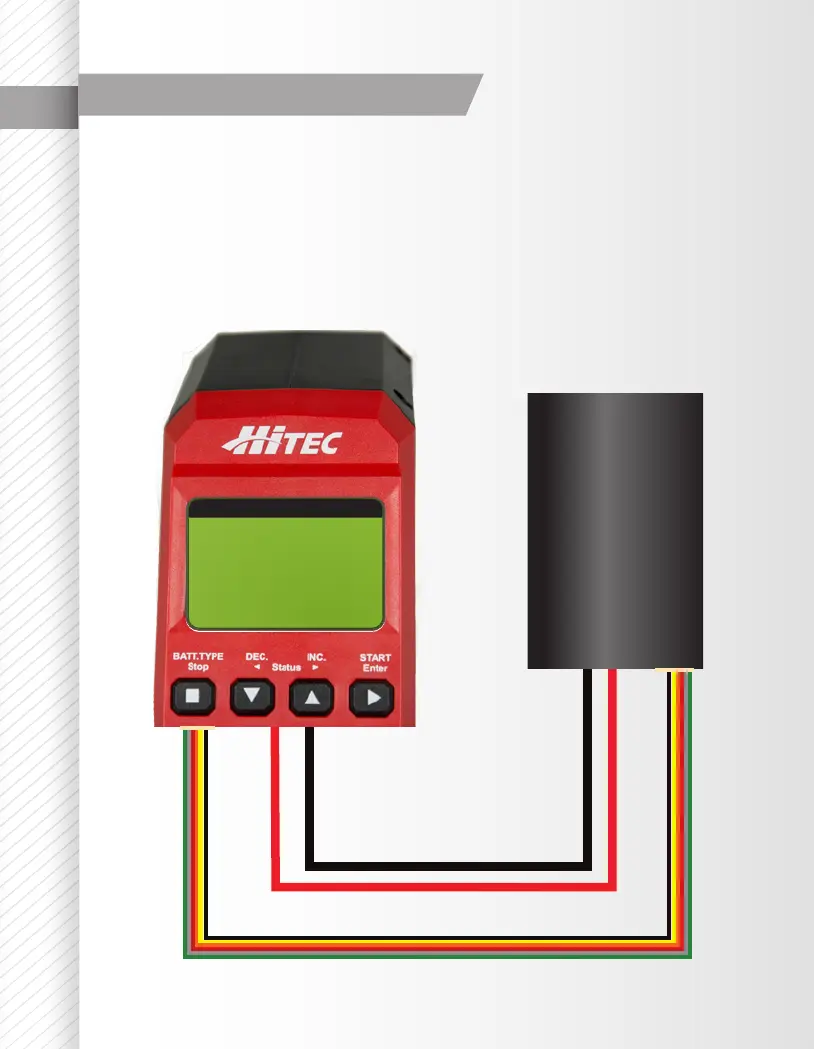

This diagram shows the
correct way to connect your
battery to check the voltage.
Battery Meter
The user can check the battery’s total voltage, the highest voltage, the
lowest voltage and each cell’s voltage. Connect the battery via the charger’s
main battery lead to battery socket and balance wires to the balance socket
as shown below.
The display indicates the current Main Voltage, Percentage of Charge,
Individual Cell Voltage, and the Highest and Lowest voltages of the packs
cells.
