OM 2012
C. Cold Weather Engine Starting Procedures
.
A cold weather starting-aid kit (Fig. 4) b provided to assist in starting t,he engine’
at temperatures below 50 deg.F. Tostart the engine, using the starting aid,.pro-
teed as follows:
(1) Position switches and controls as instructed in step (1) thraugh (4), paragraph
.
B, Normal Engine Starting Procedures, above.
(2) Prepare starting aid for use.
The starting aid is shipped in a sad condition
and ‘k not operable until assembled. Assemble as follows:
WAKNlNG: STARTING FLUID IS EXTREMELY FNMMABLE. IT lS
UNDER PRESSURE. USE CAUTION WHEN HANDLING.
AVOID CONTACT WlTH SKIN AND AVOID BREATHING
I
VAPOR.
.
7.
Clamp nut
2.
Fluid cylinder
3.
Cylinder cap
4.
Plug
5.
Valve
6.
Control cable

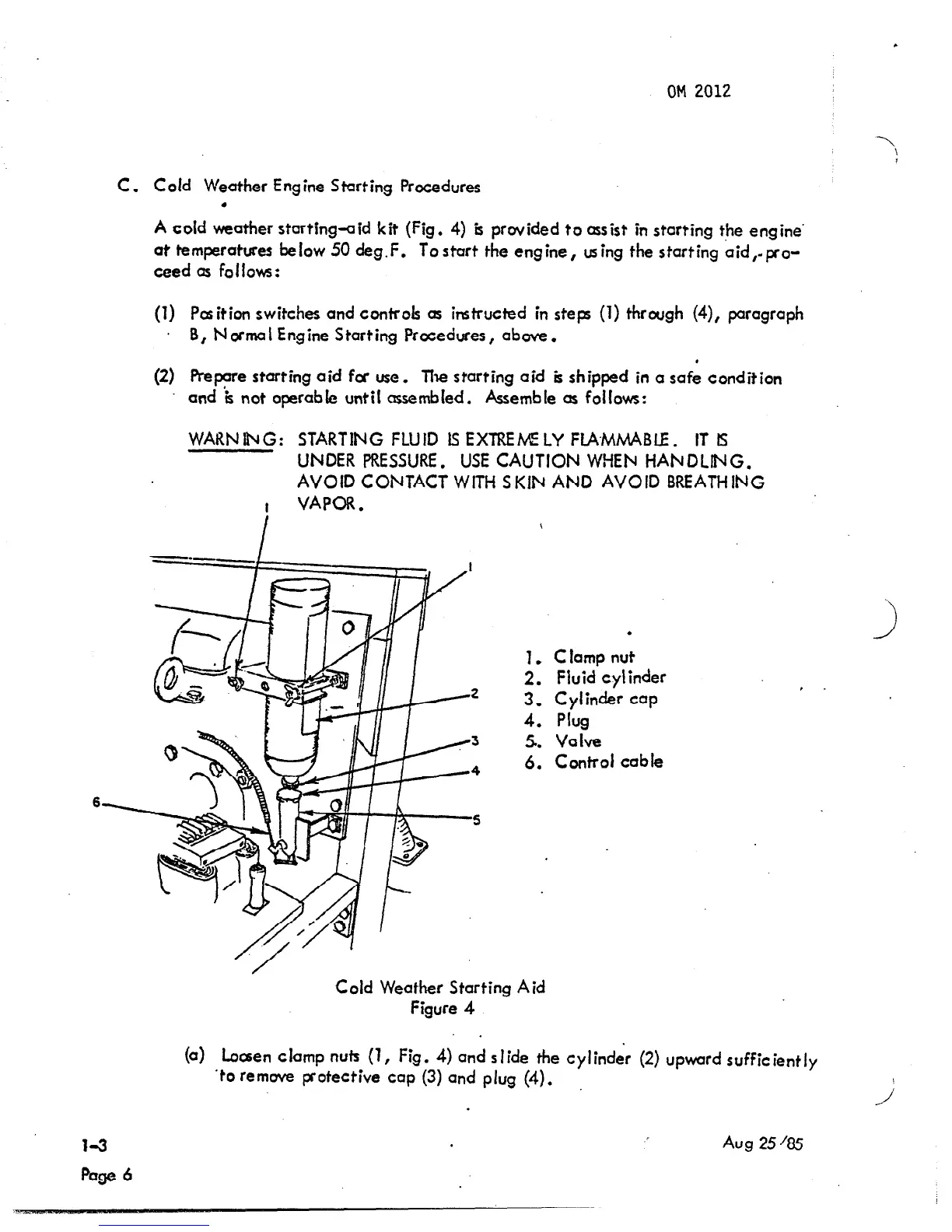

Cold Weather Starting Aid
Figure 4
.
(a) Lo-en clamp nuts (7, Fig. 4) and slide the cylinder (2) upward sufficiently
‘to remove protective cap (3) and plug (4).
i
l-3
.
Aug 25’85
