OM 2012
112-v DC a- 35-V DC
ransfarmer-Rectifier

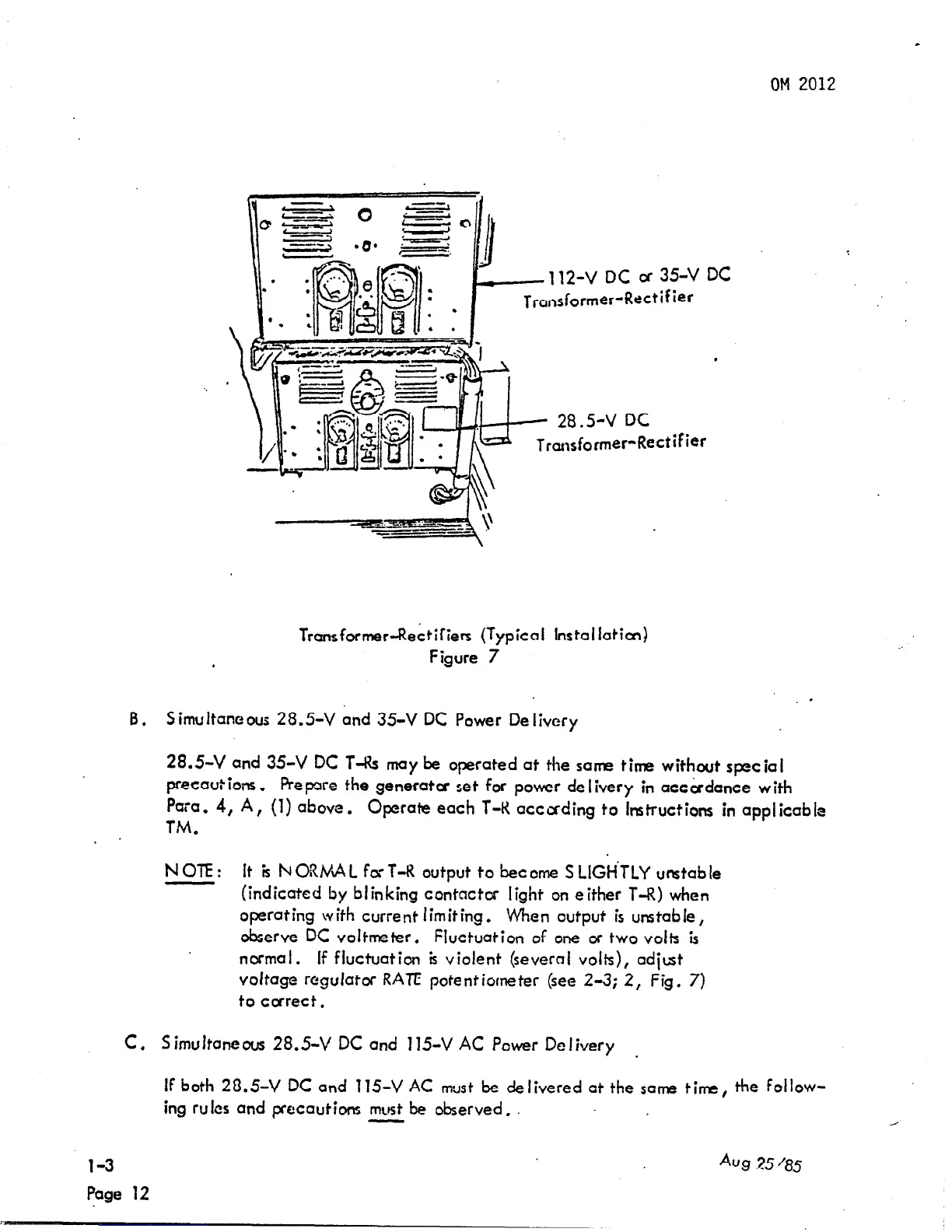

Transfarmer-Re&ifiers (Typical Inrtallatiar)
Figure 7
.
B. Simultaneous 28.5-V and 35-V DC Power Delivery
2 8.5-V and 35-V DC T-KS
may be operated at the same tirrre without special
pcecaut ions .
Prepare the generatcr set for power delivery in accbdance with
Para. 4, A, (1) above.
TM,
Operate each T-K according to Instructions in applicable
NOTE:
-
It is EuORN\Al. for T-K output to become S LIGH’TLY unstable
(indicated by blinking contactcr light on either T-R) when
operating with current limiting. When output is unstable,
observe DC voltmeter.
Fluctuation of one or two volts is
normal. If fluctuation is violent (several volts), adjust
voltage regulator RATE potentiometer (see 2-3; 2, Fig. 7)
to correct.
C , S imu Jtane ous 28.5-V DC and 115-V AC Power De I ivery
If both 28.5-V DC and 115-V AC
must be de Iivered at the some time, the follow-
ing rules and precautions must be observed.
I-3
Page 12
Aug ‘5’85
