Hobart Handler 125 User Manual

OM-947 Page 13
SECTION 5 − INSTALLATION

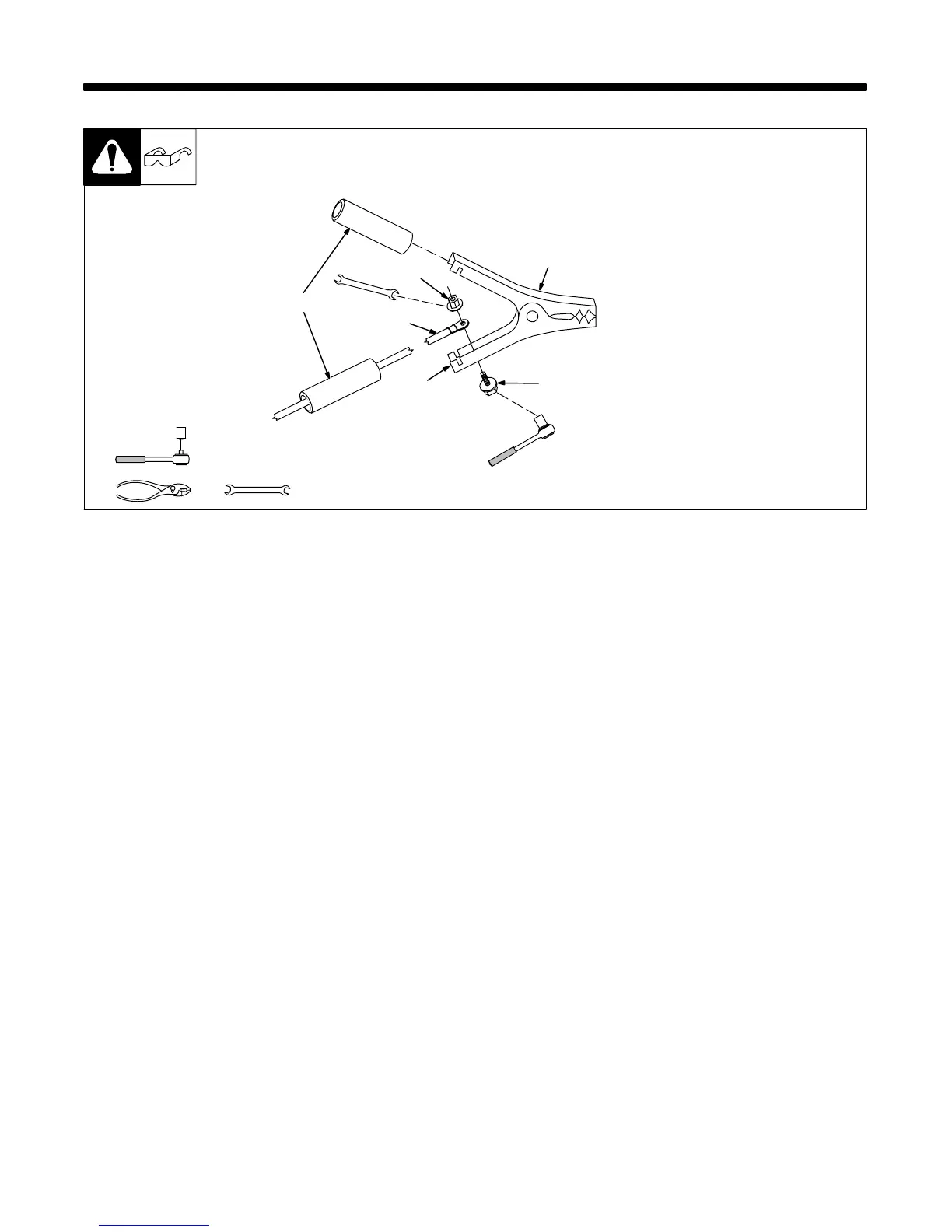

5-1. Installing Work Clamp
1 Nut
2 Work Cable From Unit
3 Work Clamp
4 Screw
5 Work Clamp Tabs
Bend tabs around work cable.
6 Insulator Grip
Slide one insulating grip over work
cable before connecting to clamp.
Slide insulating grips over handles.
Ref. 802 456
. Connection hardware must be tightened with proper tools. Do not just
hand tighten hardware. A loose electrical connection will cause poor
weld performance and excessive heating of the work clamp.
1
2
3
4
5
Tools Needed:
7/16 in.
6
7/16 in.

Hobart Handler 125 Specifications

General

Input Voltage	115V
Amperage Output	25-125A
Duty Cycle	20% @ 90A
Weldable Materials	Steel, Stainless Steel, Aluminum
Weight	57 lbs
Processes	MIG (GMAW)
Maximum Material Thickness	3/16 inch
Wire Size	0.023-0.035 inch
