Hobart Handler 125 User Manual

OM-947 Page 27

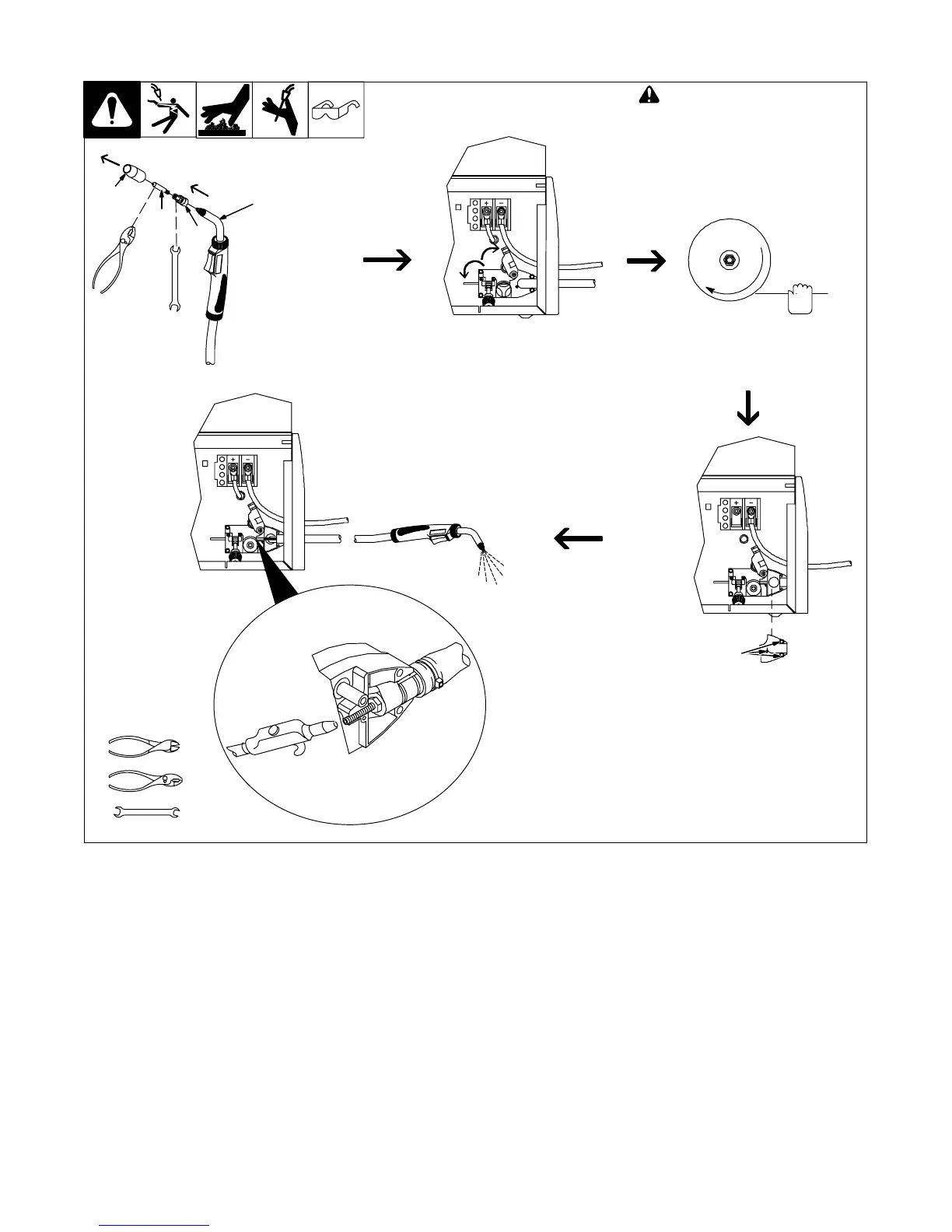

7-6. Cleaning Gun Liner
804 241-A / 803 838-A
! Turn Off welding power source.
1 Nozzle
2 Contact Tip
3 Adapter
Head
Tube
Tools Needed:
8 mm
Lay gun cable out straight,
and blow out liner.
Remove nozzle. Cut off wire
at contact tip, and remove
contact tip and tip adapter.
. Thread wire according to
Section 5-9.
Reassemble drive cover
and gun in reverse order
from taking it apart.
Open pressure assembly. Retract
wire from liner onto spool.
. Hold wire tightly to keep it
from unraveling. Secure
end of wire at spool.
Remove screws (3) from
cover, and remove cover
from wire drive assembly.
8 mm
1
2
3

Hobart Handler 125 Specifications

General

Input Voltage	115V
Amperage Output	25-125A
Duty Cycle	20% @ 90A
Weldable Materials	Steel, Stainless Steel, Aluminum
Weight	57 lbs
Processes	MIG (GMAW)
Maximum Material Thickness	3/16 inch
Wire Size	0.023-0.035 inch
