10

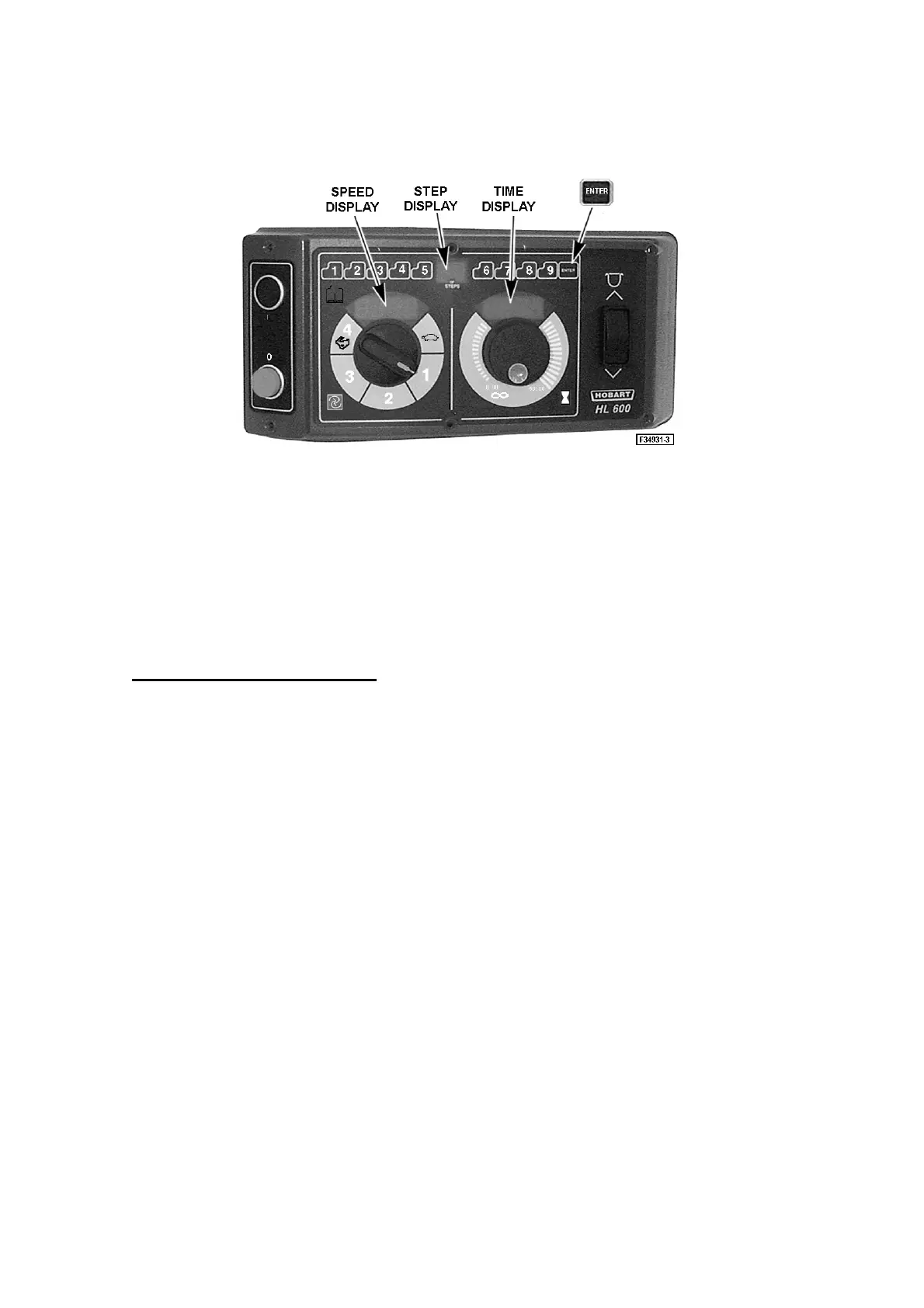

PROGRAMMABLE RECIPE TIMER (OPTIONAL)
Timer Specifications
• Maximum number of programmable recipes: 9 recipes.
• Maximum number of steps allowed for each recipe: 6 steps.
• Maximum time allowed for each step in a recipe: 30 minutes.
For additional information on use of the programmable recipe timer, refer to pages
14 through 19.
6.3 BOWL PLACEMENT.
The bowl is heavy and must be correctly handled and lifted correctly to avoid personal
injury. If the total weight of the bowl and ingredient weights more than 25 kg a bowl truck
must be used. Refer to the recommended spare parts Section 13, page 37 for the bowl
truck part number. Table 1 (page 30) details the weights of bowls and agitators.
The bowl must be installed before the agitator is installed.
To install the bowl, fully lower the bowl support. Position the bowl so the alignment pins
on the left side of the bowl support fit in the holes in the bowl. Swing the bowl into the
locked position on bowl support.
