Hobart STICKMATE LX User Manual

OM-316 Page 12
Return To Table Of Contents
B. For AC Models
193 508 / 193 513 / 193 511

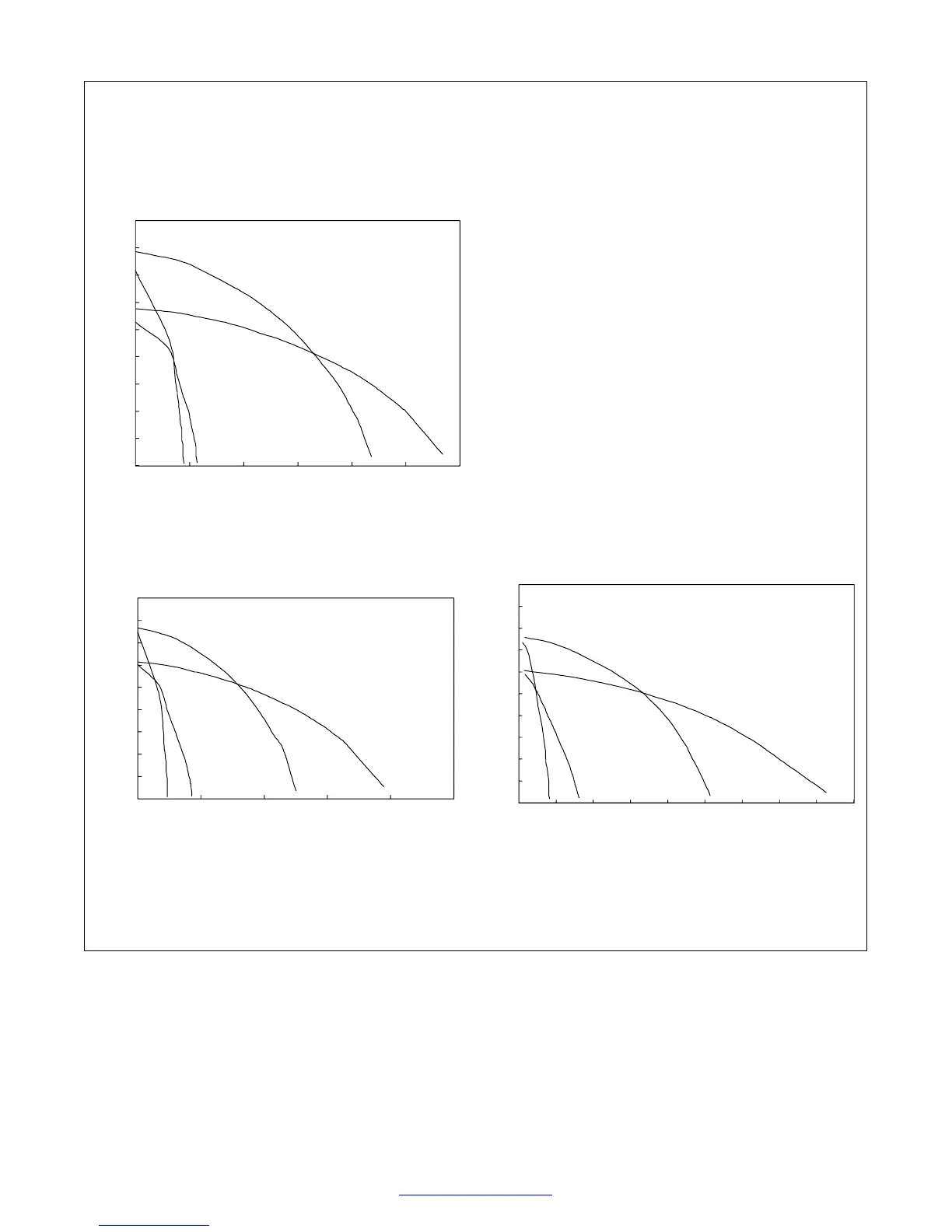

The volt-ampere curves show the
minimum and maximum voltage
and amperage output capabilities.
Curves of other settings fall be-
tween the curves shown.
A. For 115/230 And 230 Volt Models
(225 Amperes)
B. For 220 Volt Model
(300 Amperes)
C. For 230/400 Volt Model
(300 Amperes)
0
10
20
30
40
50
60
70
80
90
0 100 200 300 400 500
AC Amperes
AC Volts
0
10
20
30
40
50
60
70
80
90
100
0 50 100 150 200 250 300 350 400 450
AC Amperes
AC Volts
A=LOW RANGE
B=HIGH RANGE
A
A
B
B
0
10
20
30
40
50
60
70
80
90
0 50 100 150 200 250 300
AC Amperes
AC Volts
A=LOW RANGE
B=HIGH RANGE
A
A
BB

Hobart STICKMATE LX Specifications

General

Input Voltage	230 V
Input Phase	Single Phase
Input Frequency	50/60 Hz
Welding Process	Stick (SMAW)
Type	Stick Welder
Electrode Size Range	1/16 in to 5/32 in
