Hobart STICKMATE LX User Manual

OM-316 Page 19
Return To Table Of Contents

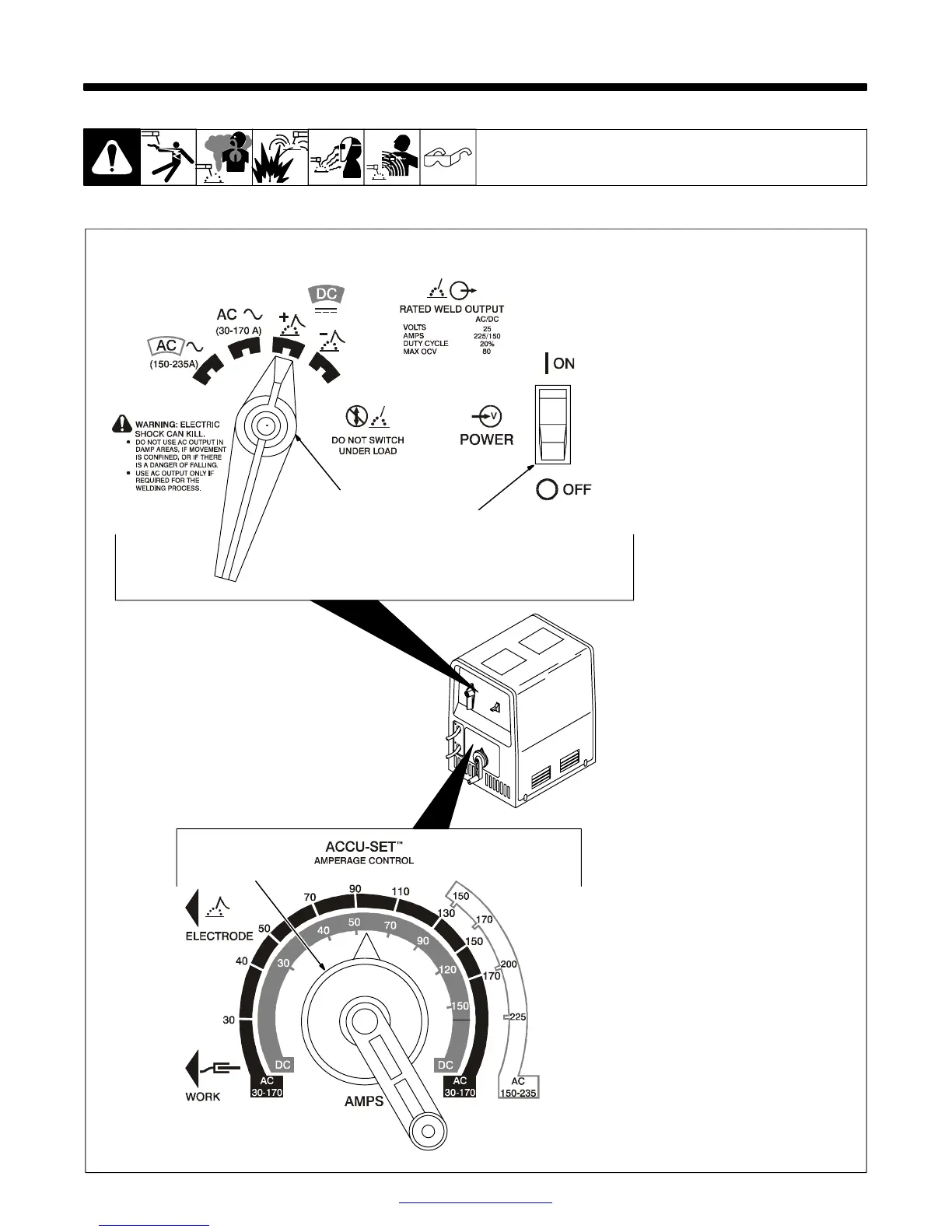

SECTION 4 − OPERATION
4-1. Controls
A. Controls For AC/DC Models
Ref. ST-190 600-B / ST-802 105-C
1 Amperage Adjustment Control
2 Power Switch
3 Mode Switch
For DC Weld Output
Use mode switch to select polarity
of dc output, Electrode Posi-
tive/DCEP (+),or Electrode Nega-
tive/DCEN (−).
For AC Weld Output
Use mode switch to select ac low
range or high range output.
3
1
2

Hobart STICKMATE LX Specifications

General

Input Voltage	230 V
Input Phase	Single Phase
Input Frequency	50/60 Hz
Welding Process	Stick (SMAW)
Type	Stick Welder
Electrode Size Range	1/16 in to 5/32 in
