Hobart STICKMATE LX User Manual

OM-316 Page 20
Return To Table Of Contents

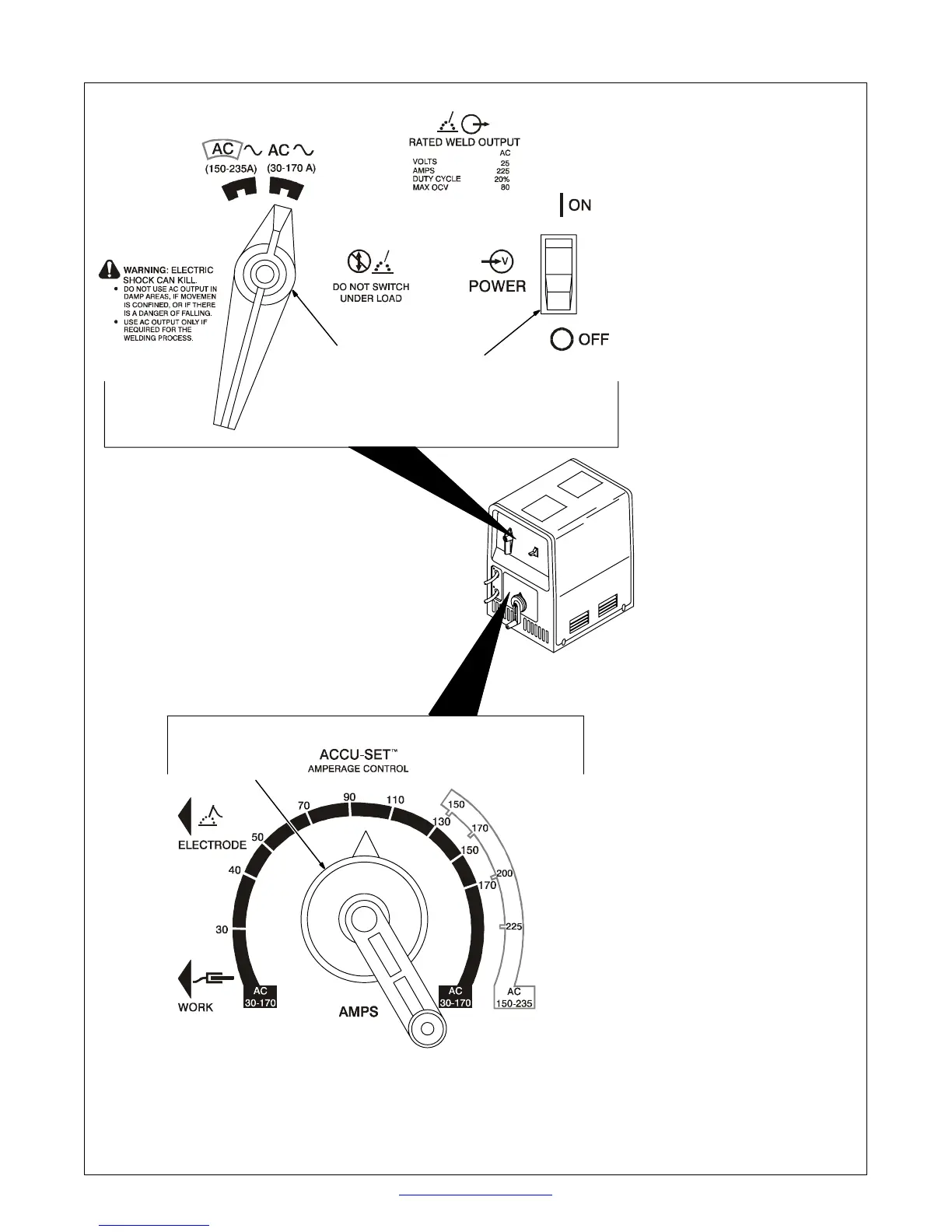

B. Controls For AC Models
Ref. ST-190 599-A / ST-802 105-C
1 Amperage Adjustment Control
2 Power Switch
3 Mode Switch
Use mode switch to select ac low
range or high range output.
3
1
2

Hobart STICKMATE LX Specifications

General

Input Voltage	230 V
Input Phase	Single Phase
Input Frequency	50/60 Hz
Welding Process	Stick (SMAW)
Type	Stick Welder
Electrode Size Range	1/16 in to 5/32 in
