How the device works 23

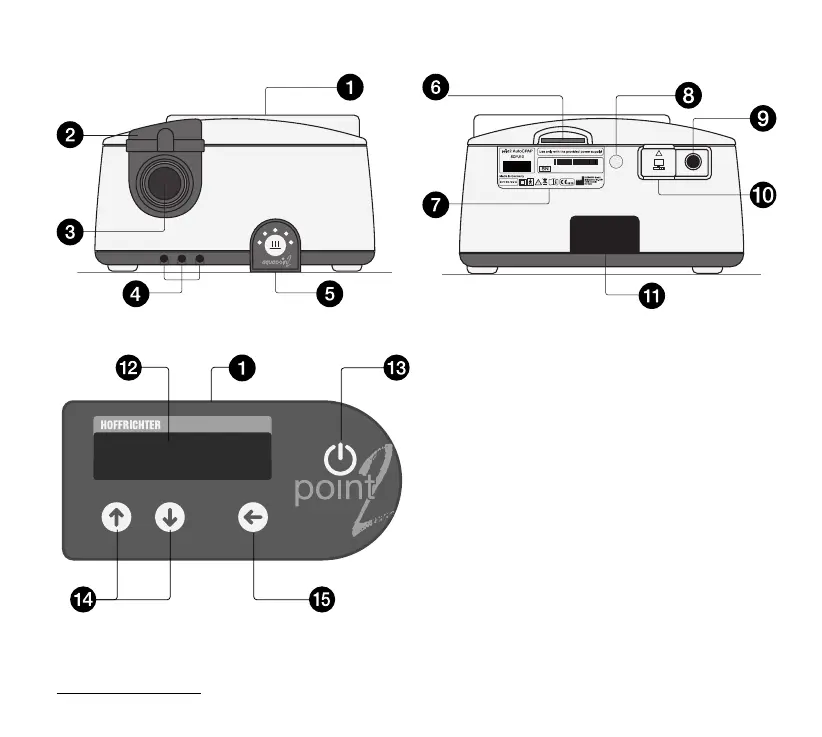

DEVICE DESCRIPTION
1 Control panel and display
2 Humidifi er lock
3 Therapy tube connection
4 Contact socket for humidifi er
1
5 Control panel for humidifi er
1
6 SD card slot
7 Rating plate
8 Air inlet for baro sensor
9 DC power connection
10 RS232 interface
11
Filter or connection port for the
fi ltersystempoint 2
12 Display
13 ON/OFF key
14 Selection keys
15 Enter key
1 optional equipment variant for use with humidifi er
