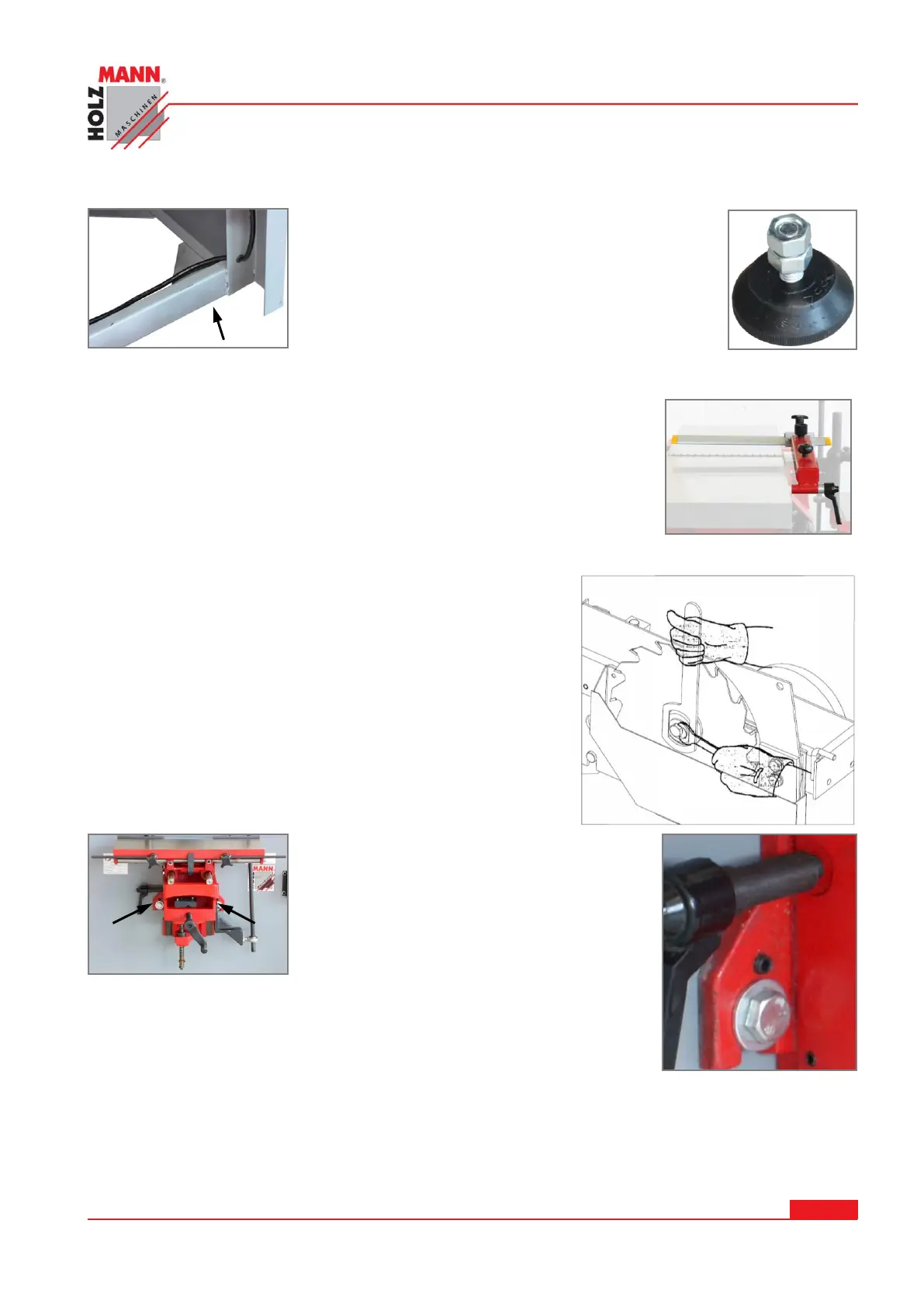

13.2 Assembly
- Set machine on a flat, level surface
- Feet (A) mounted on the base frame
- Align the machine horizontally by adjusting the
leveling feet
13.2.1 Mount planing shafts cover
Planer cover Fit (A) and secure with clamping lever (B)
13.2.2 Assembly / disassembly of the saw blade
 Loosen the screws of the table insert and remove them.
 Adjust the cutting height to the widest possible by Crank
up the saw blade.
 Insert the special key on the flange and turn the screw
out of.
 The blade can be removed and a new one inserted. Instal-
lation is in the reverse order of removal.
ATTENTION: The correct direction of rotation of the saw
blade note!
13.2.3 Mortiser mount (optional)
The surface and thickness planer can be optionally equipped with a mortising.
- Mortiser (A) to the respective holes of the machine position
- Mortising attach with screws and washers
- Before tightening the angle of the table with the adjusting screw (B) can be adjusted!
