17.4 Hardware structure
The aim of this section is to acquaint you with the various circuit boards the alarm system consists of.

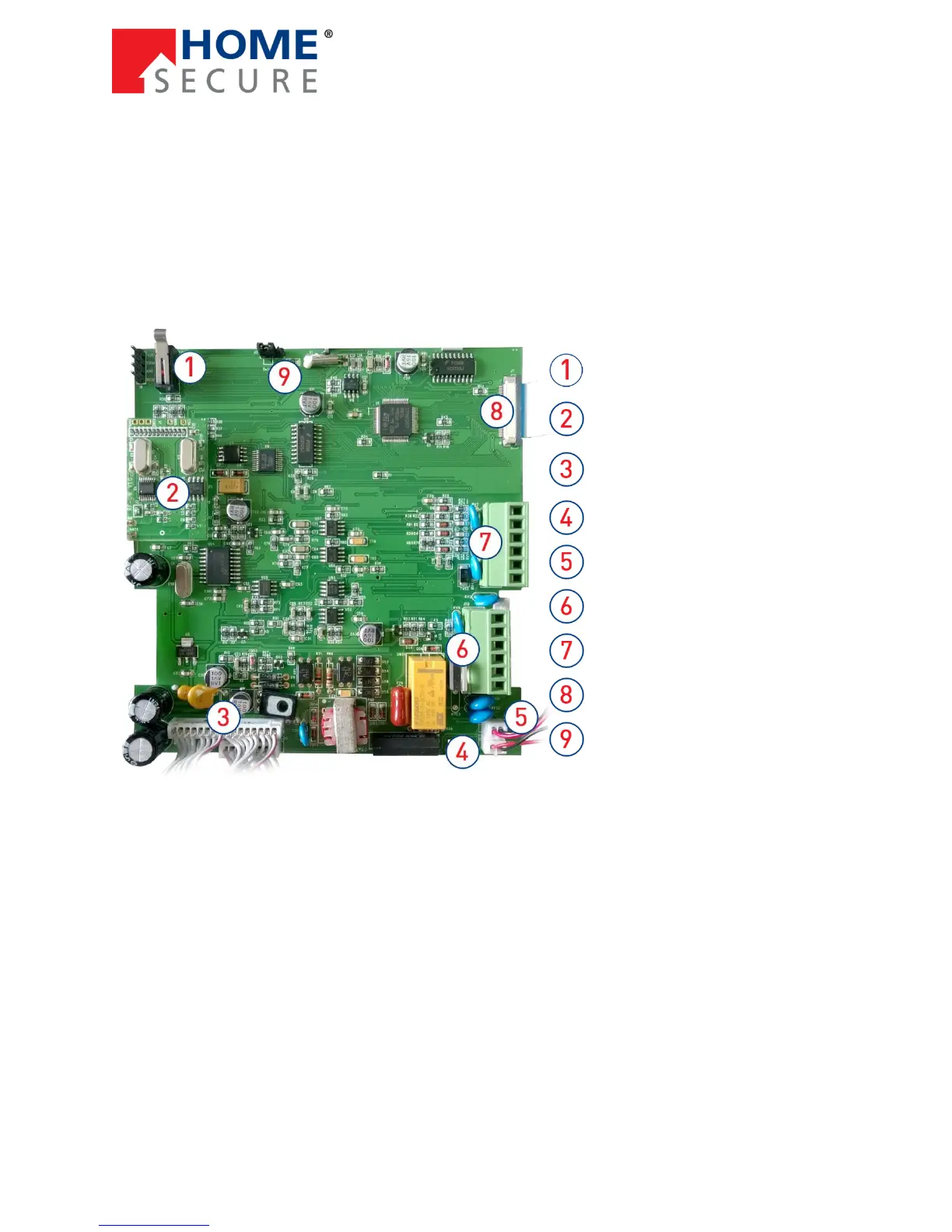

17.4.1 Main Board
The Main Board is the alarm system's “brain”. It’s here all device interfaces are located, such as the
threaded zones, the wired siren, PGM output, AUX power output, external siren and telephone
interface.
Tamper switch.
Wireless transmitter (for wireless
sirens).
Power cable connected to the
power supply board.
Speaker Cable.
Siren Cable.
Wired connections.
Wired connections.
LCD display cable.
Jumper for reset codes manually.
