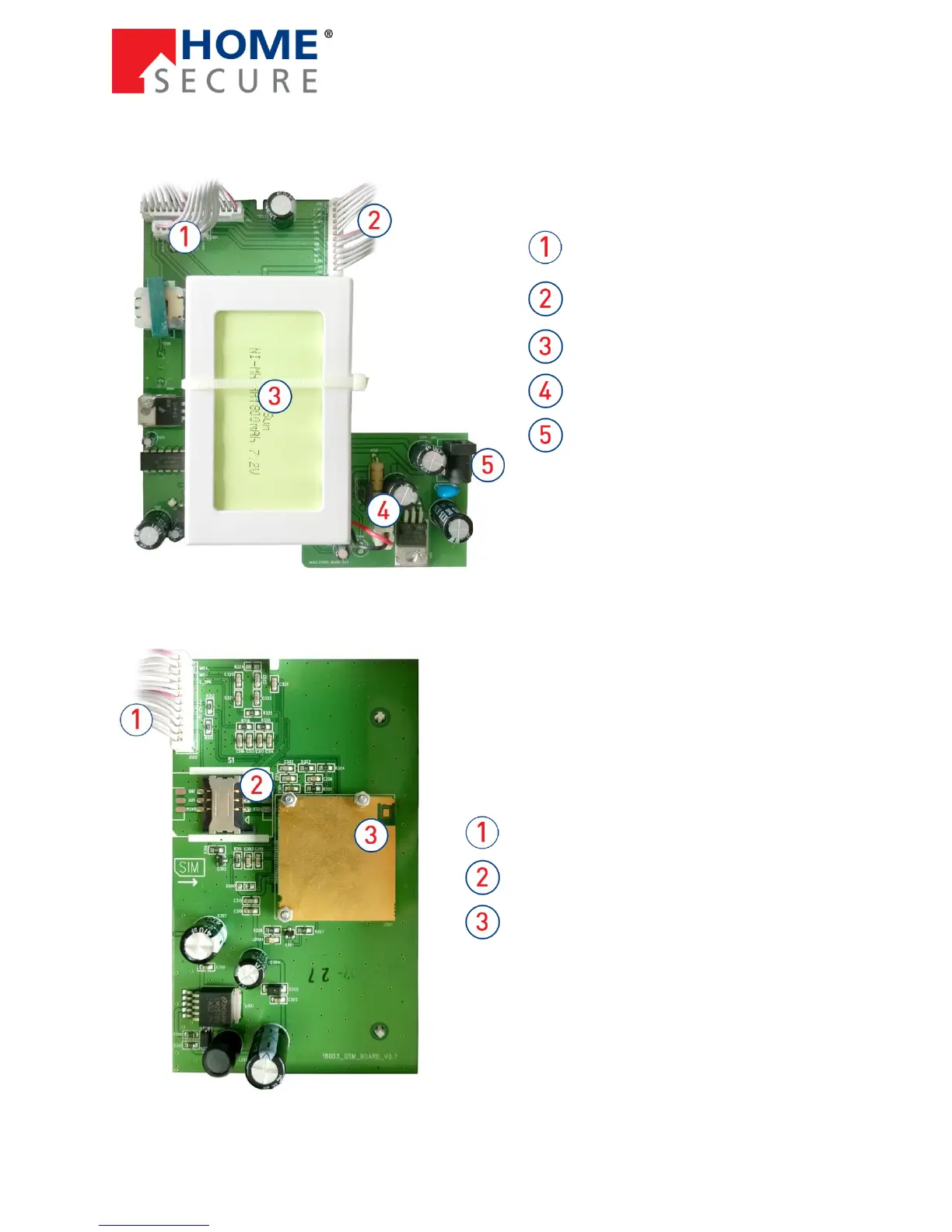

17.4.2 The Power Supply Plate
Providing power to both the main board and GSM module.
Main board cable. Provides the
mainboard with power.
GSM module cable. Provides the
GSM module with Power.
Backup battery.
Backup battery connection.
Power Supply connection.
17.4.3 The GSM module
Makes the alarm system capable of calling and sending SMS over the GSM network. There must be a
SIM card inserted in the alarm panel and also AC and DC power connected.
Power Supply cable.
SIM card holder
GSM Module
