CYLINDER HEAD/VALVES
7-19
CBX250

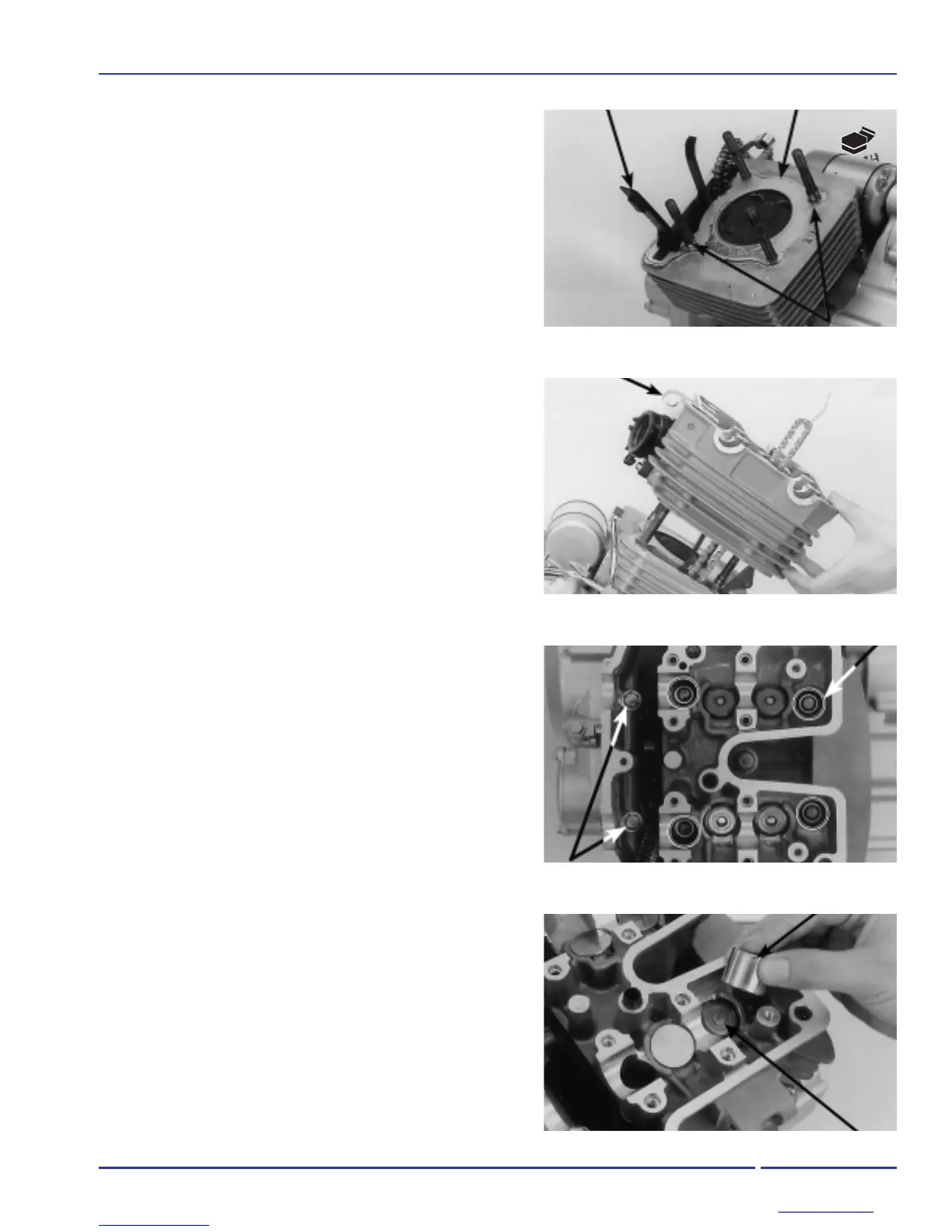

INSTALLATION OF CYLINDER HEAD
Remove any waste material from gasket of the contact
surfaces of the cylinder. Install the guide to the distribution
chain in the cylinder head. Make sure that the projections of
the guide to the distribution chain will fit into the slots in the
casing of the engine and the cylinder. Install the ears of
guide and a new gasket.
Apply motor oil to the threads and surfaces of settlement of
the nuts and bolts of the cylinder head. Install and tighten
the screws and washers.
TORQUE: 45 N.m (4,5 kg.m)
Install the exhaust pipe (page 2-5).
Install the carburetor (page 5-13).
Installing the CAMSHAFT
Lubricate the external surfaces of the actuators valves with
oil on the basis of carbon disulphide of molybdenum.
Install the shims and the actuators valves in their respective
positions and accommodations originals. Be careful not to
damage the surfaces of slip of the actuators and
accommodations.
Guided the chain of distribution through the cylinder head
and
install the cylinder head in the cylinder.
Install the tube of oil from the cylinder head in the same.
Tighten the bolt of superior connection of the tube of oil
from the cylinder head to the specified torque.
TORQUE: 12 N.m (1,2 kg.m)
GUIDE SPIKES
DISTRIBUTION
CHAIN GUIDE
GASKET
BOLTS
NUT
SHIM
ACUTUATOR OF THE VALVES
CYLINDER HEAD
