CYLINDER HEAD/VALVES
7-22

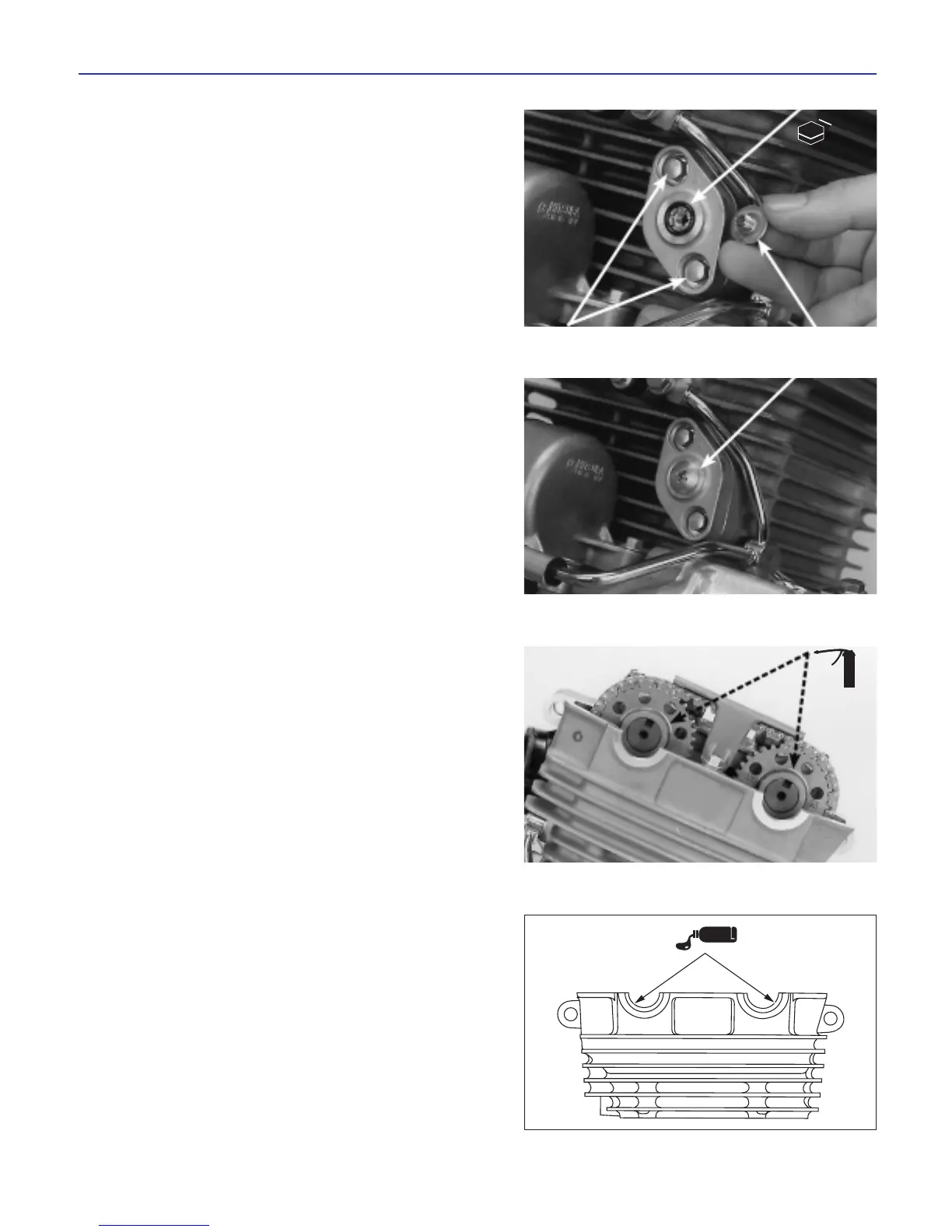

Remove the tool of limiting trigger for the tensile.
Install a new o ring in the accommodation of trigger for
the tensile.
Install the screw cap on the trigger for the tensile.
Tighten the screw cap on the trigger for the tensile.
BOLTS ACTUATOR PLUG
O-RING
INSTALLATION OF THE LID OF THE HEAD
Clean completely contact surfaces of the cylinder head and the
lid.
Pour engine oil in the pockets of the cylinder head.
Apply sealer liquid to the rebated semicircular cylinder
head, according to the illustration
Check again if the reference marks in the spiral of distribution
remain aligned with the upper surface of the cylinder head
while the trademark T of the steering wheel of the engine is
aligned with the notch indicator in the top side of the casing
of the engine (refer to the page 7-5).
ACTUATOR PLUG
CBX250
SELLADO
NUEVO
ACEITE

Honda 2010 CBX 250 Specifications

General

Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Engine Type	Air-cooled, 4-stroke, single cylinder, OHC
Bore x Stroke	73.0 mm x 59.5 mm
Ignition	CDI
Fuel Capacity	13 liters
