LUBRICATION SYSTEM
4-7
CBX250

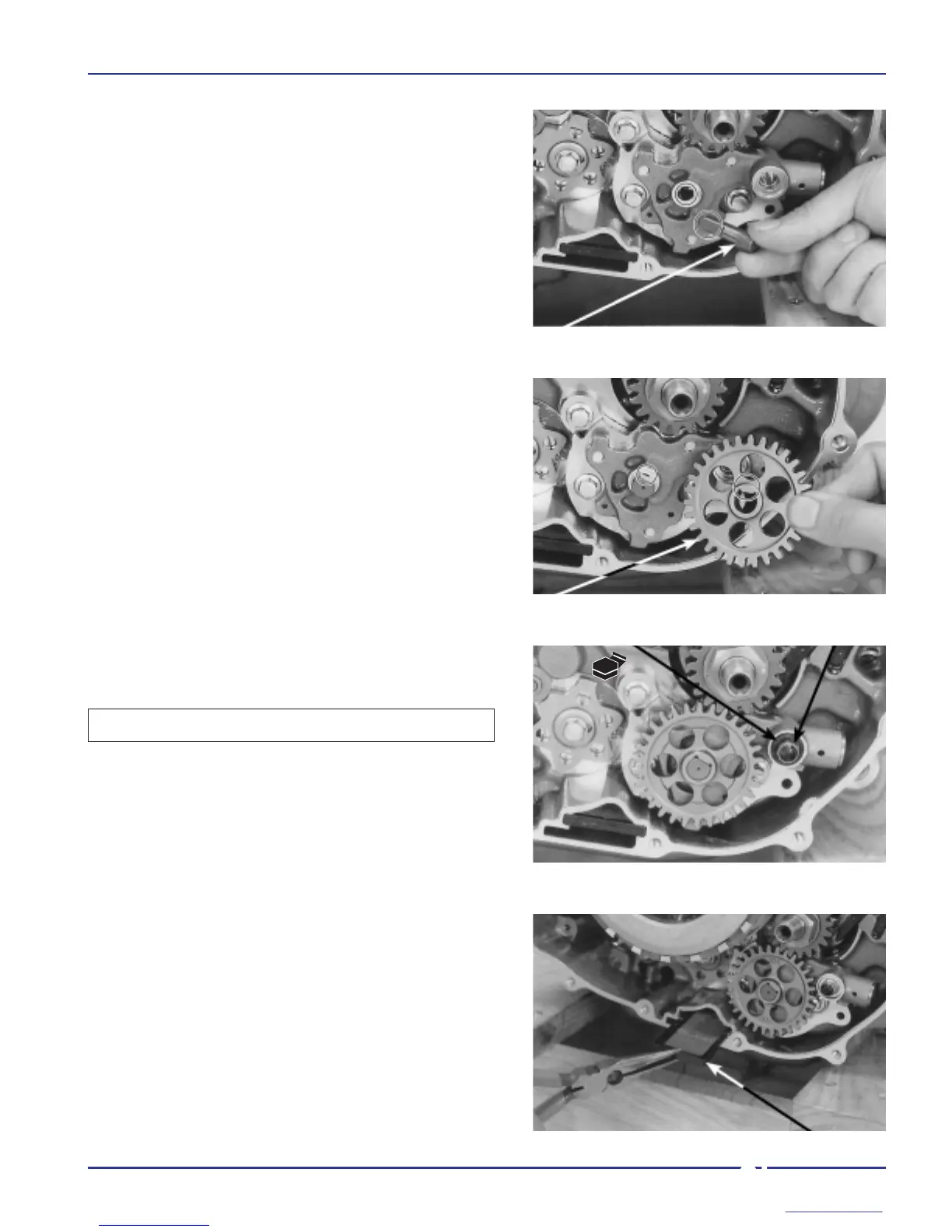

Install the axle of the pump aligning the flat surfaces of the
axle and the rotor.
Install the gear commanded of the oil pump, aligning the
flat surfaces of the hole gear and the axle of the pump.
AXLE OF THE OIL Pump
O-RING GUIDE
SEIVE FILTER
GEAR COMMANDED OF THE OIL Pump
Install the ear of guide and the o ring in the connection of the
oil pump.
NOTE
Clean the filter of sieve of oil (see the item below). Install the
lid right side of the casing of the engine (page 9-13). After
installation, supplying the engine with the oil recommended
(page 3-12) and make sure that there is no leakage.
SEIVE FILTER
The drainage of engine oil (page 3-12). Remove the cover right
side of the casing of the engine (page 9-3). Remove the filter of
sieve of the casing of the engine. Clean completely the sieve
filter using a solvent non-flammable. Inspect the sieve filter with
regard to damage and obstruction. Then, install again the filter
of sieve in the casing of the engine. Install the lid right side of
the casing of the engine (page 9-13).
Always replace the o ring with a new one.
