ALTERNATOR
10-6
Clean and implement locks
chemistry to the bolt threads
Torx of fixing the clutch boot.
Install the whole of clutch boot
on the steering wheel of the
engine. Install the bolts Torx.
Hold the wheel of the engine, us-
ing the special tool. Tighten the
bolts Torx.
Special tool:
Flywheel support
07725-0040000
TORQUE: 16 N.m (1,6 kg.m)
BOLT TORX

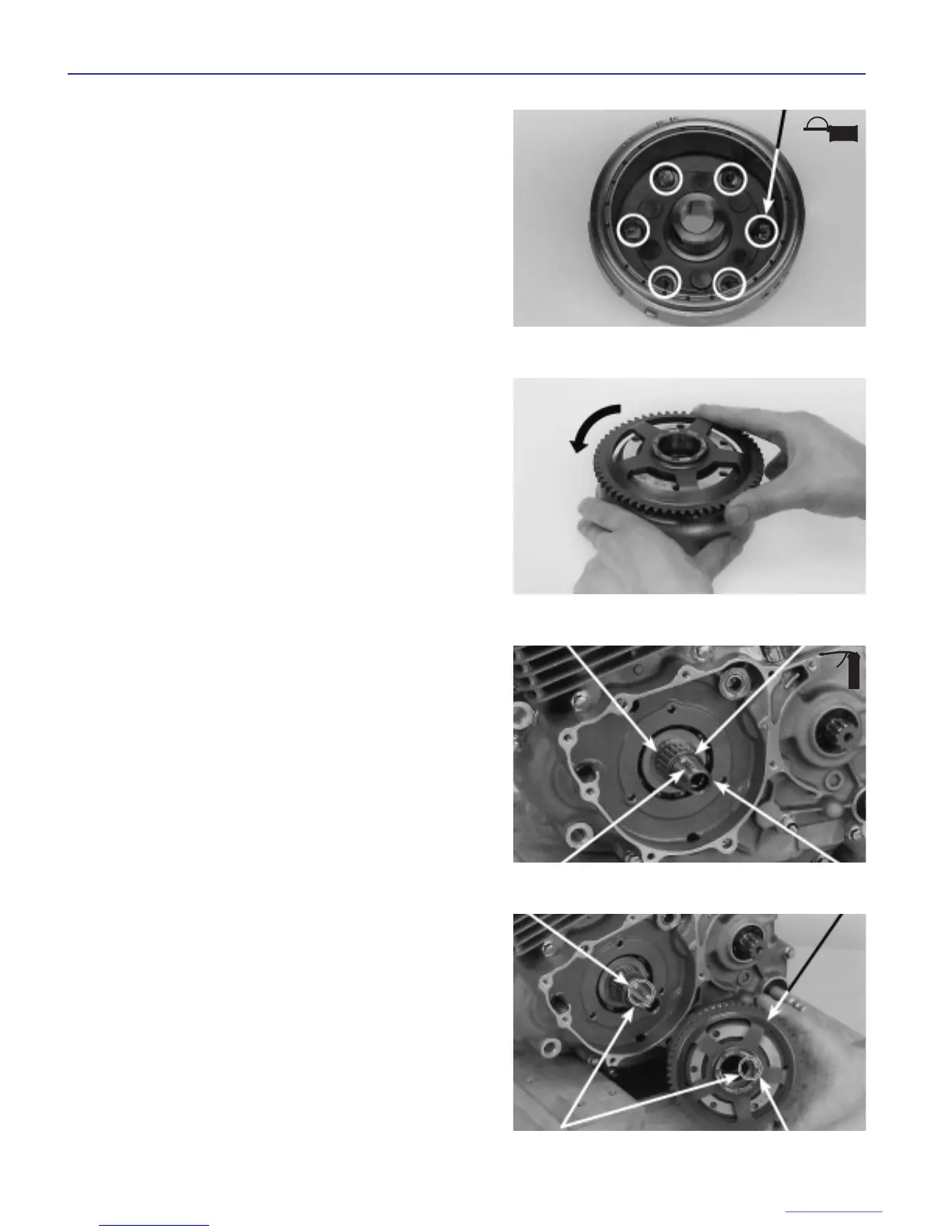

INSTALLING THE FLYWHEEL
Lubricate the bearing of needles with oil. Install the spacer
and the bearing of needles in the crankshaft.
Wipe any residue of oil from sections of conical crankshaft
and steering wheel of the engine.
Install the cotter Woodruff in the slot on the crankshaft.
Install the chain of command of the boot.
Install the steering wheel of the engine in the crankshaft,
aligning the slot on the steering wheel with the cotter
Woodruff.
NOTCH Clean
SPACER BALL NEEDLES
Align SLOT OF THE fly wheel
CRANKSHAFT FLYWHEEL
Install the gear commanded the boot, together with the
washer, making turn in the sense against opening hours.
Make sure that the gear commanded the boot gently turn in
the sense against opening hours and that does not turn
clockwise.
Install the fly wheel of the engine.
CBX250
