Honda 2010 CBX 250 User Manual

LIGHTS/INDICATORS/SWITCHES
19-6

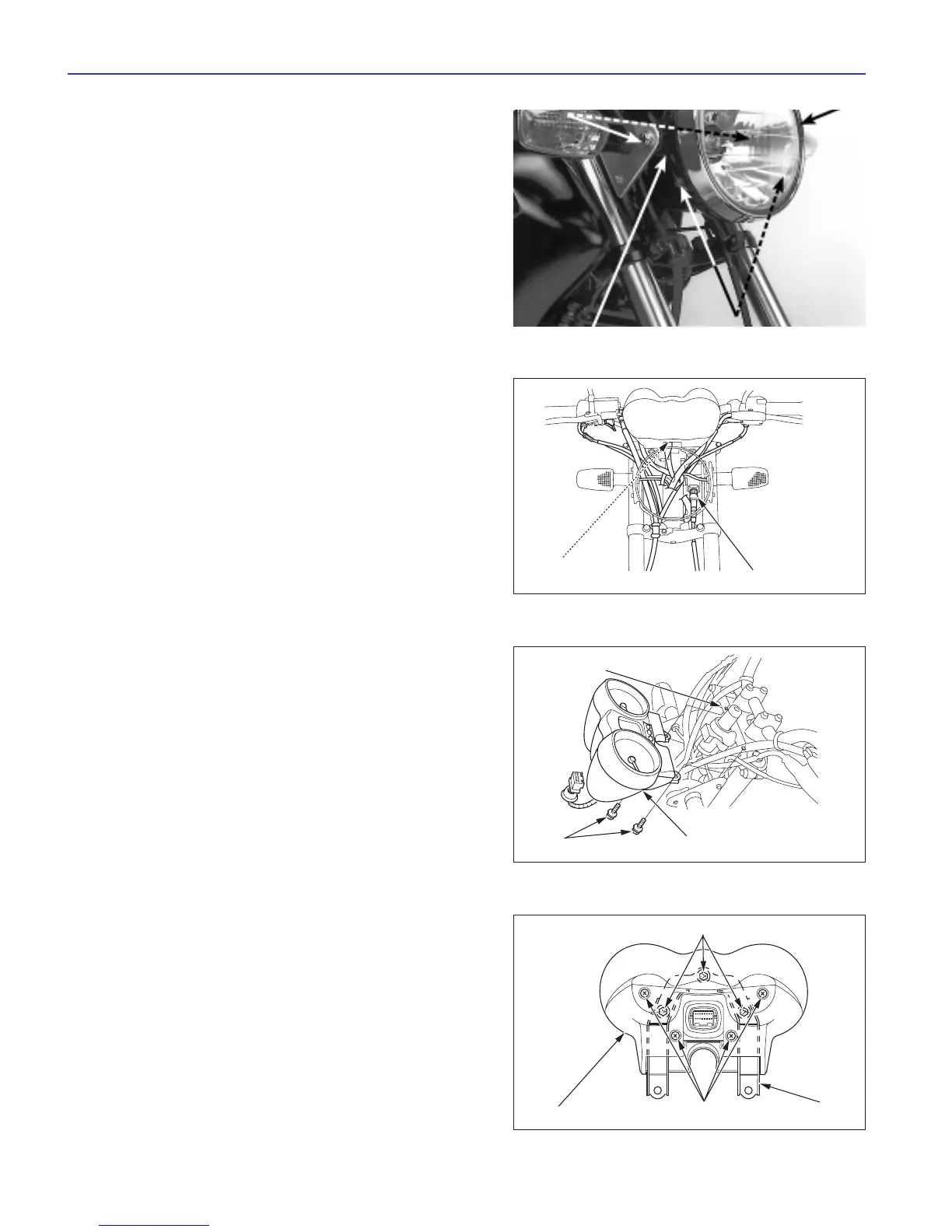

INSTRUMENT PANEL
DISMANTLING/Installation
Remove the two bolts and the collars.
Release the connector 3P headlamp.
Remove the two screws, nuts and the casing of the
headlight.
Remove the clamp.
CASING OF THE HEADLIGHT SCREWS
NUTS/BOLTS HEADLIGHT UNIT
Remove the bolts and the picture of instruments of the
higher bridge.
The installation is performed in reverse order dismantling.
DISMANTLED
Remove the four screws and the bottom layer of the table
of instruments.
Remove the three nuts, gums and the support of the table
of instruments.
The installation is performed in reverse order dismantling.
Disconnect the cable of the speedometer.
Disconnect the connector 16 of the table of instruments.
CBX250
CONNECTOR
16P
SPEEDOMETER
CABLE
HIGHER BRIDGE
BOLTS
INSTRUMENT PANEL
NUTS
BOTTOM LAYER
SCREWS
BRACKET

Honda 2010 CBX 250 Specifications

General

Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Engine Type	Air-cooled, 4-stroke, single cylinder, OHC
Bore x Stroke	73.0 mm x 59.5 mm
Ignition	CDI
Fuel Capacity	13 liters
