MAINTENANCE
CBX250
LUBRICATION

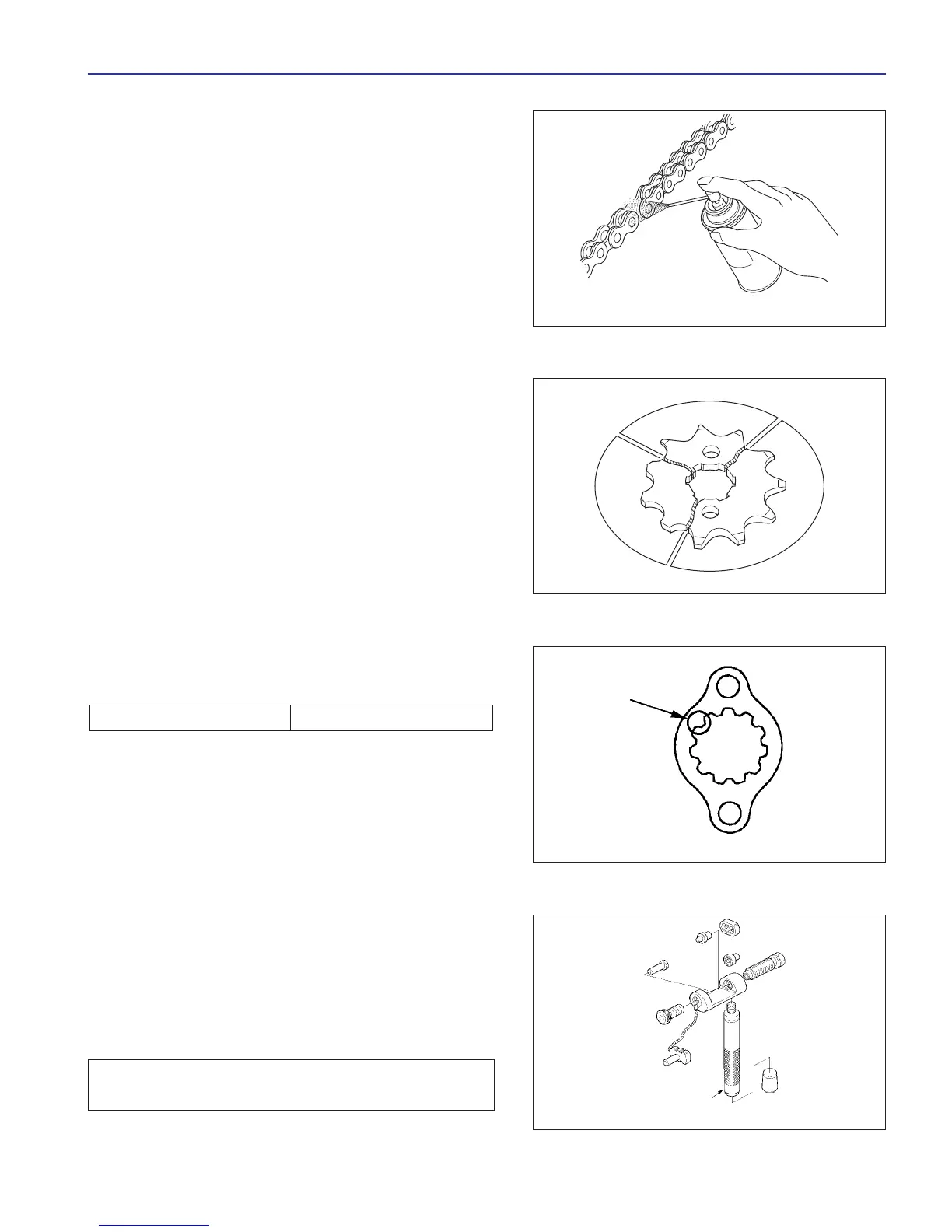

Lubricate the drive chain with oil gear SAE 80
90 or with a lubricant specially developed for chains with
rings o. Remove excess oil or lubricant.
INSPECTION OF THE CROWN AND SPROCKET
OF TRANSMISSION
Inspect the teeth of the crown and sprocket of
transmission with regard to wear or damage. Replace
the crown and the pinion if necessary. Never use a
string of new transmission with gears eroded. The drive
chain, as well as the crown and the pinion,
must be in good conditions. Otherwise, the new piece is
erode rapidly.
INSPECTION OF THE PLATE OF FIXING THE
SPROCKET
Check the wear of the plate of fixing the sprocket in the
region of the teeth ruffles, always to replace the sprocket.
In the event that the thickness of teeth ruffles has reached
the limit of service, replace the plate.
Check the bolts and nuts for fixing the crown and sprocket
of transmission. If they are loose, tighten specified torque
(Section 14).
REPLACEMENT
This motorcycle uses a drive chain with a link
master. Loosen the drive chain (page 3-14).
Arming the special tool in accordance with the illustration.
Special Tool:
Special Tool de la ca-
dena de transmisión
07HMH–MR10103
NOTE
When you use the special tool, follow the
manufacturer’s instructions.
Service Limit 2,1 mm
LUBRICATION
OIL GEAR SAE 80 or 90 LUBRICANT FOR chains
of transmission
WORN OUT
SPOILT
TEETH
RUFFLES
PLATE OF FIXING THE SPROCKET
NORMAL
TOOL OF THE DRIVE
CHAIN
To Next Page
