CLUTCH/GEAR SELECTOR
9-10

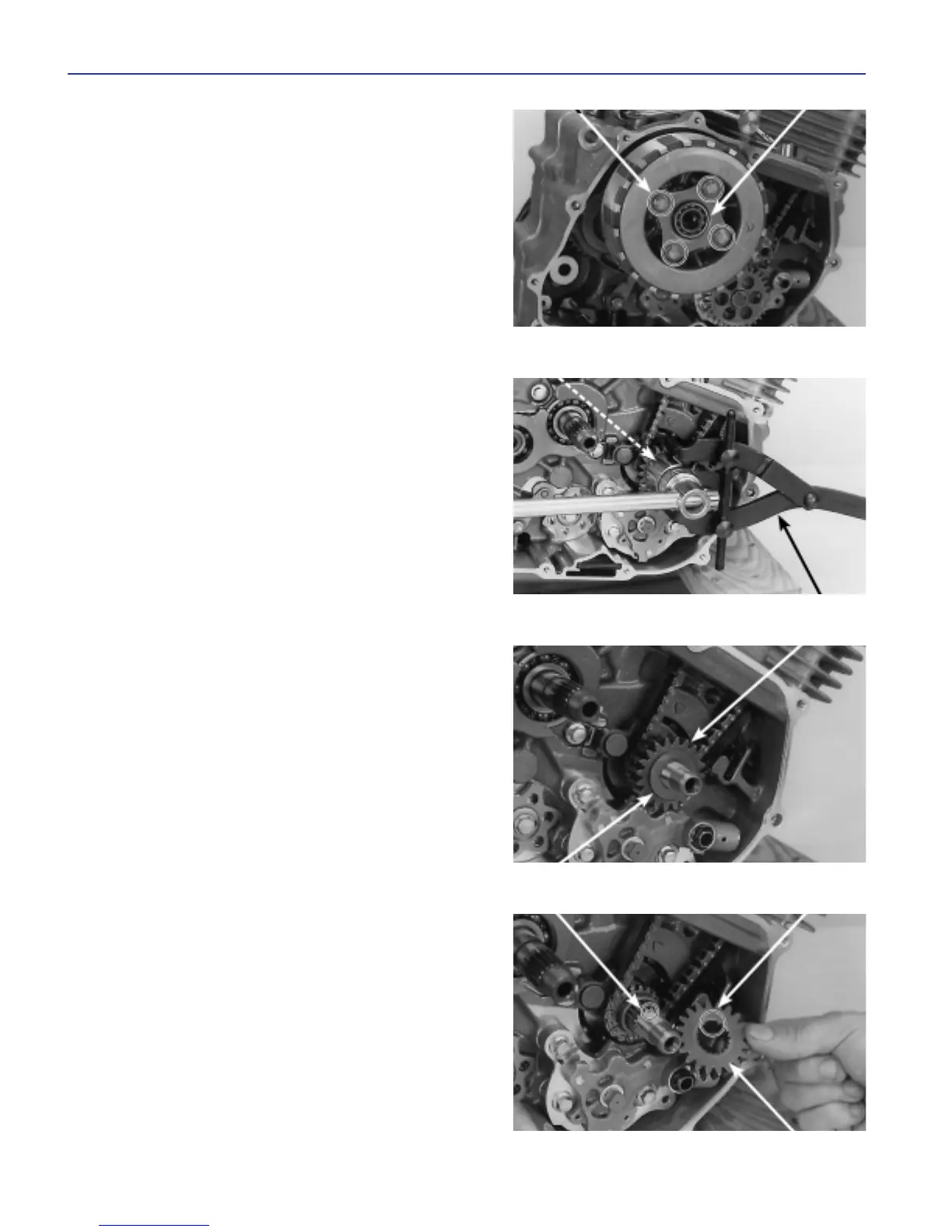

Install the springs of clutch, the plate operated and the
respective bolts on the plate of pressure.
Tighten bolts in sequence, mixed in several steps. Then,
tighten firmly.
Install the lid right side of the casing of the engine (page
9-12).
BOLT/SPRING PLATE OPERATED
WASHER
GEAR PRIMARY COMMAND
INSTALLATION
Install the primary gear command aligning its slot wider
with the striated more width of the crankshaft.
GEAR PRIMARY COMMAND
STRIATED WIDE BROADBAND SLOT
GEAR PRIMARY COMMAND
DISMANTLING
Remove the cover right side of the casing of the engine
(page 9-3).
Remove the components of clutch (page 9-4).
Using the special tool remove the nut and washer gear
primary command, according to the illustration.
Tool:
Support of the body of the clutch:
07724-0050002
Remove the washer and the primary gear command of the crankshaft.
SUPPORT OF THE BODY OF CLUTCH
NUT AND WASHER
CBX250
