IGNITION SYSTEM
CBX250

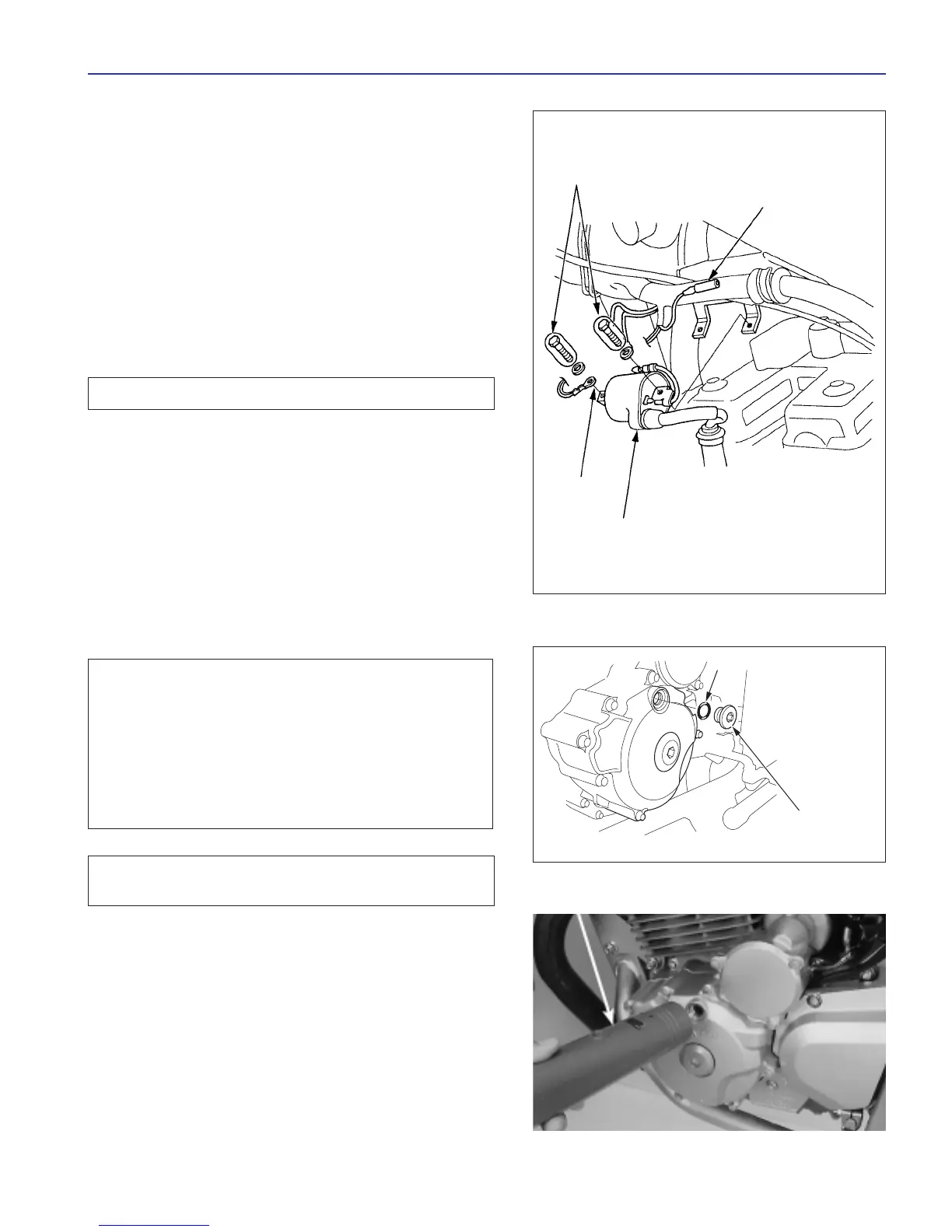

IGNITION COIL
DISMANTLING/Installation
Remove the fuel tank (page 2-4).
Release the noise dampening layer of the spark plug.
Disconnect cables in the ignition coil.
Remove the two bolts, washers and the ignition coil. Install
the parts in reverse order dismantling.
NOTE
Install correctly the cable spark plug.
SPARK PLUGS
d
NOTE
Activate the engine and heat until the normal operating
temperature. Stop the engine. Remove the cover of the
hole of timing and the o ring. Connect the strobe lamp in
the cable spark plug. Activates the engine, leave operate
in idle and verify the point of ignition.
Idle speed 1.400 ± 100 rpm
Read the instructions of the functioning of the strobe
lamp.
•In case of that is necessary to make services with
the engine running, make sure that the local work
is well ventilated. Never put the engine running
in closed areas. The exhaust containing carbon
monoxide poison, which can cause loss of con-
sciousness and even death. •Activates the engine
in a local open, or in a local closed equipped with
a ventilation system and extraction of gas.
STROBE LAMP
BOLTS/WASHERS
CONNECTOR
CABLE
IGNITION
COIL
O-RING
TOP OF THE HOLE OF
SYNCHRONISATION
