FUEL SYSTEM (PGM-FI)
5-71

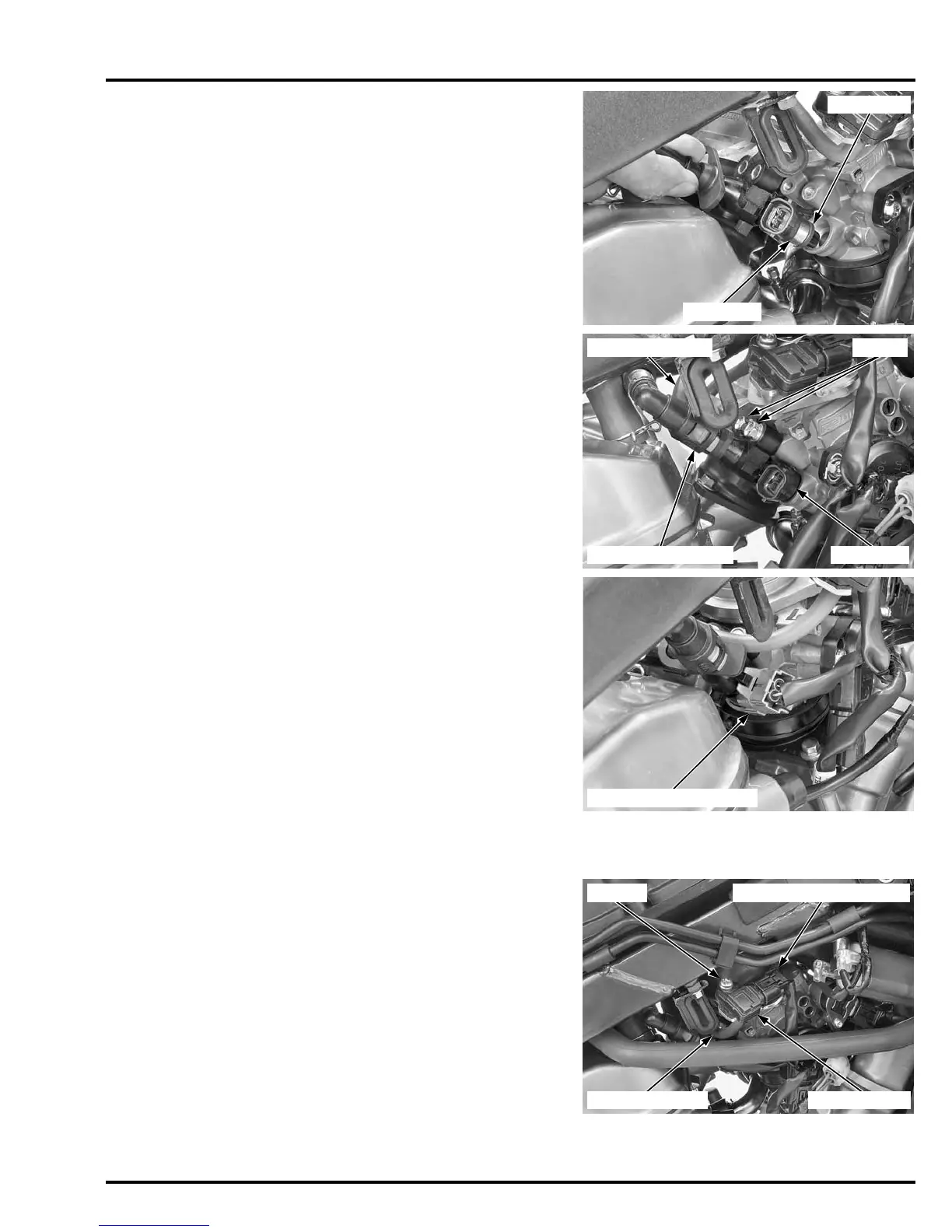

Install the injector and fuel feed hose to the throttle
body, being careful not to damage the seal ring.
Install and tighten the bolts to the specified torque.
Connect the fuel hose quick connector (page 5-55).
Connect the injector 2P (Gray) connector.
Install the air cleaner housing (page 5-64).
MAP SENSOR
REMOVAL/INSTALLATION
Remove the wire harness cover (page 2-10).
Disconnect the MAP sensor 3P (Black) connector
and vacuum hose.
Remove the screw and MAP sensor.
Installation is in the reverse order of removal.
TORQUE: 5.4 N·m (0.6 kgf·m, 4.0 lbf·ft)
FUEL FEED HOSE
INJECTOR
BOLTS
QUICK CONNECTOR
TORQUE:
MAP sensor mounting screw:
5.0 N·m (0.5 kgf·m, 3.7 lbf·ft)
SCREW
MAP SENSOR
3P (BLACK) CONNECTOR
VACUUM HOSE
