CYLINDER/PISTON
9-4

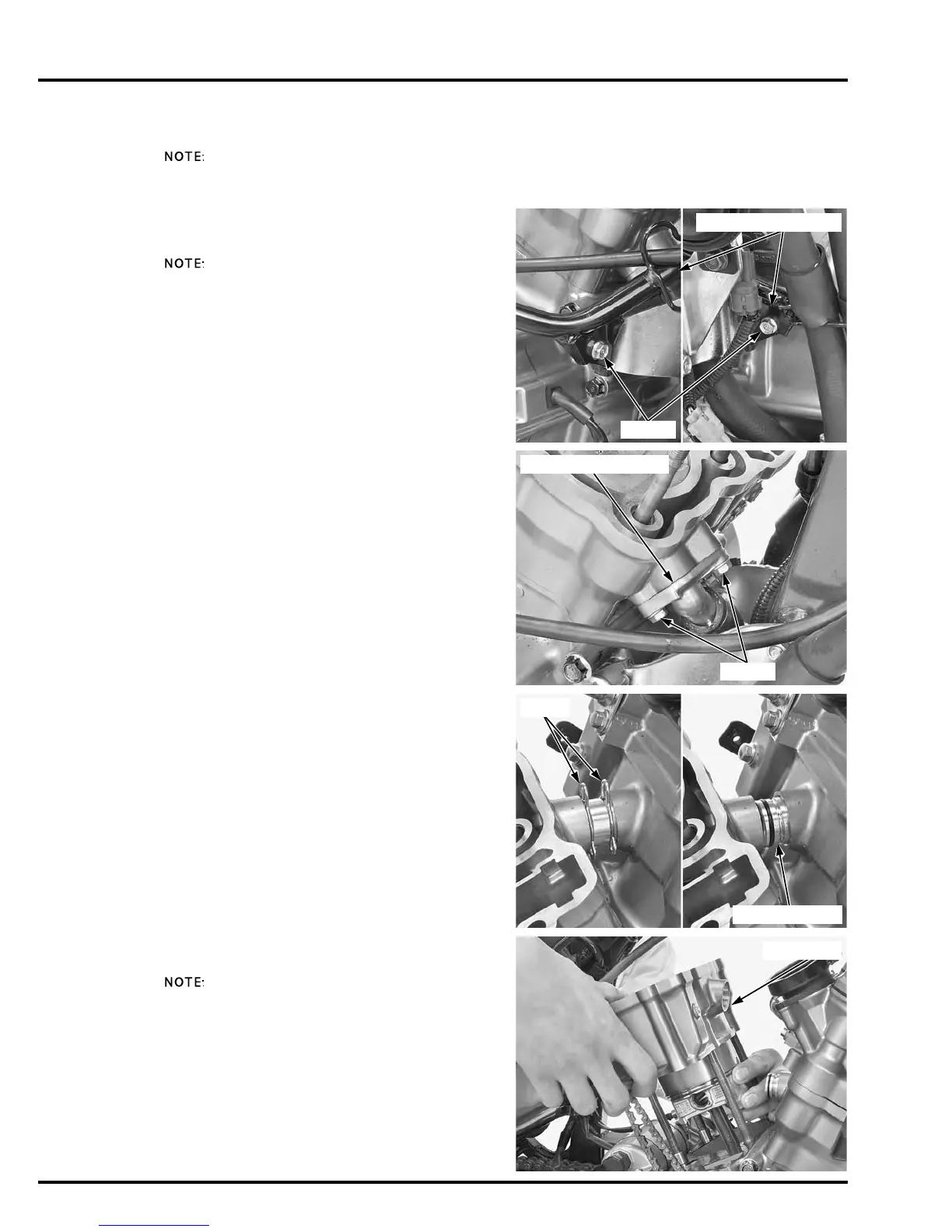

CYLINDER/PISTON REMOVAL
CYLINDER REMOVAL
The front cylinder uses the same service procedure
as the rear cylinder.
Remove the cylinder head (page 8-13).
Remove the bolts and under cowl stay.
Release the clutch cable and water hoses from
under cowl stay.
Front cylinder only: Remove the bolts and water hose joint/O-ring.
Remove the retaining clips.
Slide the cylinder joint collar toward either the front
or rear cylinder.
Lift the cylinder and remove it, being careful not to
damage the piston with the stud bolts.
• Attach a piece of wire to the cam chain to pre-
vent it from falling into the crankcase.
• Do not strike the cylinder too hard and do not
damage the mating surface with a screwdriver.
Front cylinder only:
