CRANKCASE/CRANKSHAFT/TRANSMISSION
12-18
After selecting new bearings, recheck the clearance
with a plastigauge. Incorrect clearance can cause
severe engine damage.

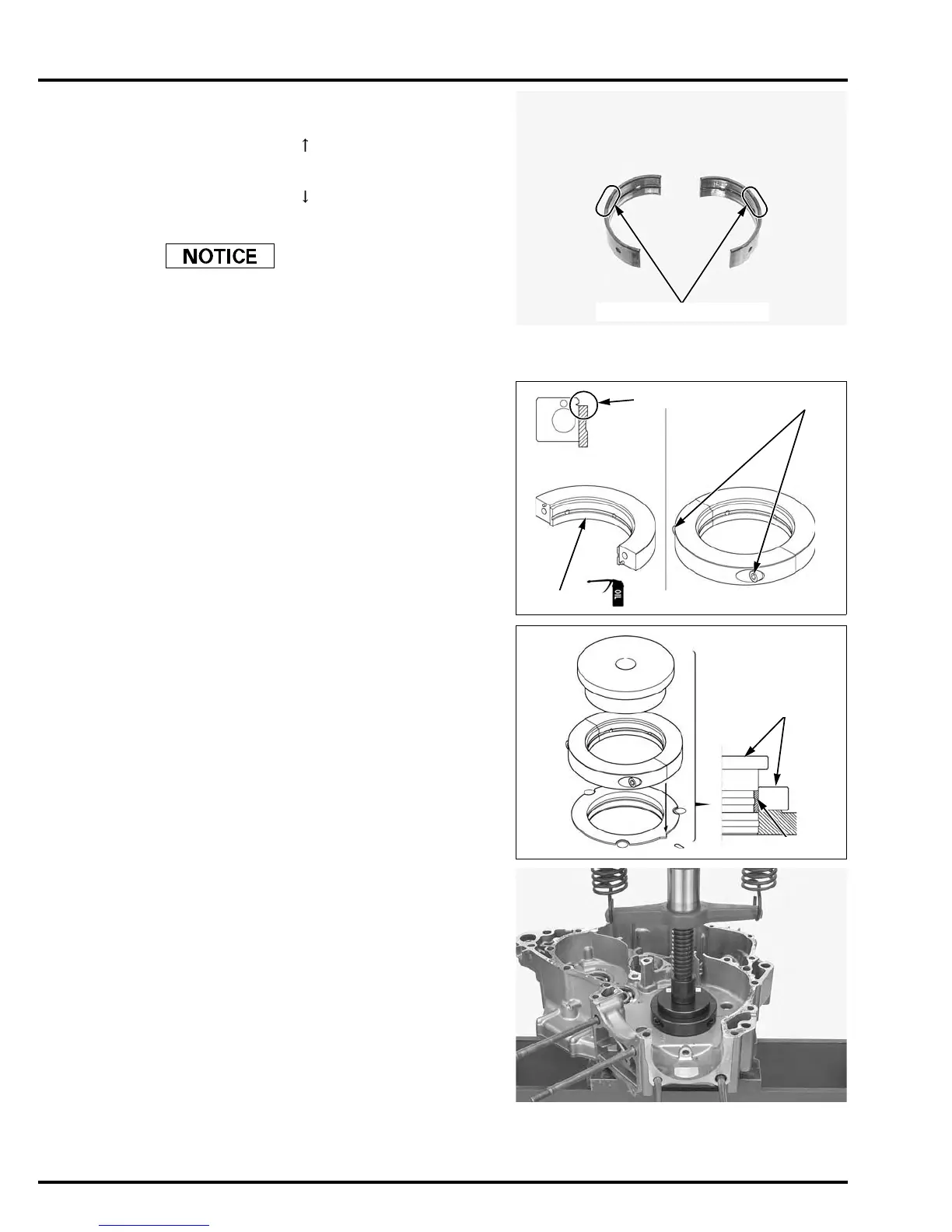

BEARING INSTALLATION
Apply engine oil to new bearing surface.
Set new bearings to the metal installer aligning its
side edge with the metal installer grooves.
Set the bearings and special tools assembly on
inside of the crankcase, fitting the bearing edge in
the crankcase main journal.
Align the mating line of the bearings with the index
mark on the crankcase as shown.
Set the hydraulic press.
BEARING THICKNESS:
O.S. E (Yellow): Thick
O.S. F (Pink):
O.S. G (Red):
A (Blue): Middle
B (Black):
C (Brown):
D (Green): Thin
TOOL:
Metal installer set 070MF-MEG0200
BEARING
METAL
INSTALLER SET
TOOL:
Metal installer set 070MF-MEG0200
To Next Page
