FRAME/BODY PANELS/EXHAUST SYSTEM
2-5
DISASSEMBLY/ASSEMBLY

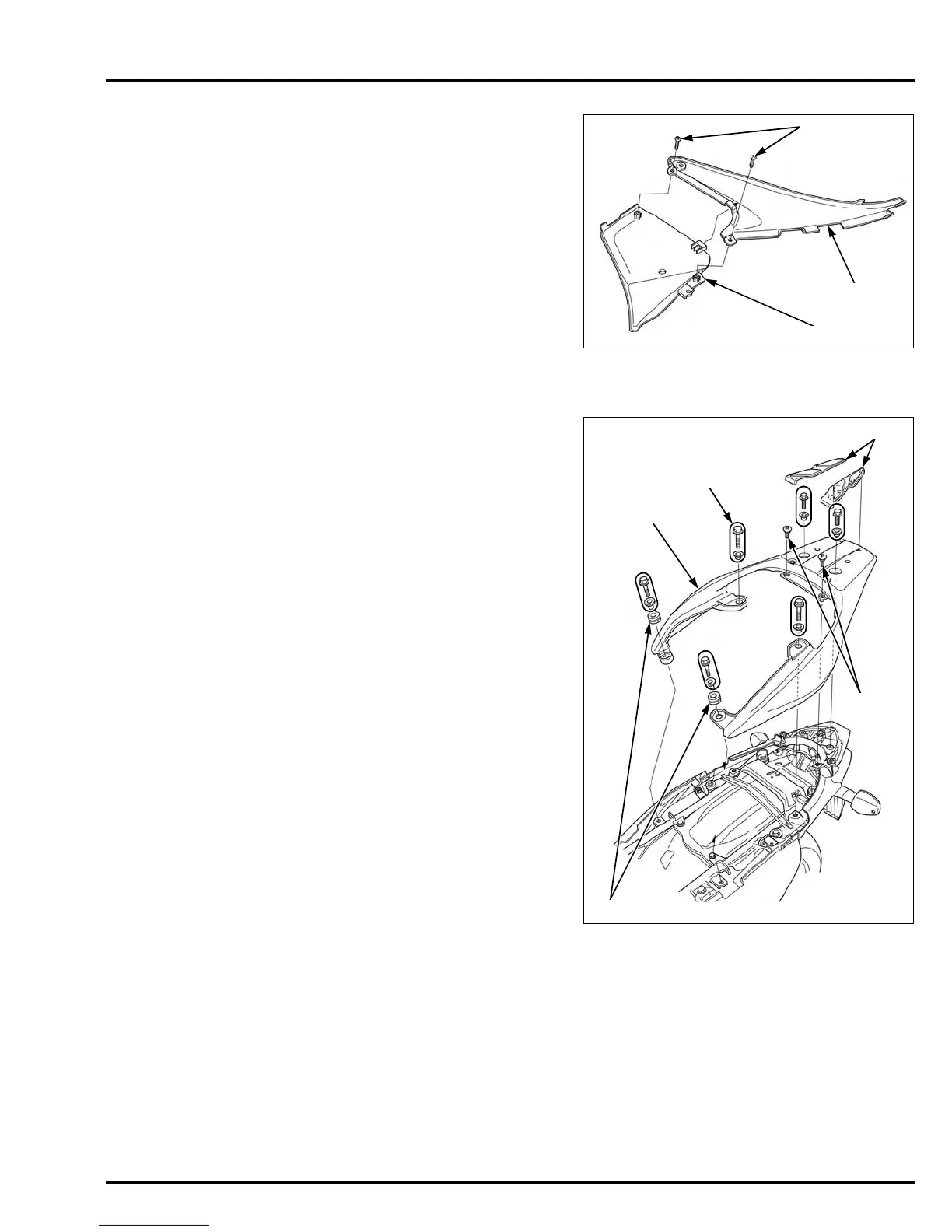

Remove the screws and front side cover from the
side cover.
Assembly is in the reverse order of disassembly.
REAR CARRIER
REMOVAL/INSTALLATION
Remove the seat (page 2-4).
Remove the following:
– Carrier rubbers
– Screws
– Bolts
– Collars
– Grommets
– Rear carrier
Installation is in the reverse order of removal.
SIDE COVER
FRONT SIDE COVER
SCREWS
TORQUE:
Rear carrier bolt:
26.4 N·m (2.7 kgf·m, 19 lbf·ft)
REAR CARRIER
GROMMETS
CARRIER RUBBERS
BOLTS/COLLARS
SCREWS
