FRAME/BODY PANELS/EXHAUST SYSTEM
2-23

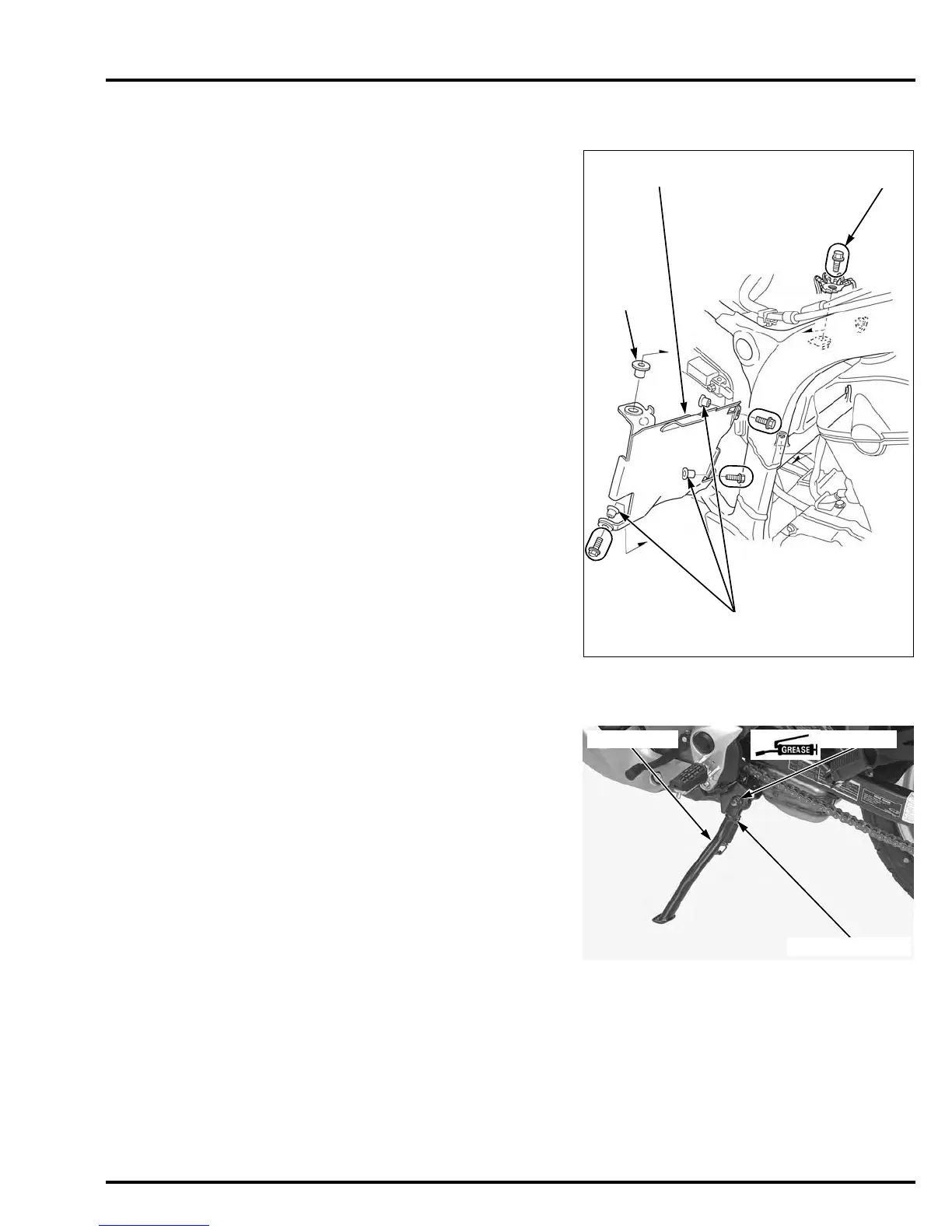

HEAT GUARD PLATE
REMOVAL/INSTALLATION
Remove the exhaust system (page 2-14).
Remove the bolts, terminal collar, heat guard plate
and collars.
Installation is in the reverse order of removal.
SIDESTAND
REMOVAL/INSTALLATION
Remove the sidestand switch (page 20-25).
Support the motorcycle in an upright position.
Unhook the return spring.
Remove the pivot nut, bolt and sidestand.
Installation is in the reverse order of removal.
At installation, apply grease to the pivot bolt sliding
surfaces.
HEAT GUARD PLATE
TERMINAL
COLLAR
COLLARS
BOLTS
TORQUE:
Sidestand pivot bolt
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)
Sidestand pivot lock nut
29.4 N·m (3.0 kgf·m, 22 lbf·ft)
BOLT/NUT
RETURN SPRING
SIDESTAND
