REAR WHEEL/SUSPENSION
14-18

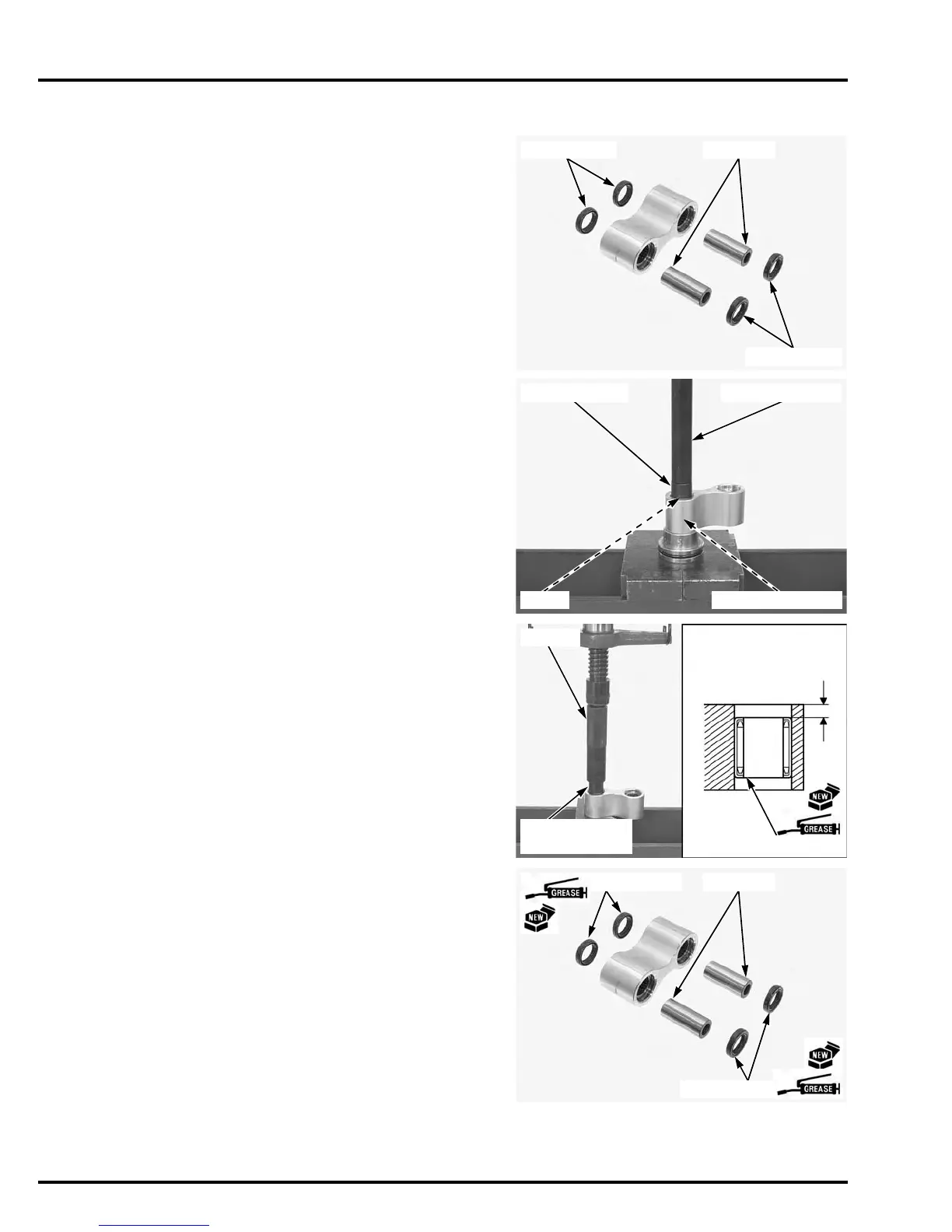

BEARING REPLACEMENT
CUSHION CONNECTING ROD
Remove the pivot collars and dust seals.
Press the needle bearings out of the cushion con-
necting rod using special tools.
Pack new needle bearings with specified grease
(page 1-18).
Press the needle bearing into the cushion connect-
ing rod so that the needle bearing surface is lower
5.3 – 5.7 mm (0.21 – 0.22 in) from the end of the
cushion connecting rod using the special tools.
Apply specified grease to new dust seal lips (page 1-
18).
Install the dust seals and pivot collars.
COLLARS
DUST SEALS
DUST SEALS
TOOLS:
Driver handle 070GD-0010100
Attachment, 22 x 24 mm 07746-0010800
Pilot, 17 mm 07746-0040400
DRIVER HANDLEATTACHMENT
NEEDLE BEARINGPILOT
TOOLS:
Driver 07749-0010000
Attachment, 22 x 24 mm 07746-0010800
Pilot, 17 mm 07746-0040400
5.3 – 5.7 mm
(0.21 – 0.22 in)
DRIVER
ATTACHMENT/
PILOT
NEEDLE BEARING
COLLARS
DUST SEALS
DUST SEALS
