Honeywell 4850DR Guide

10 - 4
Standard Connector Pinout
Note: This pin assignment is not compatible with Honeywell legacy products. Use of a cable with improper pin assignments
may lead to damage to the unit. Use of any cables not provided by the manufacturer may result in damage not covered
by your warranty.

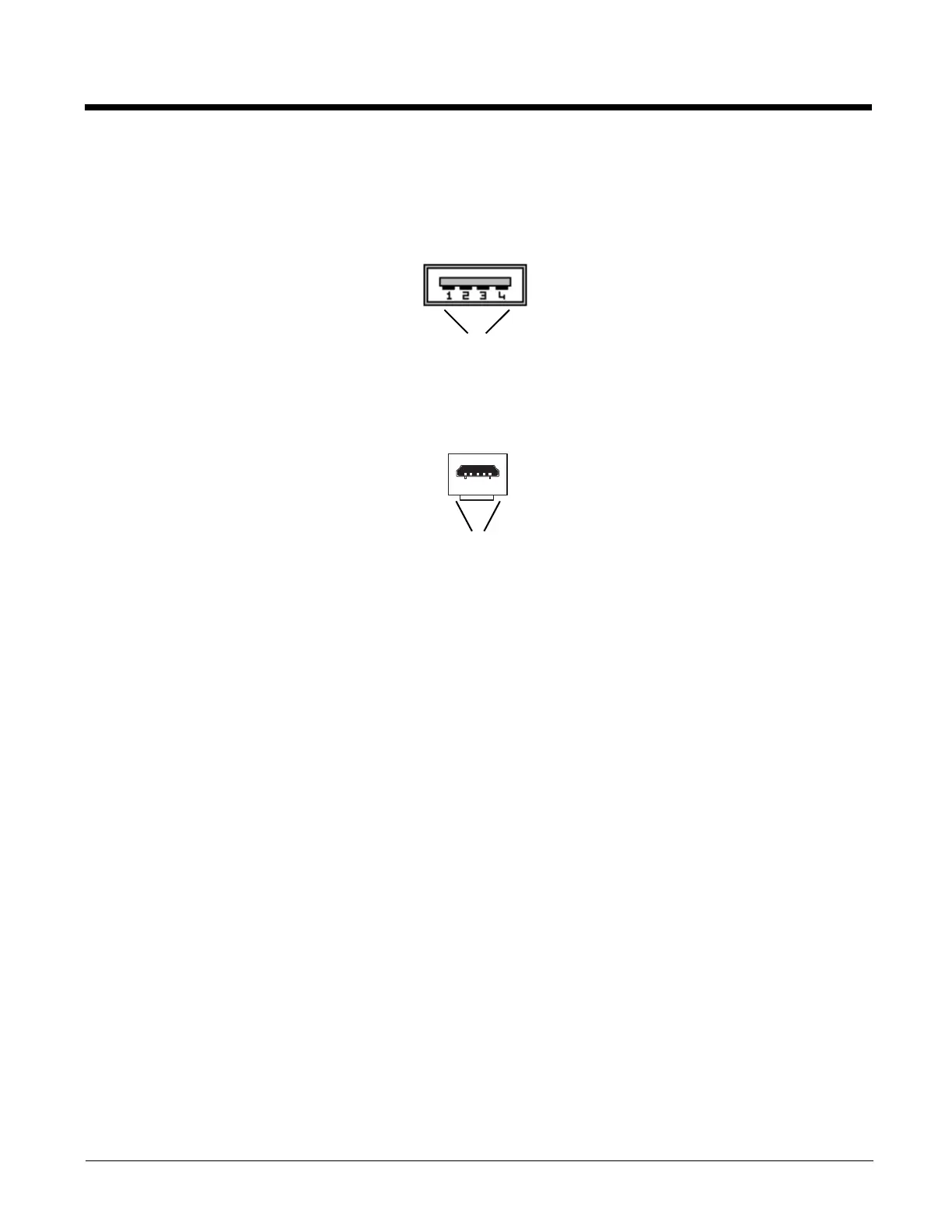

USB Type A Connector
USB Micro Type B Connector
1 VBUS
2D-
3D+
4 Ground
1 2 3 4 5
1Vbus
2D-
3D+
4 Reserved/NC
5 Ground
