8500C/8500C+ System Maintenance Manual A-7

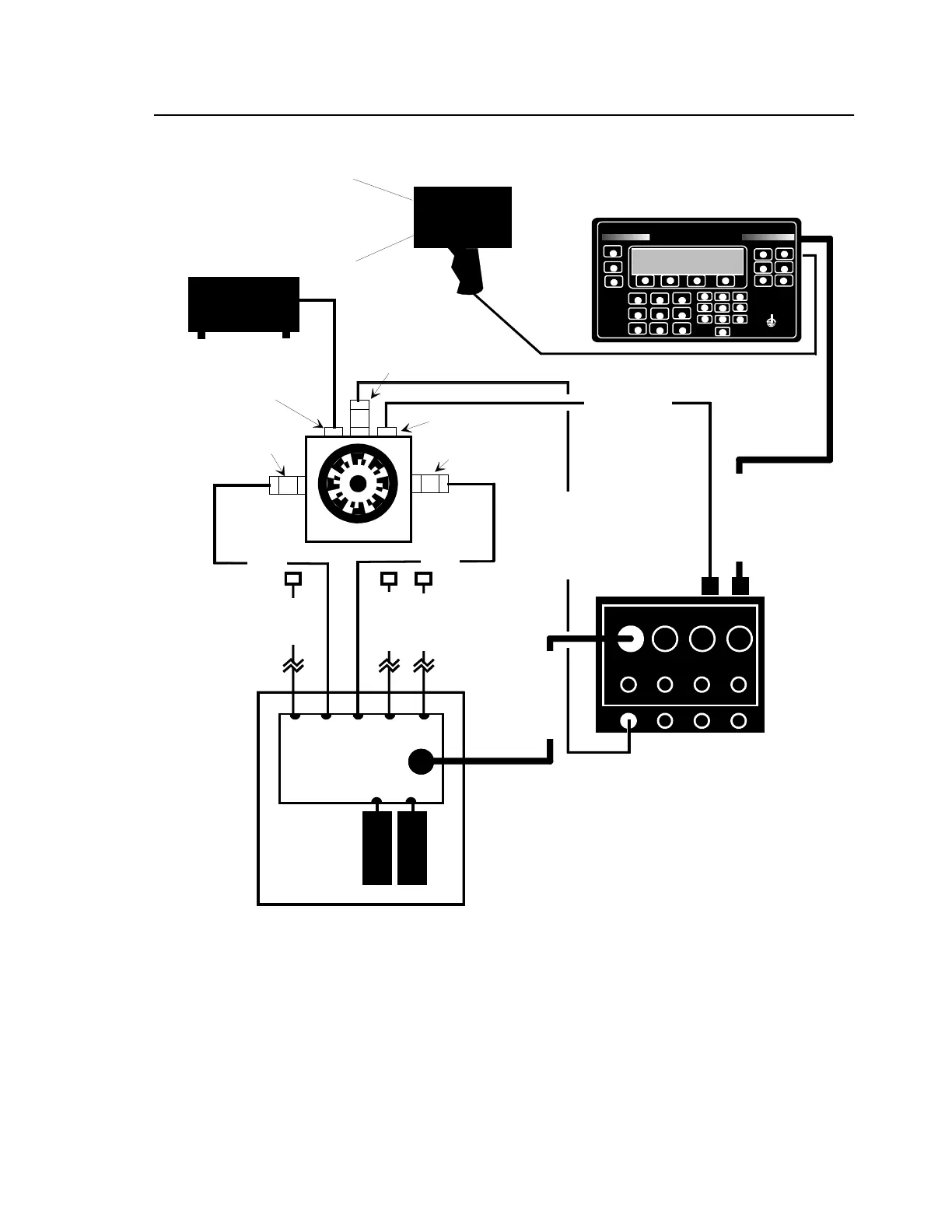

Figure A-3. 8520C-36 Test Setup w/Velos (C-130)
bf. Press STOP key.
bg. Press SETUP on 8500C/C+.
bh. Select INPUT field with arrow keys.
bi. Key in 7 with numeric key for #3 ADH cable.
bj. Press ENTER soft key.
bk. Wait 10 seconds.
VELOCIMETER
7310
VELOCIMETER
7310
MAGNETIC PICKUP
3030
CALIBRATOR 11A
POWER
BALANCER
A
B
CD
1234
135M-12 STROBEX
8520C-36
SIGNAL SELECTOR
Y
BALANCER/ANALYZER
CHADWICKHELMUTH
E L M O N T E , C A L I F O R N
MODEL 8500C
D
J
P
BALANCE
TRACK
#
%
:
SPECTRUM
E
HELP
LOAD
STORE
K
<
Q
>
F
L
R
STATUS
SETUP
-
/
.
PRINT
A
SHOW/HIDE
B
MORE/KEYS
C
STOP
W
Z
X
START
1
4
3
6
G
M
S7
H
2
N
5
8
T
0
V
I
O
9
U
ANNOTATE
8500C BALANCER/ANALYZER
11690 NACELLE HARNESS
5-12 13-20 21-2829-36
CABLE 10811
FILENAME: C-130B.DRW
#6
AFT COMP
#7
TURBINE
#5 COORD
#4 F COMP
CABLE 10808
CABLE 10813
CABLE 11517
#3 ADH
#2 RGB
#1 PROP
POWER SUPPLY 9100A
