5. PC CONFIGURATION
5-17
5.8.5 Upgrade Firmware: Firmware Files Installer
Installs earlier versions of the recorder firmware. In order to upgrade the firmware of the main board of the
recorder or the communication board of the recorder, the firmware file has to be extracted from a .z file.
Typically, Communication board firmware is named CBREC.Z and Main board firmware REC.Z. The
extracted file would have a .rec extension.
Following are the steps followed to extract the firmware file.
1. Click on Device in the “On-Line Comm” menu to select the type of recorder.
2. Click on “Upgrade firmware” in the “On-Line comm” menu.

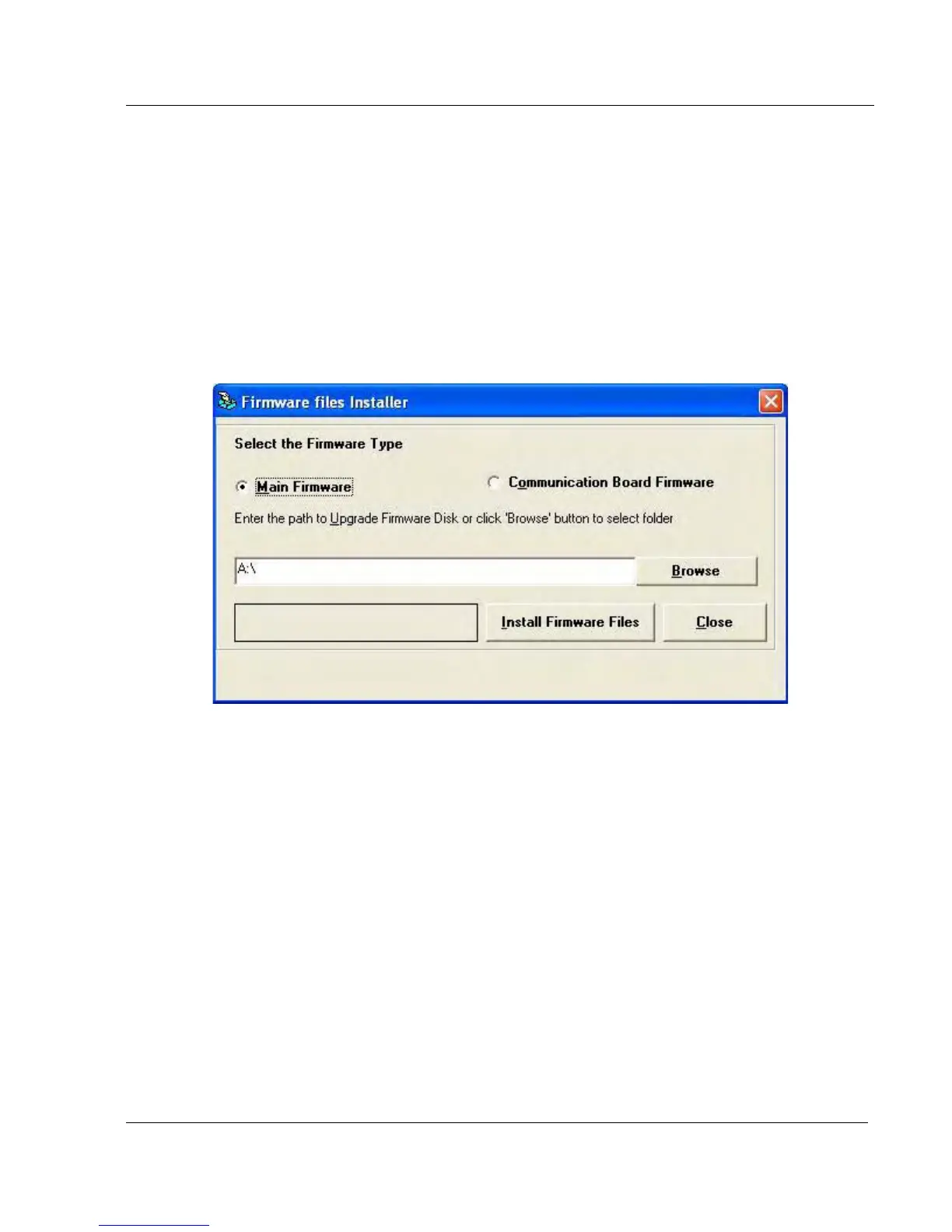

3. Click on "Firmware Files Installer". The following dialog appears.
4. Click on the type of firmware file that is to be extracted.
5. Provide the location of the .Z file and click on “Install Firmware files”.
6. The firmware file would be extracted to the installation directory of the tool.
