4.6 Mechanical Installation
4.6.1 Connect SmartRadar to Tank Separator

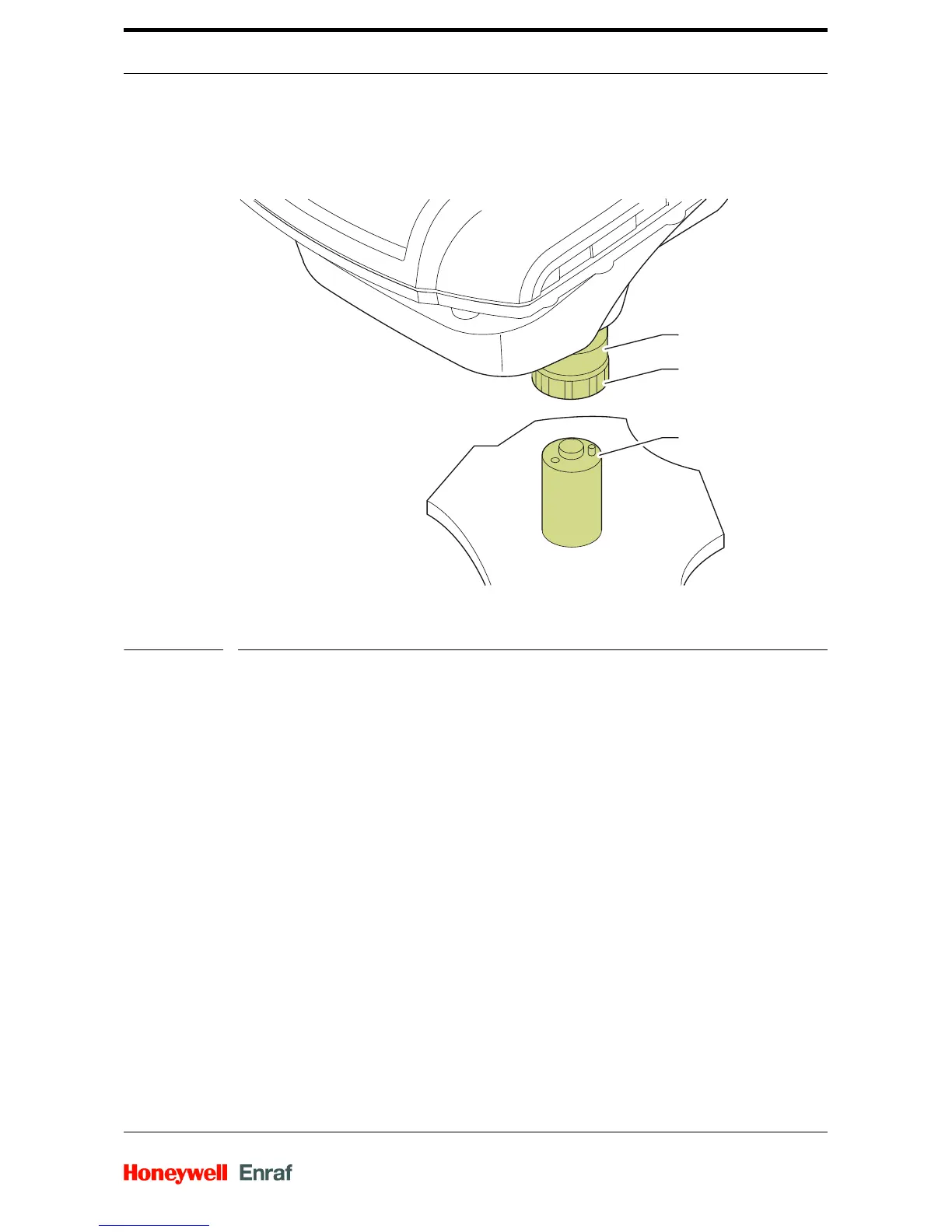

FIG. 4-2 Separator coupling (A) and tank separator (C)
Place device separator coupling (A) on tank separator (C).
Make sure the pin of the separator coupling fits into the corre-
sponding opening of the tank separator.
Turn ring (B) clockwise to fasten the device. Fasten ring hand
tight.
