3.3 Set up / mounting
The MySign
®
O must be set up / mounted as per the requirements at the place of use, on an
even surface or using the clamp MySign an universal holder for all profiles.
Fold out the support provided on the MySign
®
O
and set up the unit.

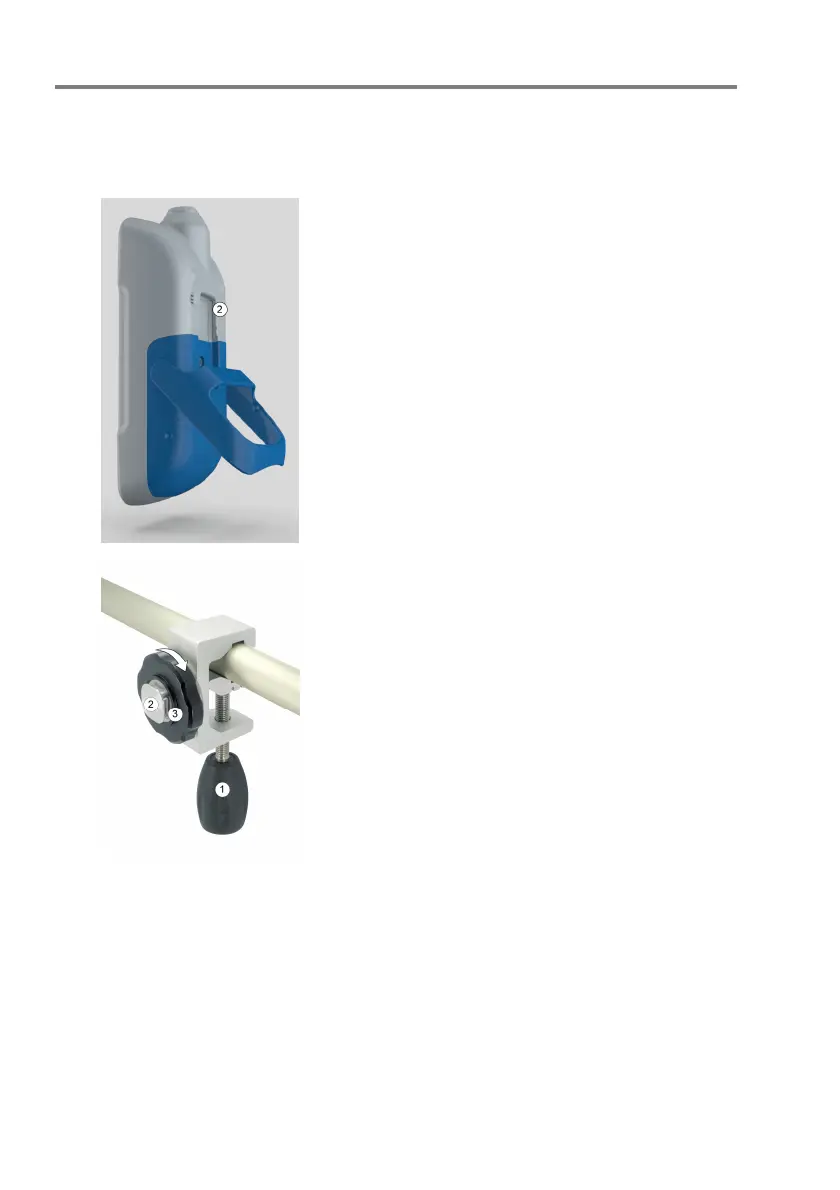

Hold the fixed tension arm against the bed frame,
for example, and attach the holder by turning the
threaded spindle c in a clockwise direction.
Now insert the clamp's (Part No. 1001801)
mounting plate into the guide d on the back of the
MySign
®
O and fasten by turning the hand wheel
e in a clockwise direction.
