Periphery components for ESSER FACP
TI 798960.GB0 / 04.20 13
Smoke detector
Heat detector
with identification
"black ring"
OTG multisensor detector
with identification
"gold ring"

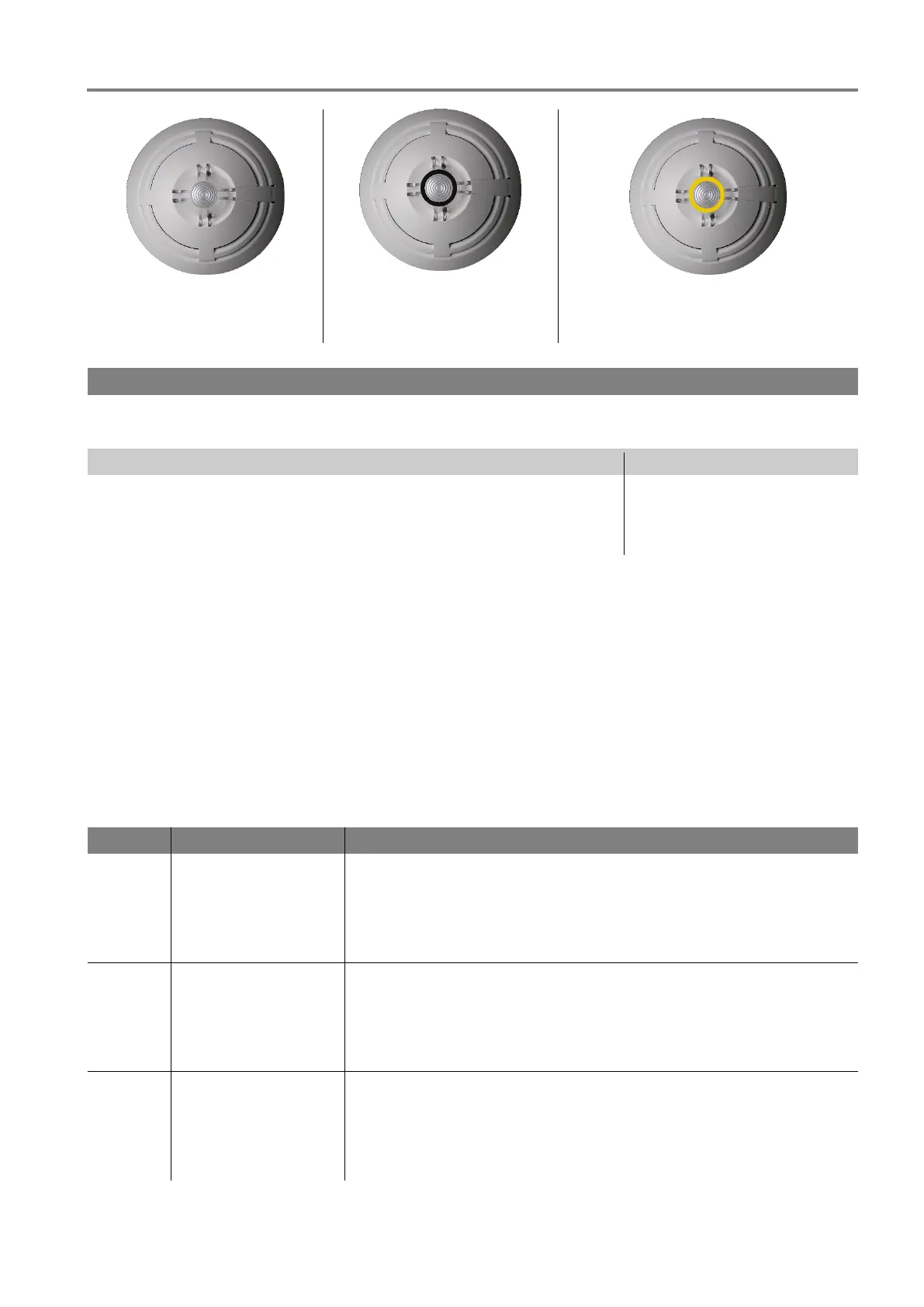

Fig. 2: Example Alarm identification of IQ8Quad fire detectors
General detector specifications
*3
Operating voltage
:
8 V DC ... 42 V DC
Operating voltage (EN 54-17)
:
14 V DC ... 42 V DC
Type of sensor
Heat
*1
Smoke
*2
Monitoring area
:
max. 30 m²
max. 110 m²
Monitoring height
:
max. 7.5 m
max. 12 m
Air speed
:
---
0 ... 25.4 m/s
Alarm display
red LED, flashing
Storage temperature
:
-25 °C ... +75 °C
Humidity
:
≤ 95% rel. humidity (non-condensing)
IP rating:
:
IP 40 with base
IP 42 with base + option 805570
IP 43 with base + option 805572.50 / 805573
Material
:
ABS
Colour
:
white (similar to RAL 9010)
Weight
:
approx. 110 g
Dimensions (with base)
:
Ø 117 mm, H = 62 mm
Part No. Detector type Specific detector specifications
*3
802171
*1
Fixed heat detector
Quiescent current @ 19 V DC : 40 µA
Quiescent current @ FACP
battery
: 0.16 mA @ 27.5 V/0.22 mA @ 42V
Usage temperature : -20 °C ... +50 °C
Specification : EN 54-5 A1S / -17:2005
VdS approval : G 204058
Declaration of Performance : DoP-20102130701
802177
*1
Fixed heat detector
Quiescent current @ 19 V DC : 40 µA
Quiescent current @ FACP
battery
: 0.16 mA @ 27.5 V/0.22 mA @ 42V
Usage temperature : -20 °C ... +65 °C
Specification : EN 54-5 BS / -17:2005
VdS approval : G 208057
Declaration of Performance : DoP-20411130701
802271
*1
Rate-of-rise heat
detector
Quiescent current @ 19 V DC : 40 µA
Quiescent current @ FACP
battery
: 0.16 mA @ 27.5 V/0.22 mA @ 42 V
Usage temperature : -20 °C ... +50 °C
Specification : EN 54-5 A1R / -17:2005
VdS approval : G 204059
Declaration of Performance : DoP-20103130701
