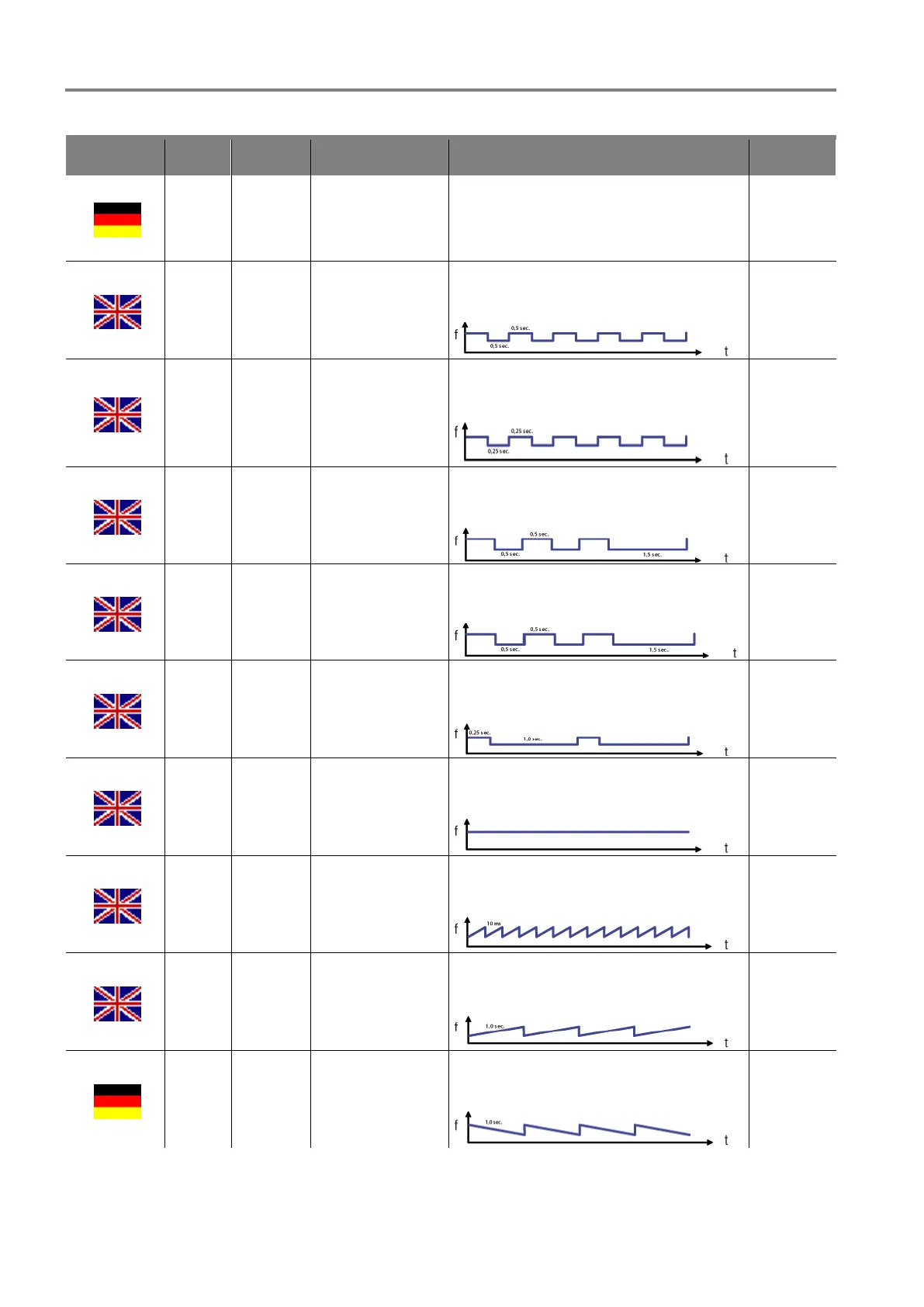

10.4.1 Acoustic signals
Area of use No*.
tools
8000**
Signal
component
Signal description
Duration(s)
1 0 School bell
School bell
Complex signal sequence
1.00
2 1 Tone 1 (GB)
FP 1063.1 Telecoms BS 5839 Pt1-Tone 1
Alternating signal tone,
frequency 800/970 Hz @ 2 Hz 4.00
3 2 Tone 2 (GB)
FP 1063.1 Telecoms BS 5839 Pt1-Tone 2
Alternating signal tone,
frequency 800/970 Hz @ 1 Hz
4.00
4 3 Tone 3 (GB)
FP 1063.1 Telecoms BS 5839 Pt1-Tone 3
Cyclic signal tone,
frequency 970 Hz @ 1 Hz
4.00
5 4 Tone 4 (GB)
FP 1063.1 Telecoms BS 5839 Pt1-Tone 4
Cyclic signal tone,
frequency 2850 Hz @ 1 Hz
4.00
6 5 Tone 5 (GB)
FP 1063.1 Telecoms BS 5839 Pt1-Tone 5
Cyclic signal tone,
frequency 970 Hz 3.75
7 6 Tone 6 (GB)
FP 1063.1 Telecoms BS 5839 Pt1-Tone 6
Continuous signal tone,
frequency 970 Hz 4.00
8 7 Tone 7 (GB)
FP 1063.1 Telecoms BS 5839 Pt1-Tone 7
Rising signal tone,
frequency 800 ... 970 Hz @ 7 Hz 4.00
9 8 Tone 8 (GB)
FP 1063.1 Telecoms BS 5839 Pt1-Tone 8
Rising signal tone,
frequency 800 ... 970 Hz @ 1 Hz 4,00
10 9 DIN Tone
DIN Ton gem. DIN 33404-3
Alternating signal tone,
frequency 1200 ... 500 Hz @ 1 Hz 4,00
* No. according VdS Certificate
**Signal reference according tools 8000 Software
