Honeywell Excel 800

Excel 800 LION
EN1B-0375GE51 R0308
26
LonWorks Bus I/O Modules in Separate Rooms
In this scenario, only communication lines must be
connected between the rooms.
► Connect the last module of room 1 to the first module of
room 2:
– via communication terminals 71, 72 or 75, 76
CLLIONLC01
1 2
71
72
73
74
ROOM 2
ROOM 1
LION LonWorks
I/O MODULE
LION LonWorks
I/O MODULE
73
74
LION LonWorks
I/O MODULE
LION LonWorks
I/O MODULE
LION LonWorks
I/O MODULE
78
75
76
77
78
75
76
77

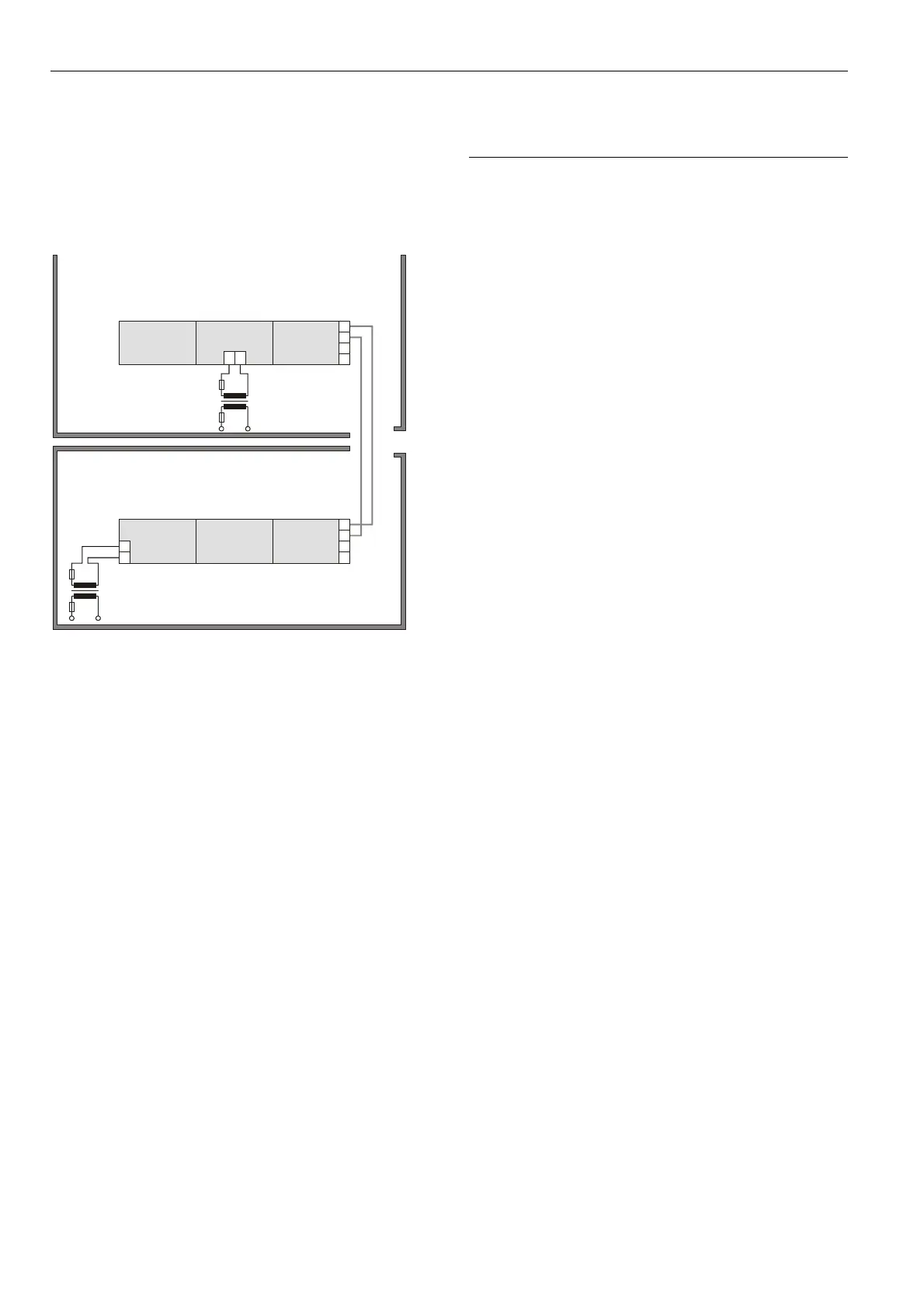

Fig. 34 Wiring the L ON W ORKS Bus I/O modules in
separate rooms
Maximum Cable Length
For maximum cable lengths and cable specifications of the
communication lines, see Table 18 and Table 19 on
page 14.
Connecting Panel Bus and L ON W ORKS Bus
Mixed Controller Systems
I/O Modules with Each Other
For connecting the I/O modules with each other, proceed as
described for single bus controller systems on page 24.
I/O Modules to the Controller
Panel Bus I/O Modules
► Connect communication terminals 71 …74 or 75… 78 of
Panel Bus I/O modules to communication terminals
71 …74 or 75… 78 of the controller module using either
– Bridge connectors
for flush mounting on a single DIN rail or
– Cables
for separate mounting,
e.g., on multiple rails, separate cabinets, etc.
L ON W ORKS Bus I/O Modules
► Connect communication terminals 71 … 74 or 75 … 78 of
L ON W ORKS Bus I/O modules to L ON W ORKS terminals
11 … 14 of the controller module using cables.
