Technical Data
Input type
Dry-contact or open collector
Current rating (closed
input)
2 mA
Open contact voltage
16…22 VDC
Protection
Protected against failure
voltage (24 VAC, 40 VDC)
Status LEDs
Using CARE, the status LEDs can be configured individually
for use as either alarm LEDs (red/green) or as status LEDs
(yellow/OFF [default]).
Given a state of "logical ON," the LED will be lit (yellow or
red).
Configuration as Fast Totalizer
Using CARE, the binary inputs can be configured as fast
totalizers for operation in conjunction with devices equipped
with an open collector output.
Frequency
max. 20 Hz
Pulse ON
min. 25 ms
Pulse OFF
min. 25 ms
Bounce
max. 5 ms
Table 51 Binary inputs used as fast totalizers

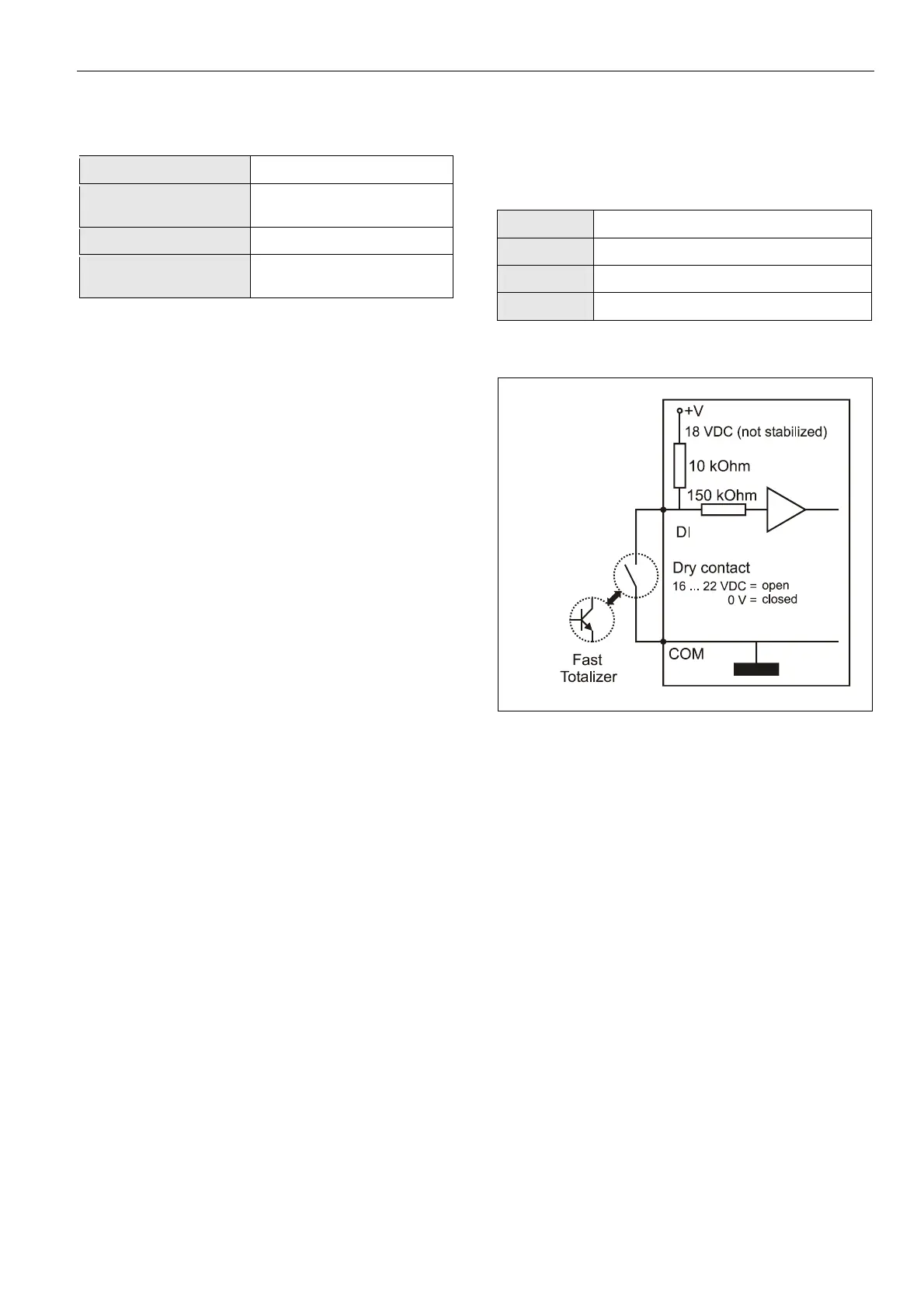

Fig. 71 Configuration of binary input as fast totalizer
