Excel 800 LION
EN1B-0375GE51 R0308
54
Terminals
31 41 51 61
32
42
52 62
33 43 53 63
34 44 54 64
NO
NC
COM
CON
NO
NC
COM
CON
11
12
13
14
21
22
23
24
25
NO
NC
COM
CON
NO
NC
COM
CON
NO
NC
COM
CON
NO
NC
COM
CON
Relay block 2
74
78
73 77
72 76
71 75
24
V~
24
V~
24
V~0
24
V~0
COM
B
COM
B
COM
A
COM
A
Cross connector (can be removed, as desired)
Relay block 1

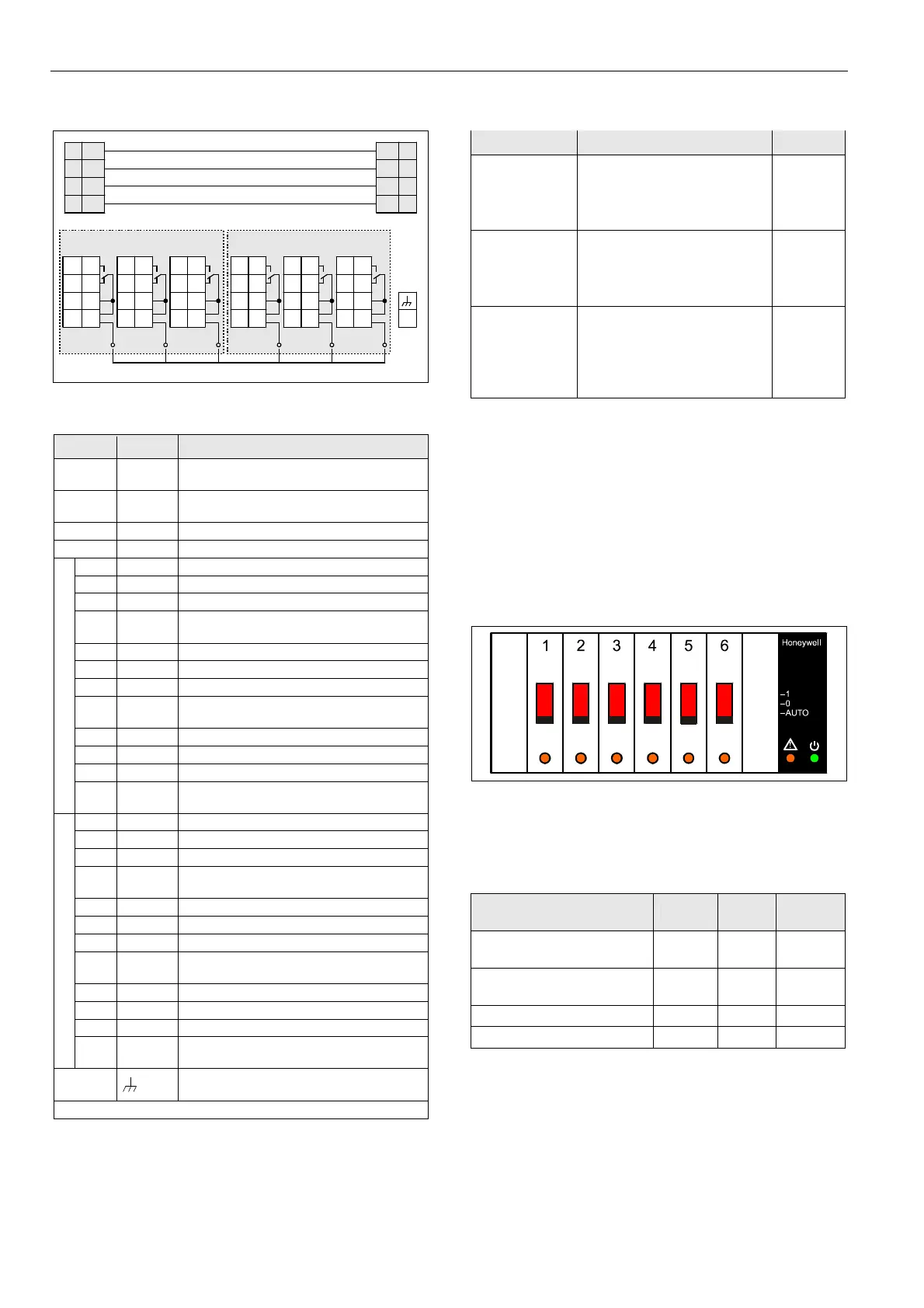

Fig. 74 Terminal assignment and internal connections of
relay output modules
Terminal
Signal Comment
71, 75
COM a
2-wire communication bus
(LON/Panel Bus)
72, 76
COM b
2-wire communication bus
(LON/Panel Bus)
73, 77
24 V~
Power supply
74, 78
24 V~0
Power supply
11
REL1 N.O.
Relay 1 N.O. contact
12
REL1 N.C.
Relay 1 N.C. contact
13
R1 COM
relay 1 common contact
14
R1 COM
For connection of relay 1 common via
cross connector*
21
REL2 N.O.
Relay 2 N.O. contact
22
REL2 N.C.
Relay 2 N.C. contact
23
R2 COM
Relay 2 common contact
24
R2 COM
For connection of relay 2 common via
cross connector*
31
REL3 N.O.
Relay 3 N.O. contact
32
REL3 N.C.
Relay 3 N.C. contact
33
R3 COM
Relay 3 common contact
RELAY BLOCK 1
34
R3 COM
For connection of relay 3 common via
cross connector*
41
REL4 N.O.
Relay 4 N.O. contact
42
REL4 N.C.
Relay 4 N.C. contact
43
R4 COM
Relay 4 common contact
44
R4 COM
For connection of relay 4 common via
cross connector*
51
REL5 N.O.
Relay 5 N.O. contact
52
REL5 N.C.
Relay 5 N.C. contact
53
R5 COM
Relay 5 common contact
54
R5 COM
For connection of relay 5 common via
cross connector*
61
REL6 N.O.
Relay 6 N.O. contact
62
REL6 N.C.
Relay 6 N.C. contact
63
R6 COM
Relay 6 common contact
RELAY BLOCK 2
64
R6 COM
For connection of relay 6 common via
cross connector*
25
Shield connection (functional earth),
internally connected to the DIN rail
* Do not connect by wire!
Table 53 Description of relay output module terminals
Permissible Loads
Max. load Min. load
Per relay
output
module (total)
19…250 VAC
current at cos φ ≥ 0.6: 12 A
1…29 VDC
12 A resistive, 3 A inductive
–
Per normally
open contact
19…250 VAC
current at cos φ ≥ 0.6: 4 A
1…29 VDC
4 A resistive, 1 A inductive
50 mW
Per normally
closed
contact
19…250 VAC
current at cos φ ≥ 0.95: 2 A,
current at cos φ ≥ 0.6: 1 A
1…29 VDC
4 A resistive, 1 A inductive
50 mW
Table 54 Permissible loads of relay output modules
Notes
• In the case of voltages above 30 VAC/DC and if inductive
components are to be connected to relays switching
more often than once every 2 minutes, these com-
ponents must be prevented from causing harmful
interference to radio or television reception (conformance
with EN 55014).
• Max. voltage for UL 864-compliant applications is 24 V.
Status LEDs with Manual Overrides
Fig. 75 Manual overrides (sliding switches)
The …R824 Relay Output Modules are equipped with
manual overrides: one for each relay output. These sliding
switches can manually be set to either "auto" or "0" or "1".
Output status LEDs behavior and relay output behavior
Mode LED
N.O.*
(direct)
N.C.*
(reverse)
Automatic mode, state
“logical ON”
ON ON OFF
Automatic mode, state
“logical OFF”
OFF OFF ON
Override mode (setting “0”) Flashes OFF ON
Override mode (setting “1”) Flashes ON OFF
*As configured using CARE.
Table 55 Relay output status LED behavior
