Excel 800 LION
EN1B-0375GE51 R0308
32
Connecting via C-Bus
Via C-Bus an Excel 800 LION Controller can be connected
to other controller systems to form a network.
Connecting to the Controller
►
Connect the C-Bus to the CLLIONLC01 Controller
Module as follows:
– Input to C-Bus terminals 8 and 9
– Output to C-Bus terminals 5 and 6
– Do not connect the C-Bus to the cabinet earth or any
other earth ground points
Setting the C-Bus Termination Switch
►
Set the C-Bus termination switch S1 appropriately.

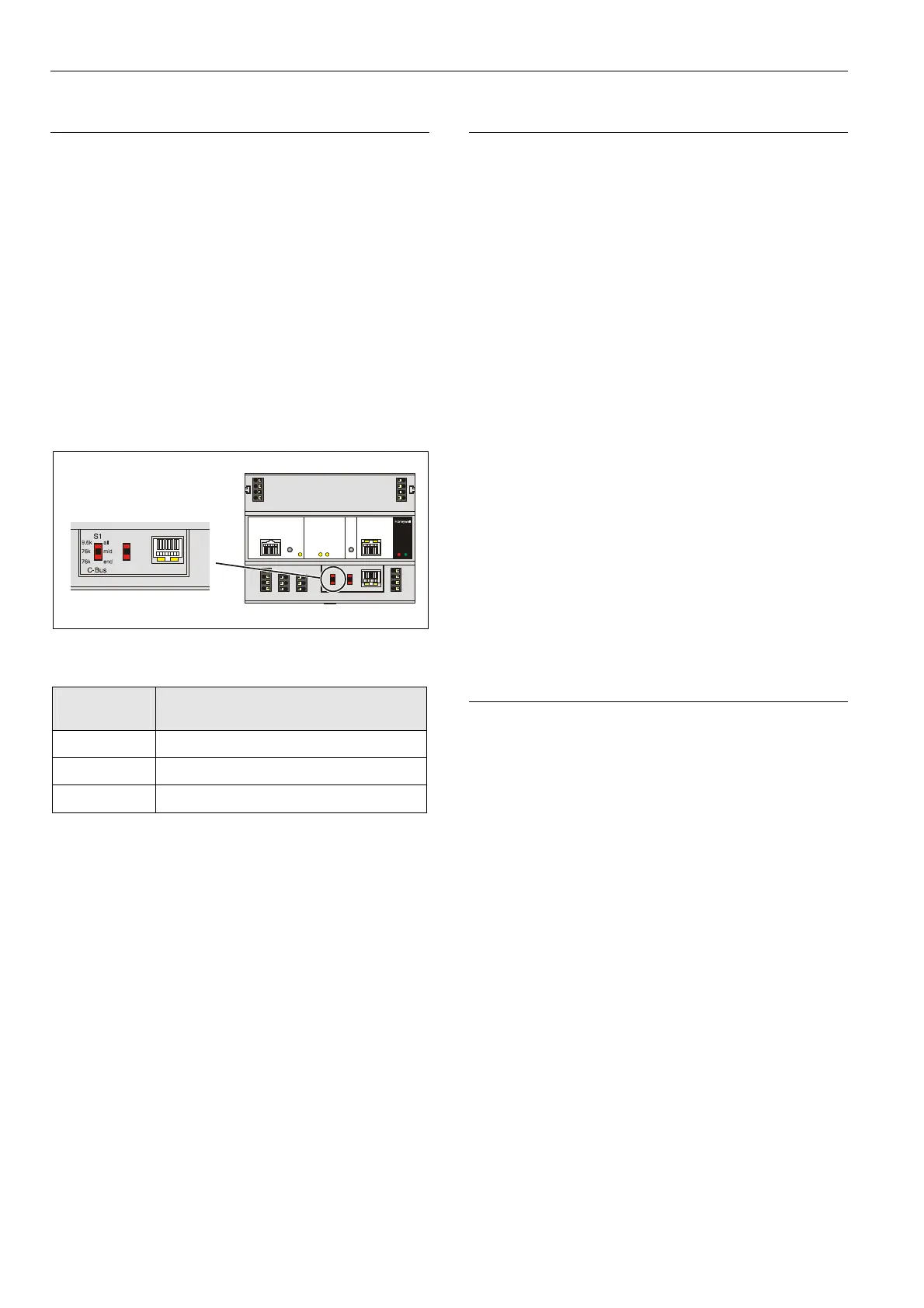

Fig. 44 C-Bus termination switch S1
Switch
setting S1
Baud rate
9.6k all
Up to 9600 baud (default setting)
76k mid Up to 76800 baud without bus termination
76k end Up to 76800 baud with bus termination
Table 26 CLLIONLC01
C-Bus termination switch settings
How to Shield
In principle, data transmitting cables should be shielded in
case of RFI.
►
On the controller side, connect the shield to terminals 7
and 10.
►
On the side of the device, connect the shield to the
respective terminals.
Do not connect it to the cabinet ground or any other
ground points.
Connecting HMIs or Laptops
Laptops or HMIs, e.g., XI582, can either be connected via
the HMI interface of the CLLIONLC01 Controller Module or
via the L
ON
W
ORKS
interface.
Connecting the XI582 Operator Interface
►
Connect the XI582 Operator Interface to the HMI
interface or L
ON
W
ORKS
interface of the CLLIONLC01
Controller Module by means of
– the XW882 cable or
– the XW582 cable connected with an XW586 cable.
For mounting details, refer to the XI582 Installation
Instructions (Product Literature no.: EN2B-0126GE51).
For cable details, refer to section "Preconfigured Connection
Cables" on page 12.
Connecting Laptops (XL-Online/CARE)
►
Connect a laptop (on which e.g., XL-Online or CARE has
been installed) to the HMI interface or L
ON
W
ORKS
interface of the CLLIONLC01
Controller Module by
means of
– the XW885 cable or
– the XW585 cable connected with an XW586 Cable.
For cable details, refer to section "Preconfigured Connection
Cables" on page 12.
Connecting Modems
An Excel 800 LION System can be connected to a modem
or an ISDN terminal adapter via the Modem Interface of the
CLLIONLC01
Controller Module by means of the XW786
cable.
►
Connect the RJ45 female connector of the XW586 cable
to the modem interface of the CLLIONLC01
Controller.
►
Connect the 9-pin sub-D connector to the modem.
For cable details, refer to section "Preconfigured Connection
Cables" on page 12.
Refer to Appendix 2 for details regarding remote
communication.
