Excel 800 LION
EN1B-0375GE51 R0308 8
Auxiliary Parts
Module Type Figure
Corresponding
I/O modules CLIO…
Information
XS812
…821
…822
…823
Module allows
disconnection of individual
I/O signals
Manual disconnect
modules
XS812RO
…824
…825
Module allows
disconnection of individual
I/O signals
For 24 V applications only
Auxiliary terminal
package
XS814
All Excel 800 LION I/O
modules
2 rows of 7 terminals
connected to each other for
redistributing voltage
Cross connectors,
short (yellow)
XS817
…824
…825
Connects 3 relay commons,
required in case of line
voltage and low voltage in
the same I/O module

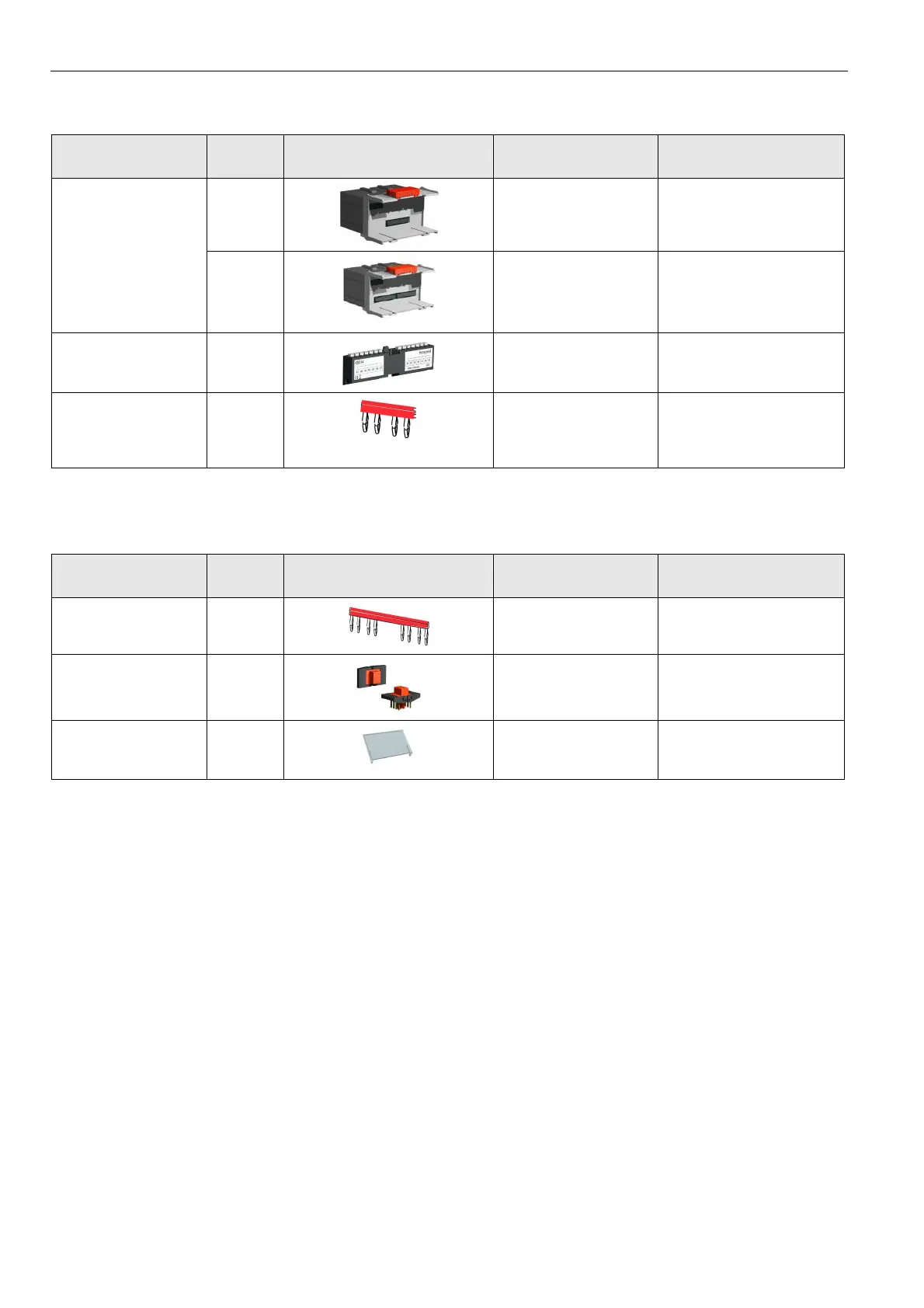

Table 5 Auxiliary parts
Spare Parts
Module Type Figure
Corresponding
I/O modules CLIO…
Information
Cross connectors, long
(red)
XS815
…824
…825
Connects 6 relay commons
Connector bridge XS816
All Excel 800 LION I/O
modules
Connects CLLIONLC01 and
I/O modules
Swivel label holder XAL10
All Excel 800 LION I/O
modules
Can be plugged into socket,
for attaching label
generated by CARE
Table 6 Spare parts
