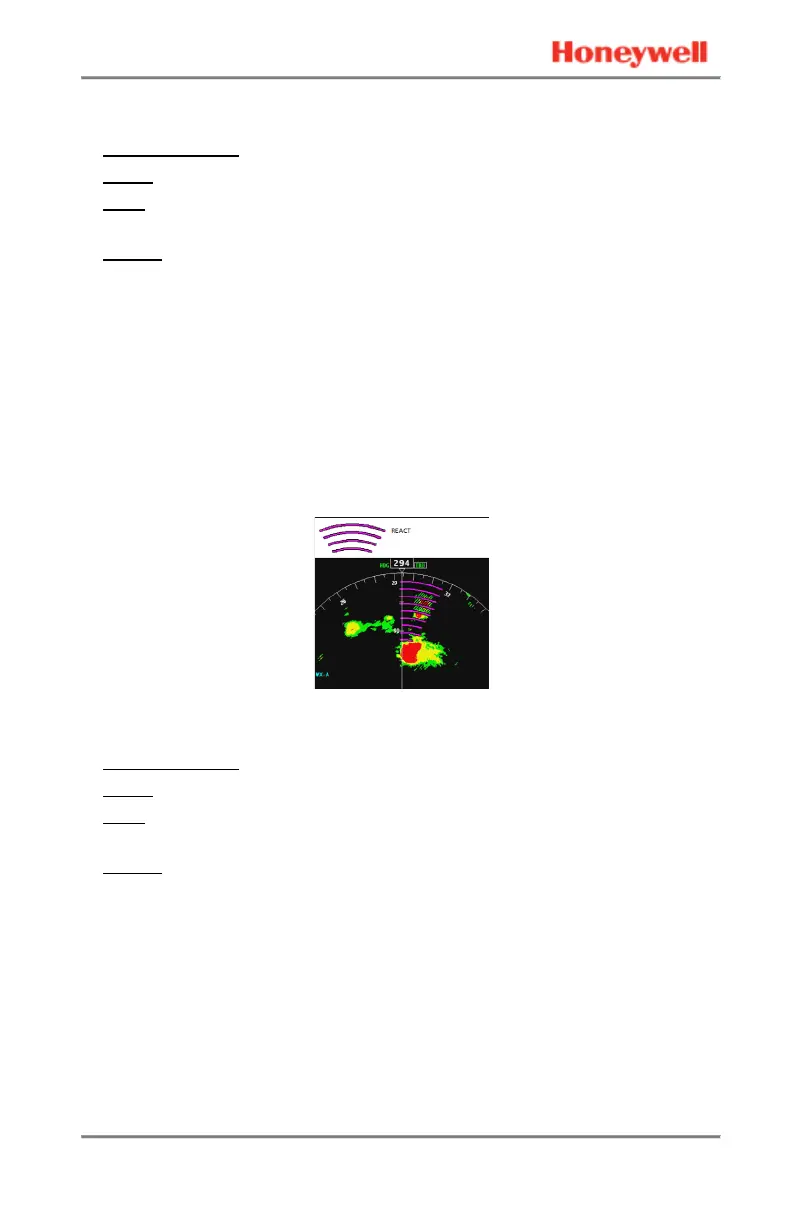

IntuVue RDR-4000 Weather Radar Pilot's Guide
060-4492-000 Simplified Operating Procedures
Rev 7, February 2015 9
CRUISE ABOVE FL200
System Control: L or R (dual system) or NORM (single system)
Mode: AUTO
Gain: CAL or as required to assess threats. (Refer to GAIN
CONTROL on page 27 for more details.)
Range: Pilot Flying 20 to 80 nm, other side at least one range
higher.
Within 60 nm sufficient resolution exists for evaluating cells. At these
ranges Flight Path and Secondary Weather will become more
prominent and MAN mode can be used for vertical analysis.
Avoid any magenta turbulence cells and monitor the display for
weather intensity to avoid any weather threats.
Avoid any cells associated with Hail or Lightning Icons.
In areas where the REACT field is shown, expect the possibility of
weather that may need to be avoided (see page 17).
See PLANNING A PATH on page 42 for more information.
DESCENT AND APPROACH
System Control: L or R (dual system) or NORM (single system)
Mode: AUTO
Gain: CAL or as required to assess threats. (Refer to GAIN
CONTROL on page 27 for more details.)
Range: Pilot Flying 10 to 40 nm, other side at least one range
higher.
Avoid any magenta turbulence cells and monitor the display for
weather intensity to avoid any weather threats.
Avoid any cells associated with Hail or Lightning Icons.
In areas where the REACT field is shown, expect the possibility of
weather that may need to be avoided (see page 17).
Start evaluating cells by 40 nm and finish by 20 nm.
Make your weather decision by the 20 nm point.
See PLANNING A PATH on page 42 for more information.
