IntuVue RDR-4000 Weather Radar Pilot's Guide
Principles of Weather Radar Use 060-4492-000
32 Rev 7, February 2015

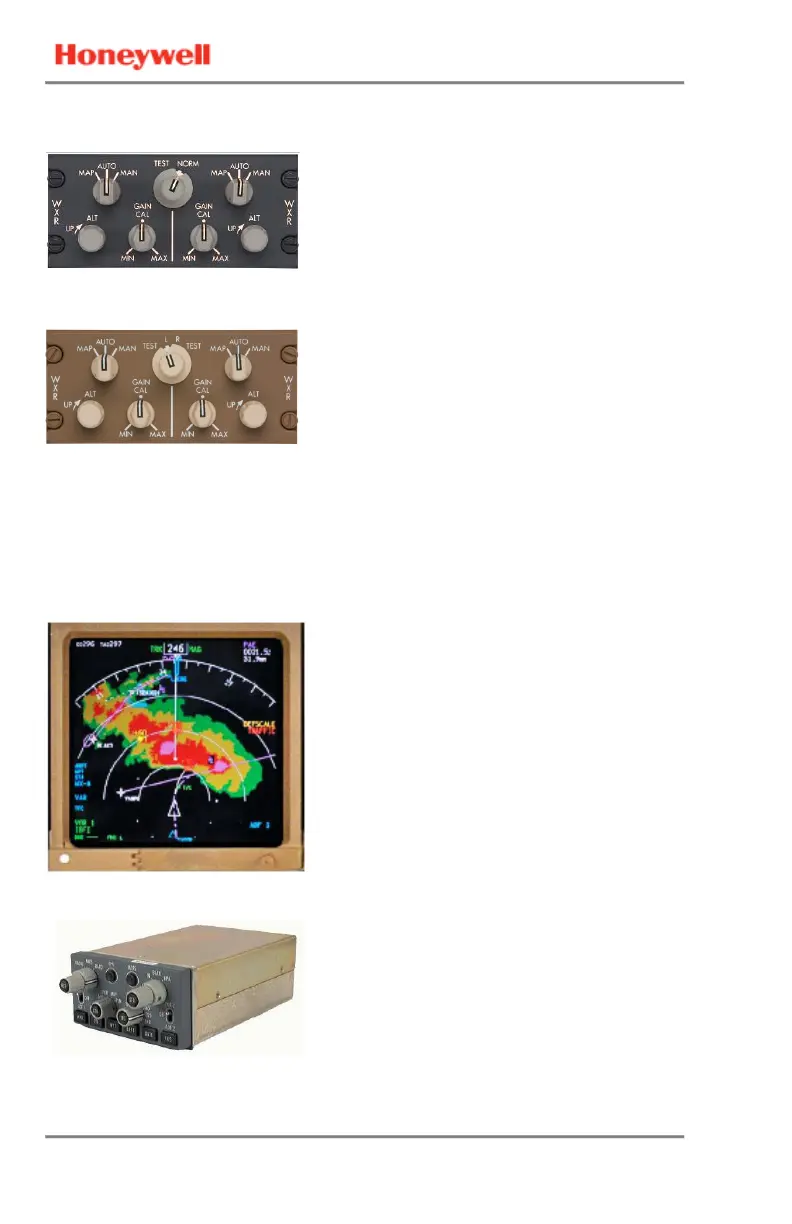

CP-1A/1B CONTROL PANELS
The CP-1A/1B contains all controls for
operating the radar system except those
located on display units or electronic
flight display control panels. The CP-1A
is used in a single system configuration
while the CP-1B is the dual system
control panel.
The RDR-4000 has the ability to show
two different radar display views
simultaneously. The left side of the
control panel controls the left side
display (Captain) and the right side of
the control panel controls the right side
display (First Officer). The flight crew
can operate each side independently
without impacting radar performance,
achieving maximum weather information
display.
ELECTRONIC FLIGHT DISPLAY
The Electronic Flight Display is not part
of the RDR-4000 system, but is where
the radar mode or status, weather
returns, windshear, turbulence, and
ground map data are displayed. This
picture is intended as an example only.
Your equipment may vary.
The Electronic Flight Display Control
Panel is not part of the RDR-4000
system, but is used to select Weather
Radar (WXR) for display. This picture is
intended as an example only. Your
equipment may vary.
CP-1A
CP-1B
