IntuVue RDR-4000 Weather Radar Pilot's Guide
Expanded Operating Instructions 060-4492-000
24 Rev 7, February 2015
WEATHER ANALYSIS
MANUAL WEATHER MODE

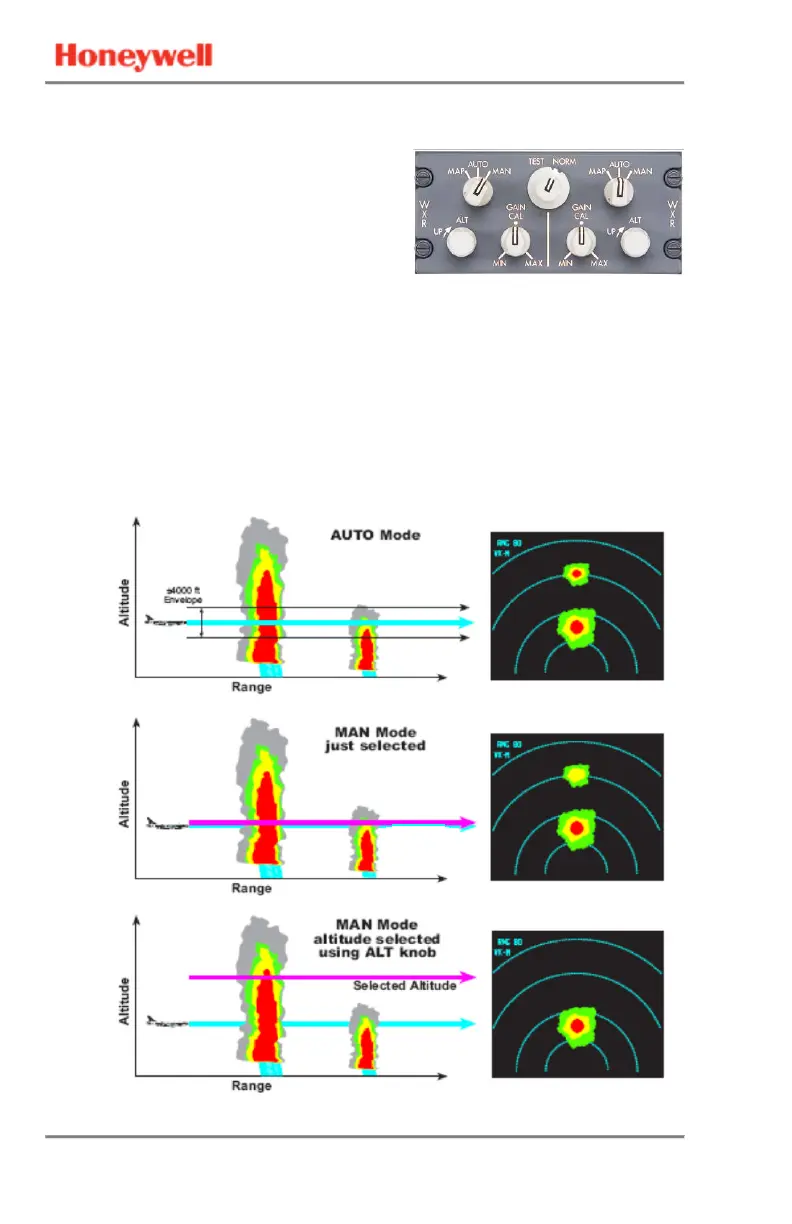

Manual Weather Mode provides a
means to assess storm cell height and
development by providing selectable
altitude slices. These slices from the
3D memory are corrected for the
curvature of the earth, providing a view at a constant MSL altitude level.
Selecting MAN on the mode selection knob enters the Manual Mode.
On initial selection, the altitude slice is set to the current aircraft altitude
(nearest 1,000 ft). The altitude (ALT) knob is used to select the desired
altitude slice from 0 to 60,000 ft MSL in 1,000-foot intervals. If the
Hazard Display features are installed, Hail and Lightning icons and
REACT fields will be displayed and detected turbulence will be shown
out to 60 nm, as appropriate to the selected altitude.
