Honeywell IQ8Control C

Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09 111

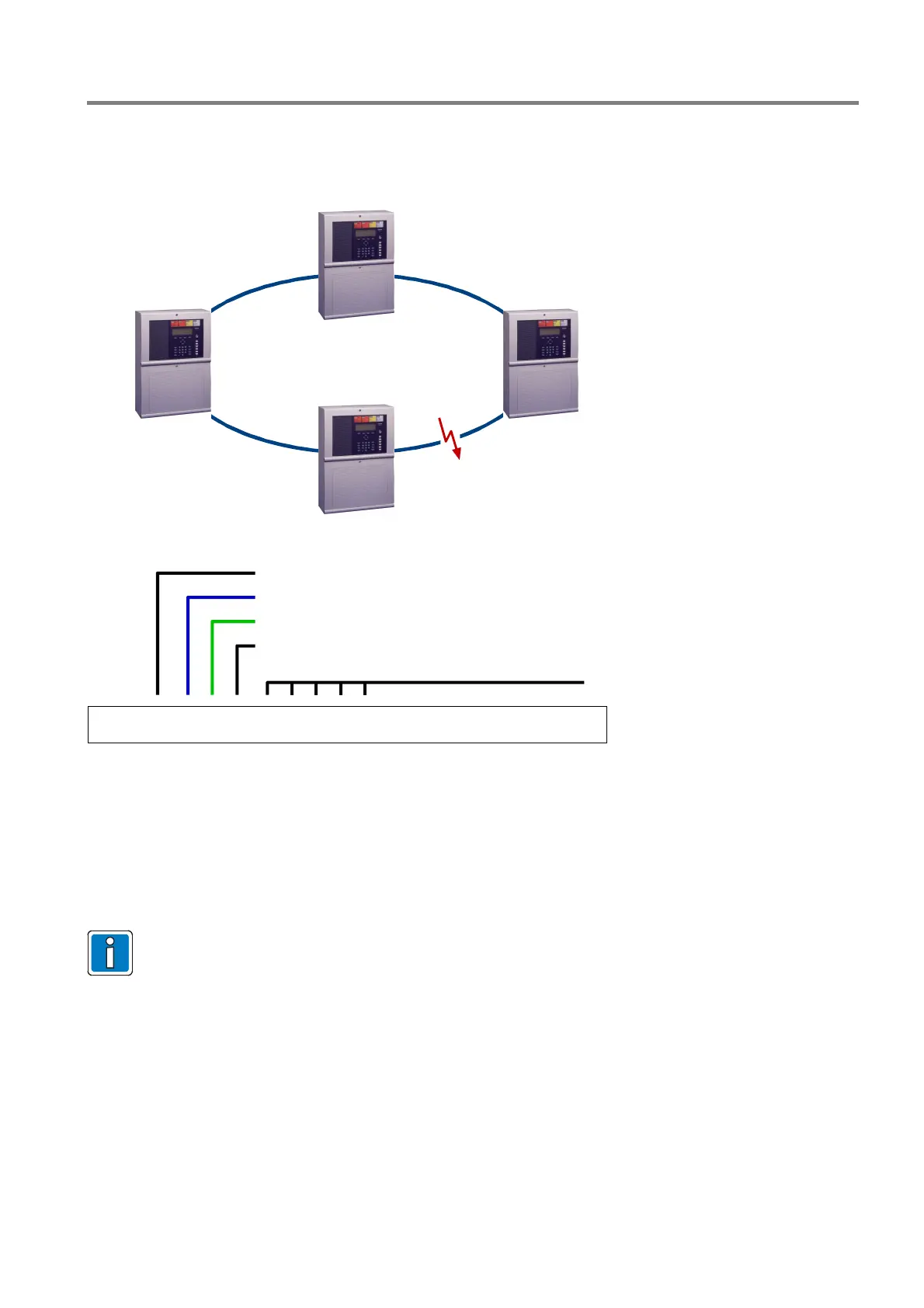

Example of essernet
®
diagnostic line with four Fire Alarm Control Panels
In the illustrated example, four Fire Alarm Control Panels are interconnected in the essernet
®
.
Panel No. 3
Panel No. 4 Panel No. 2
Panel No. 1
Trouble
essernet
®
L : 0 2 1 0 ???????????????????
control panel no.1
control panel no.2
control panel no.3
control panel no.4
control panel no. 5-31 non existant
Fig. 98: Example essernet
®
diagnostic line with four control panel
The connection between control panel No. 2 and No. 3 is faulty due to an open line, a short circuit or incorrect
wiring.
Panel no. 5 to 31 are displayed with the ?-sign, because the they are not programmed in the customer data.
During the display of the essernet
®
diagnostic line, status messages such as >MB switched off< or
>Acoustics switched off< are not shown in this line of the display.
