30 MagneW 3000

PLUS

Specification and Application Guide 1/98

1.2

max

1.9

3.3

2.79

2.83

190

7.5

3.9

110

4.3

3.3

3.8

100

3.9

Dimensions:

millimeters

inches

FOR REFERENCE ONLY

23459

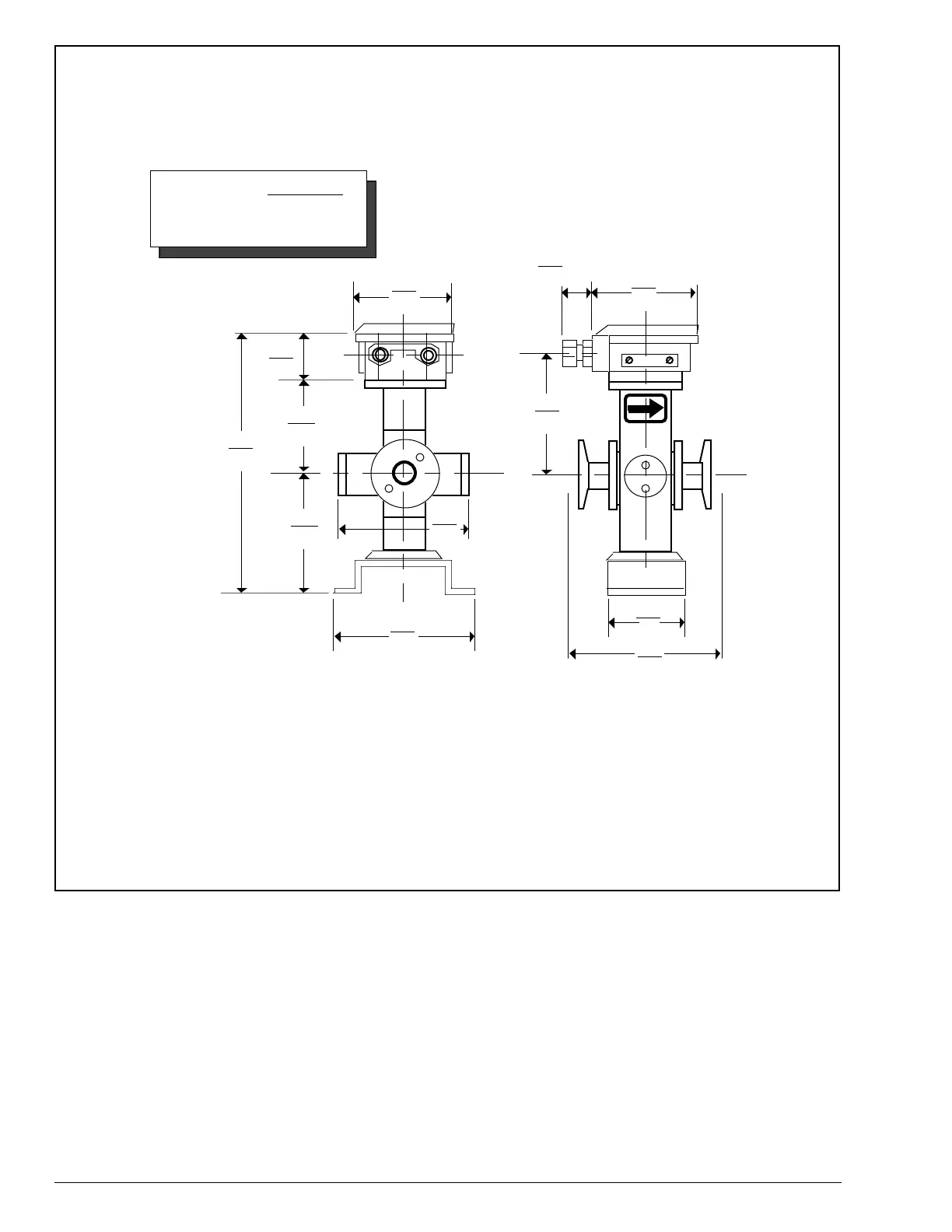

Figure 17—IDF/Tri-Clamp Dimensions – 2.5 mm to 15 mm (0.1 in. to 0.6 in.) Sizes

Default Chapter3
- Table of Contents3
Introduction7
Figure 1 Magnew 3000 PLUS Components7
Components7
Principle of Operation8
Hardware Configuration8
- Figure 2 Principle of Operation8
Features9
Detector9
Converter9
Operator Interface10
- Figure 3 Typical SFC Connection to the 4 to 20 Ma Loop10
- Figure 4 Typical SFC Prompts10
- Figure 5 Digital Operator Panel Display (Configured for % Flow Range)10
Figure 6 Magnew 3000 PLUS Communications Hierarchy for TPS11
Diagnostics11
Communications Summary11
Summary of Magnew 3000 Plus Features12
- Figure 7 Overview of Magnew 3000 PLUS Wiring Requirements13
- Electrical Connection Considerations14
- Terminal Connections15
Wiring Summary13
- Figure 8 Typical Wiring Connections for the Magnew 3000 PLUS Remote and Integral Flowmeters15
- Cabling for Remote Detector/Converter16
- Figure 9 Cable Length Versus Fluid Conductivity16
Ranging Function17
- Figure 10 Direct Direction, Automatic Dual Range Transfer Hysteresis17
- Figure 11 Direct/Reverse Transfer Hysteresis17
Selection of Corrosion Resistant Materials18
Application Data Worksheet19
Installation Planning Considerations20
- Environmental Conditions20
- Fluid to be Measured21
- Measured Liquid Flow Conditions21
- Detector Location in Piping22
- Clearance for Maintenance24
Specifications25
- Performance25
- Design25
- Environmental and Operating Conditions29
- Table 7 Minimum and Maximum Ranges30
Dimensions2531
- Figure 12 Wall Mounting Dimensions31
- Figure 13 2-Inch Pipe Mounting Dimensions32
- Figure 14 Dimensions for Integral Model-Refer to Table 833
- Figure 15 Union Joint Dimensions - 2.5 MM to 15 MM (0.1 In. to 0.6 In.)34
- Figure 16 Hose Joint Dimensions - 2.5 MM to 15 MM (0.1 In. to 0.6 In.)35
- Figure 17 Idf/Tri-Clamp Dimensions - 2.5 MM to 15 MM (0.1 In. to 0.6 In.)36
- Figure 18 Wafer Dimensions - 2.5 MM to 15 MM (0.1 In. to 0.6 In.) and 25 MM to37
- Table 8 Dimensions for Figures 14 and 1838
- Figure 19 Flange Dimensions - 25 MM (1 In.)39
- Figure 20 Flange Dimensions - 40 MM to 140 MM (1.6 In. to 3.9 In.) and 150 MM to 600 MM (5.9 In. to 23.6 In.)-Refer to Table 940
- Table 9 Dimensions for Figure 2041
Ordering Data and Special Instructions42
Model Selection Guides43
- Magnew 3000 PLUS Integral Converter and MGG18D Wafer Style Detector43
- Magnew 3000 PLUS Integral Converter and MGG18F Flange Style Detector48
- Magnew 3000 PLUS Remote Converter53
- Magnew 3000 PLUS Remote Detector Wafer Type, Size 2.5-200Mm62
- Magnew 3000 PLUS Remote Detector Flange Type, Size 25-600Mm65
- Magnew 3000 PLUS Submersible Remote Detector Flange Type72
- Size 25-600Mm72
- Magnew 3000 PLUS Cables76
